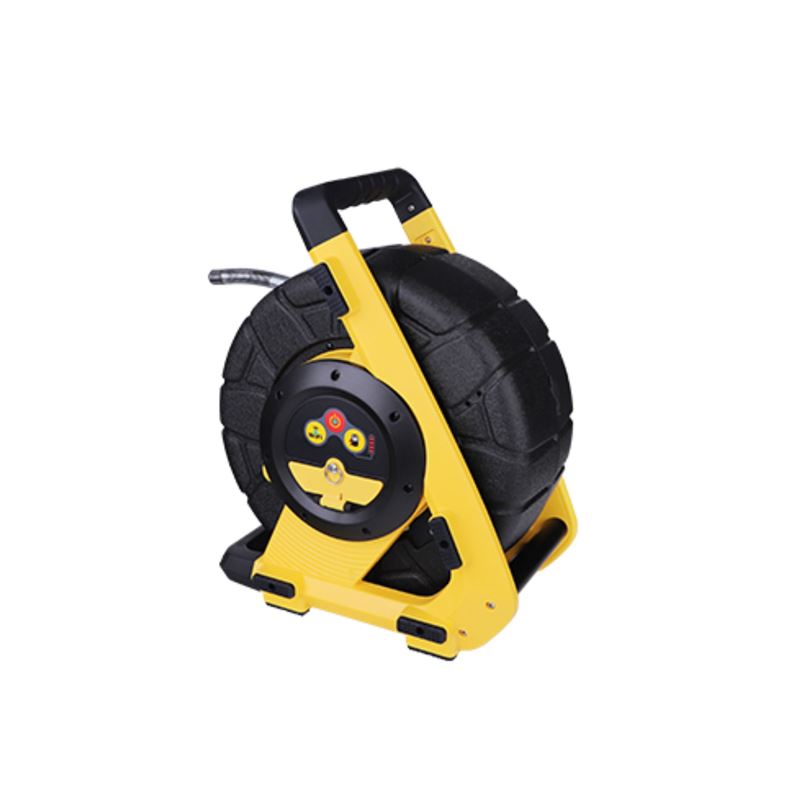

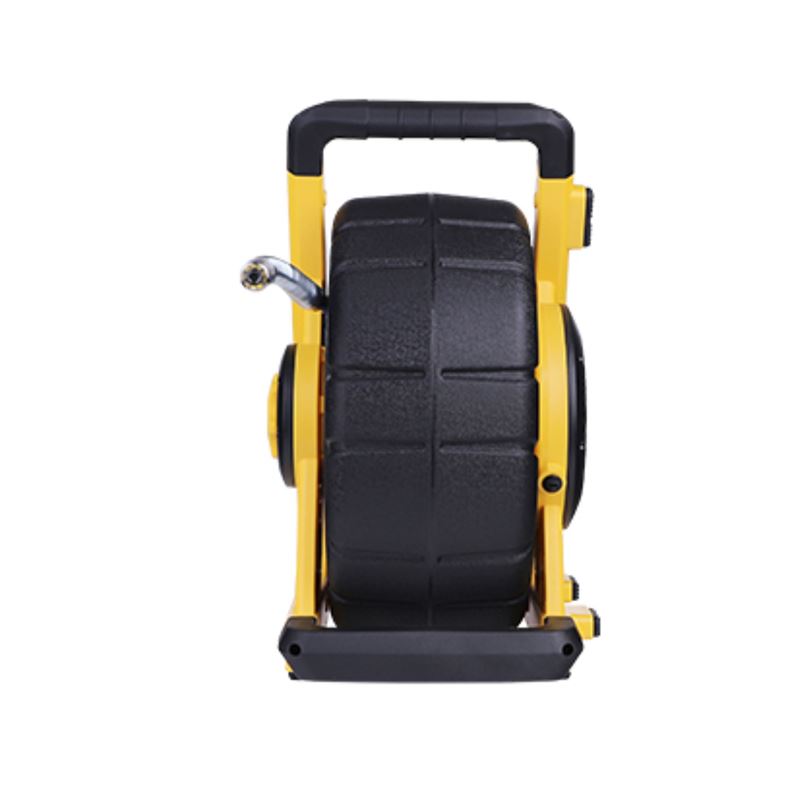

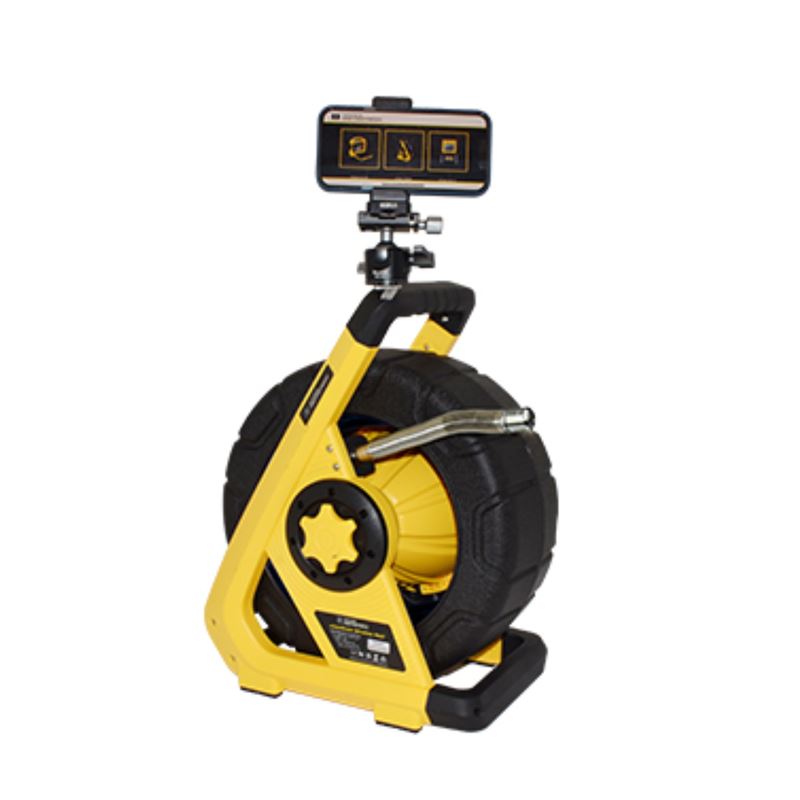

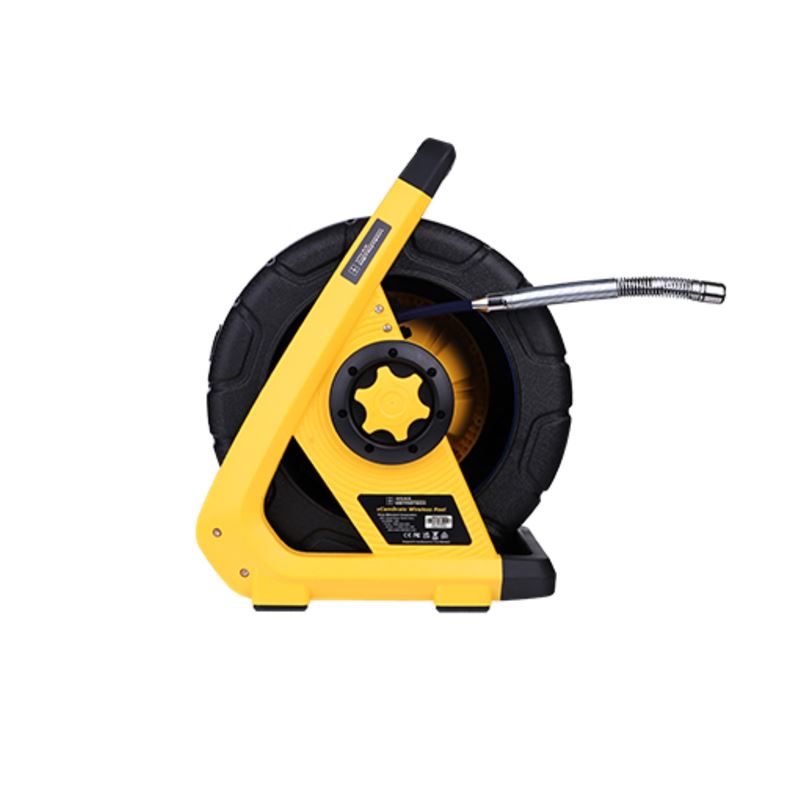

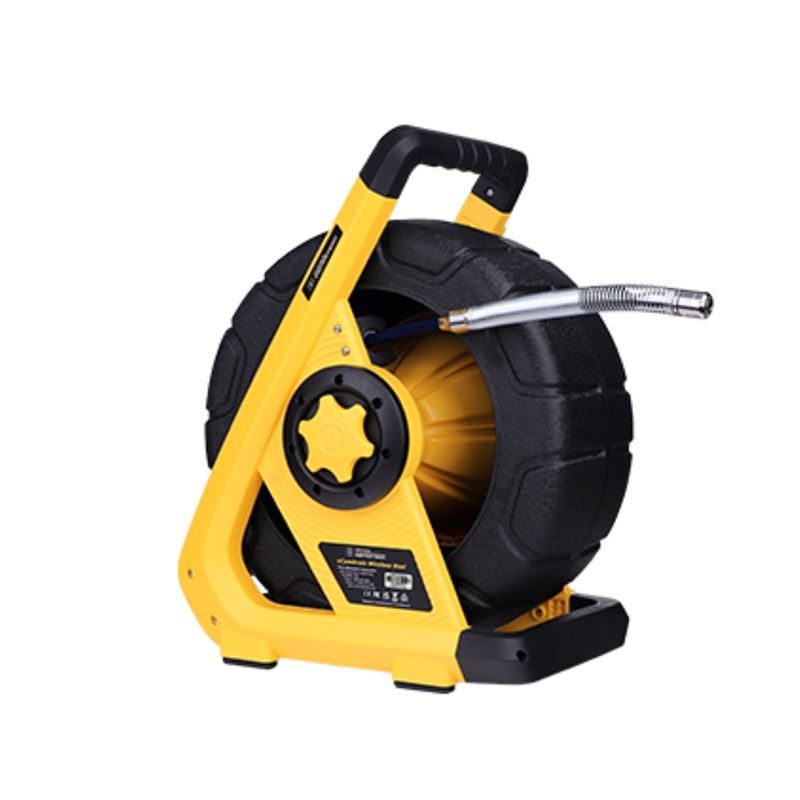

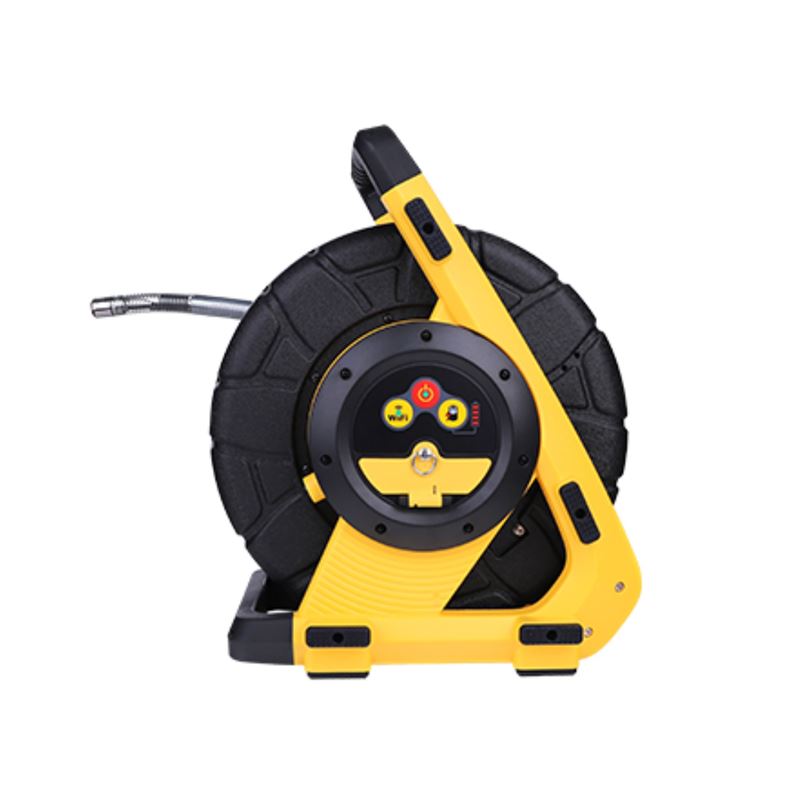

vCamDrain Wireless Drain Inspection Camera System
- Wireless HD drain camera system with app control
- Inspects 1.5"–3" pipes, including p-traps and toilets
- 18mm 1080p stainless camera with sapphire lens
- 12-hour battery life from 6-hour charge
- Record & share via VMC app or USB storage
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
The vCamDrain Wireless Inspection Camera System is the ultimate solution for UK drainage professionals needing fast, reliable pipe inspections in tight spaces. Designed by Vivax-Metrotech, this system features a robust 18mm HD stainless-steel camera head with a sapphire lens, offering crisp 1080p video and still image capture in drains as small as 1.5” (40mm).
Powered by a durable Li-ion battery, the vCamDrain delivers up to 12 hours of operation from just a 6-hour charge. Its custom 9mm pushrod offers optimal flexibility and strength, allowing smooth navigation through multiple bends, p-traps, and toilet traps. Drainage engineers can control all reel functions wirelessly via the vCam Mobile Controller (VMC) app, including camera LEDs, text overlays, sonde activation, and media recording.
The system supports MP4 and JPEG formats, with footage stored directly on the app or copied to USB. Integrated selectable sondes (512Hz, 640Hz, 33kHz) ensure accurate camera head locating up to 3m. Built to IP65 standards and housed in high-impact ABS plastic, the vCamDrain is tough enough for everyday field use.
With field-serviceable parts, popular accessories, and optional upgrades, the vCamDrain sets the benchmark for professional pipe inspection. Backed by Vivax-Metrotech’s UK-based support, it’s a reliable choice for drain surveyors, plumbers, and civil contractors alike.
| Attribute | Value |
| Camera Head | 18mm D18-HD, fixed, 1080p HD, sapphire lens |
| Camera Lighting | 48 Lumens LED |
| Pushrod Length | 21m or 30m (70ft or 100ft) |
| Pushrod Diameter | 9mm with HDPE jacket |
| Bend Radius | 75mm (3") |
| Weight | 6.8kg (70ft) / 7.7kg (100ft) |
| Battery Life | 12 hours intermittent use |
| Charge Time | 6 hours |
| File Formats | MP4 (video), JPEG (images) |
| Waterproof Rating | IP65 (Reel), 11 BAR (Camera Head) |
| Control Interface | vCam Mobile Controller App (VMC) |
| Sonde Frequencies | 512Hz, 640Hz, 33kHz (selectable) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Construction | ABS injection moulded housing |
| Warranty | 1 year (extendable) |
| Attribute | Value |
| Residential Drain Surveys | Inspect internal and external pipework in domestic properties |
| Plumbing Maintenance | Locate blockages and leaks in 40–75mm waste and soil pipes |
| Toilet & P-Trap Inspections | Navigate tight bends and traps in bathrooms and kitchens |
| Commercial Property Drainage | Ideal for maintenance teams and facilities management |
| Pre-Purchase Drain Reports | Generate clear HD visuals for homebuyer CCTV surveys |
| Insurance Claim Documentation | Record high-quality video for evidence in claims and reports |
| Civil & Utility Works | Used in groundworks to verify pipe condition and installation |
| Blocked Drain Diagnostics | Quickly identify root ingress, fractures, or collapsed lines |
