Vivax Type-MX Reel for Drain CCTV Pipe Inspections
- Durable stainless steel frame with carbon fibre drum
- Choose from D26-HD or D18-HD camera head
- 30m or 45m pushrod for flexible pipe access
- Built-in 3-frequency sonde for accurate locating
- USB, SD card and Wi-Fi video export options
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
The Vivax Type-MX Reel is a compact and high-performance pushrod reel engineered for professional drain, pipe, and sewer CCTV inspections. Featuring a durable stainless-steel frame and lightweight carbon fibre drum, this reel is ideal for demanding drainage environments across the UK.

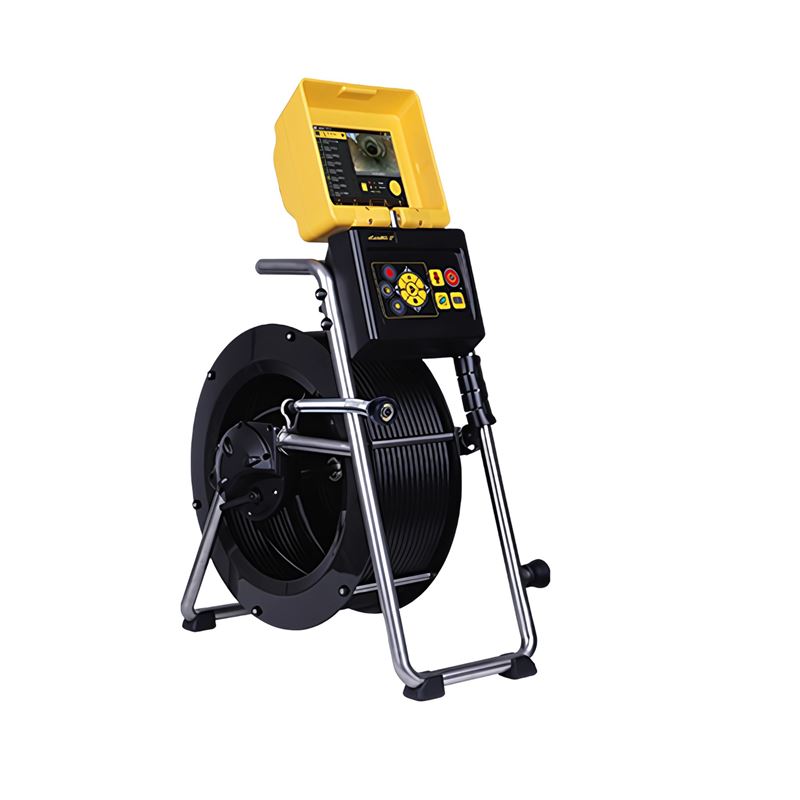

Designed for use with the Vivax vCamMX-2+ or vCam-6 control modules, the Type-MX Reel offers a choice of camera heads tailored to your needs — either the D26-HD self-levelling camera for clearer orientation in larger pipes or the D18-HD non-self-levelling camera for tighter access in smaller pipework. Both options deliver crisp HD imagery for accurate condition assessments.
Available in 30m or 45m pushrod lengths, the reel includes a built-in three-frequency sonde and a traceable pushrod, enabling precise pipe locating during CCTV drain surveys. The system also supports direct video export to USB and SD card, plus Wi-Fi compatibility via the VMC mobile app.
Water-resistant to IP65 and built to withstand rough handling, the Type-MX Reel is trusted by drainage engineers, utility contractors, and plumbers for reliable pipe and drain inspection results, whether diagnosing blockages or conducting routine maintenance.
| Attribute | Value |
| Pushrod Length Options | 30m (100ft) or 45m (150ft) |
| Pushrod Diameter | 10mm |
| Minimum Bend Radius | 75mm (3") |
| Construction | Stainless steel frame with carbon fibre drum |
| Sonde Frequencies | 33kHz, 512Hz, 640Hz |

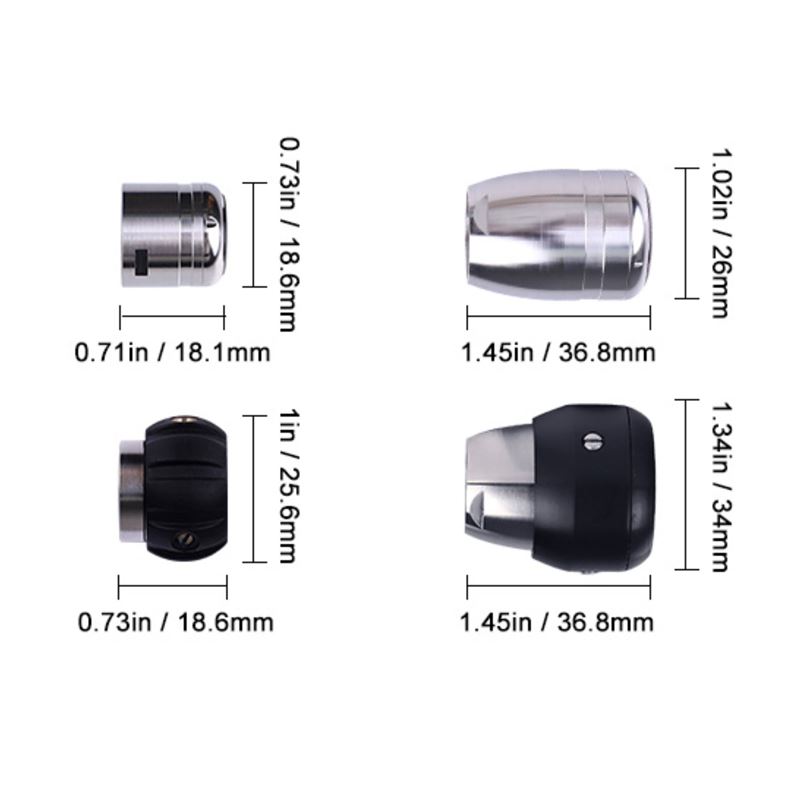

| Camera Compatibility | D26-HD (self-levelling) or D18-HD (non-levelling) |
| Pipe Diameter Range | 38mm to 100mm |
| Water Resistance Rating | IP65 |
| Weight | 14kg (30m) / 17kg (45m) |

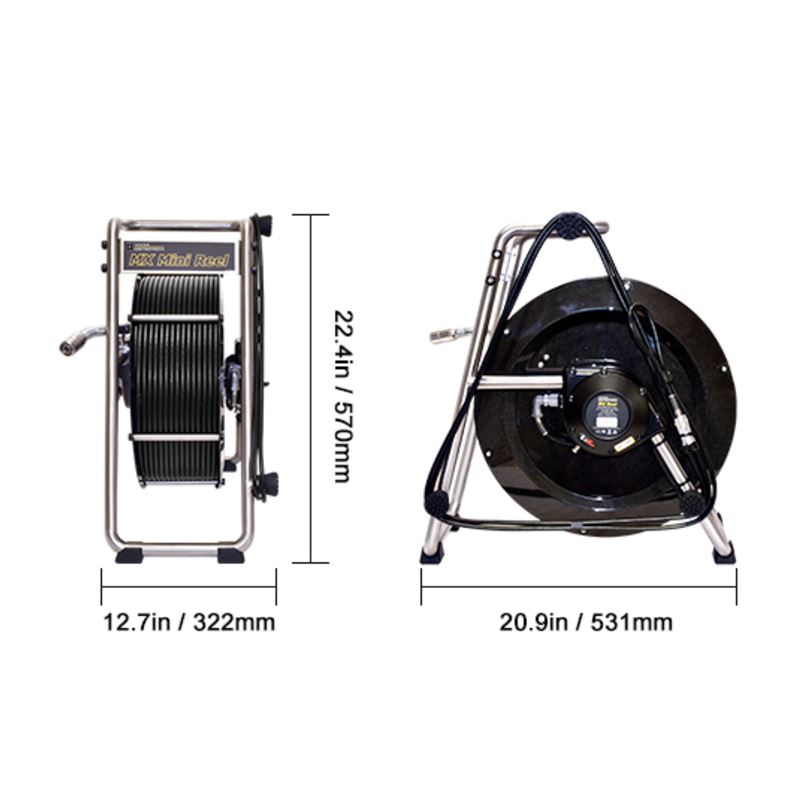

| Dimensions | 531mm (L) x 322mm (W) x 570mm (H) |
| Control Module Compatibility | vCamMX-2+ and vCam-6 |
| Connectivity | Mini USB, RCA, Wi-Fi (via VMC App) |
| Attribute | Value |
| Domestic Drainage | CCTV inspections of household pipes and drains (38–100mm) |
| Commercial Plumbing | Diagnosing blockages and structural issues in commercial pipework |
| Civil Engineering | Pre- and post-project pipe and duct condition surveys |
| Property Maintenance | Routine inspections and drain surveys for residential properties |
| Utility Contracting | Mapping, tracing, and locating buried drainage and sewer infrastructure |
