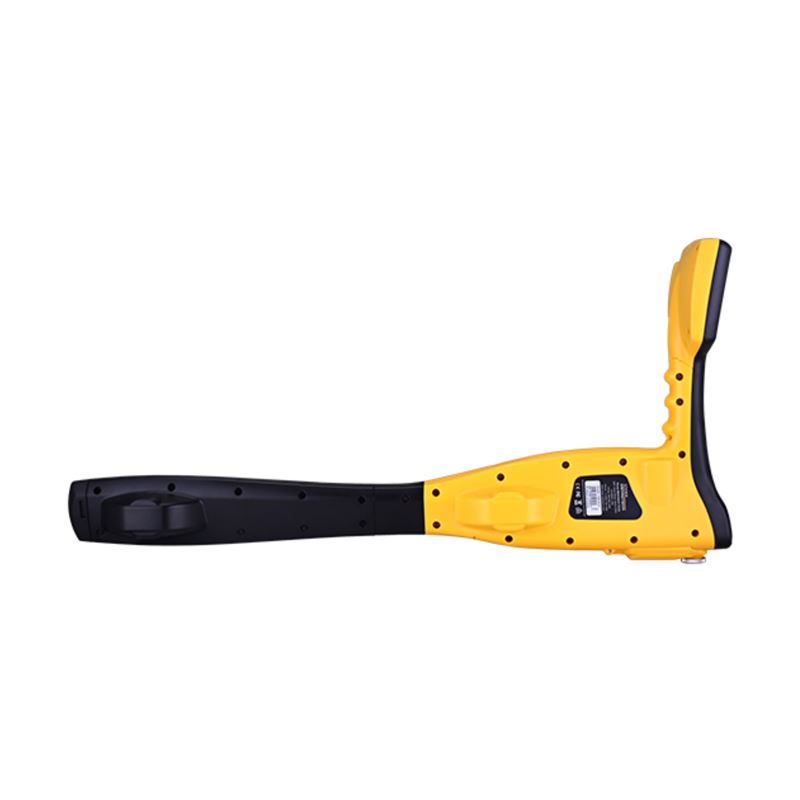

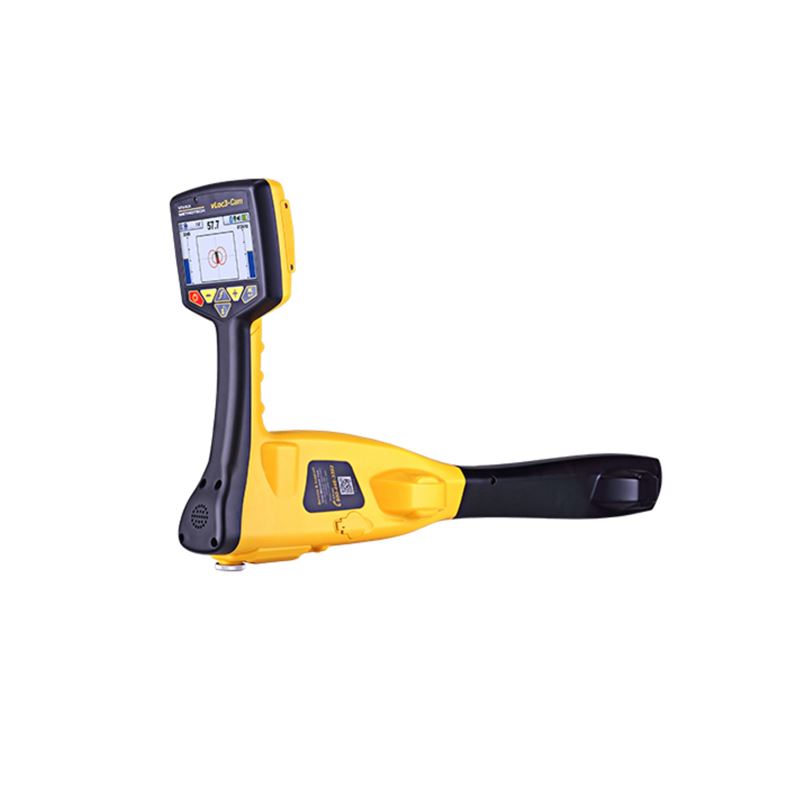

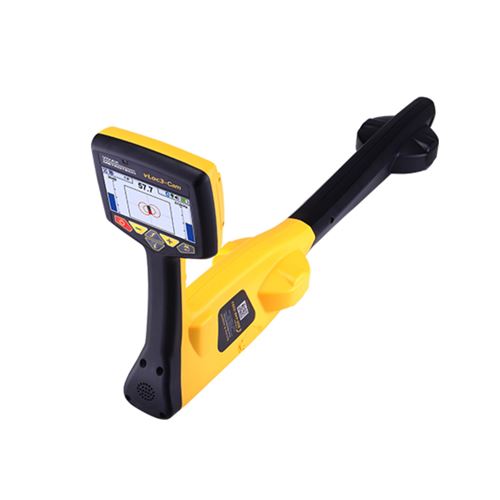

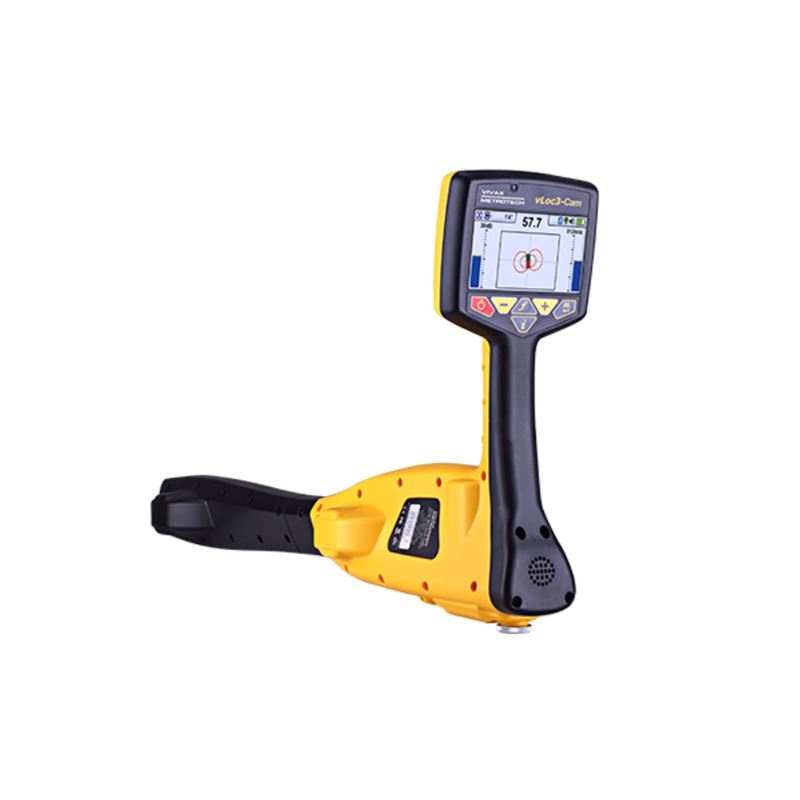

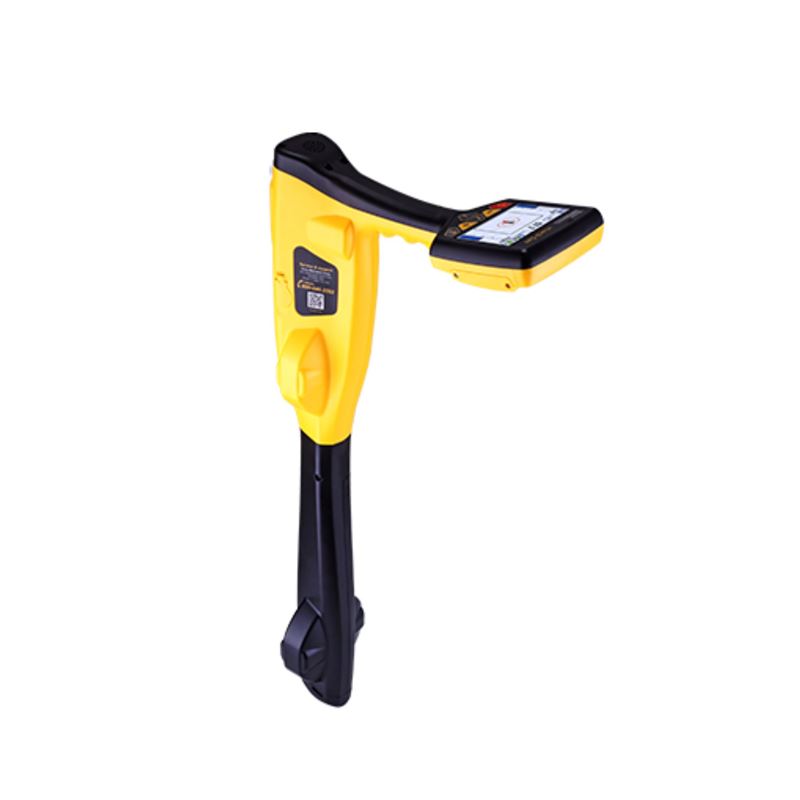

vLoc3-Cam Sonde Locator with 360° Guidance Display
- 360° directional guidance for pinpoint accuracy
- Sonde and pushrod trace modes built-in
- 4.3” high-visibility colour LCD display
- Compatible with major sonde frequencies
- Rugged IP65-rated lightweight design
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
The vLoc3-Cam Sonde Locator is the professional’s choice for accurate, fast and intuitive sonde and pushrod location. Designed for precision in complex environments, this advanced locator features a vibrant 4.3” colour display with 360° directional arrows, helping users quickly pinpoint buried sondes and utilities with unmatched ease.
Built for reliability, the vLoc3-Cam supports multiple sonde frequencies (512Hz, 640Hz, 8.19kHz, 9.82kHz, 32.8kHz, 83.1kHz), making it compatible with a wide range of push and crawler cameras. With Pushrod Trace mode and optional transmitter compatibility (32.8kHz and 83.1kHz), it easily tracks buried utilities, water and gas pipelines, and drop wires, even when direct connection isn't possible.
Constructed from high-impact ABS plastic and IP65/NEMA 4 rated, the unit is both rugged and weather-resistant, weighing only 2.1kg. The intuitive interface offers Classic and Sonde locate screens, optional Bluetooth and GPS modules, and USB data export for field logging and firmware updates.
Ideal for drainage engineers, utility contractors, and CCTV inspection teams, the vLoc3-Cam streamlines underground navigation with ultimate precision, whether you're locating sondes or tracing complex buried routes.
| Feature | Details |
| Construction | High-impact ABS injection-moulded housing |
| Weight | 2.1kg (4.6lbs) |
| Dimensions | 321mm (L) x 124mm (W) x 676mm (H) |
| Display | 4.3” (10cm) colour LCD, 480x272 resolution |
| Batteries | 6x AA Alkaline |
| Battery Life | 12h (alkaline) |
| Environmental | IP65 and NEMA 4 rated |
| Operating Temp. | -20°C to 50°C |
| Frequencies | Sonde: 512Hz–83.1kHz; Trace: 32.8kHz/83.1kHz |
| Accuracy | ±3%–5% of depth depending on signal strength |
| Connectors | Mini USB, Accessory Port, Bluetooth Module Port |
| Compliance |
CE, FCC Part 15, EN, ETSI standards |
| Application Area | Typical Use |
| Drainage & Plumbing | Locating sondes in non-metallic pipe surveys |
| Utility Contracting | Tracing underground electric/gas/water routes |
| CCTV Pipe Inspections | Compatible with push and crawler camera sondes |
| Construction & Civils | Mapping underground utilities on site |
| Municipal Services |
Identifying live power, CATV and telecom cables |

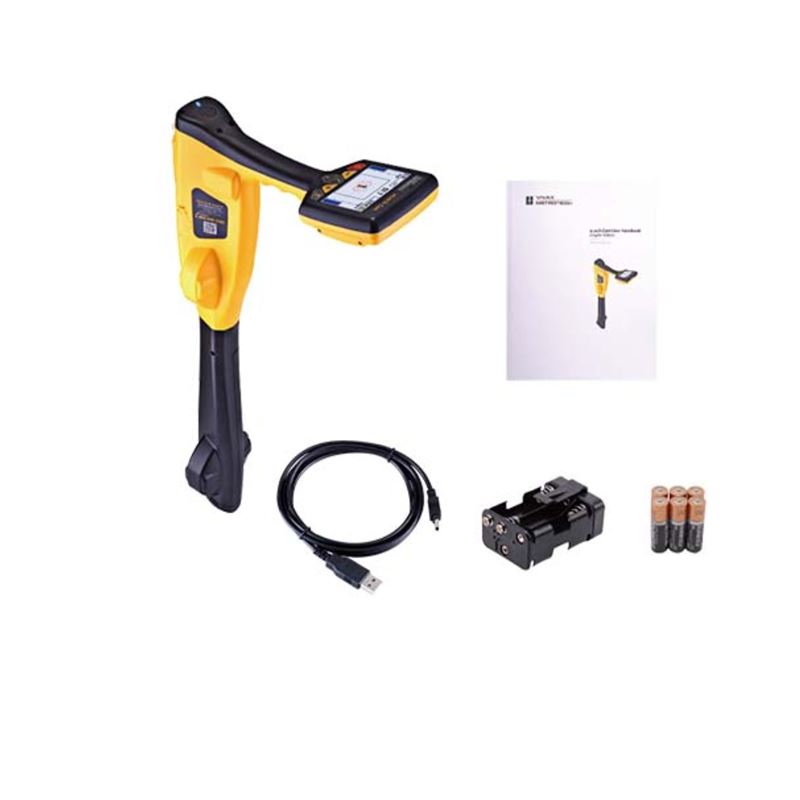

What’s in the Box
- vLoc3-Cam Receiver
- Mini USB cable
- 6 x AA Alkaline Batteries
- AA Battery Holder
- User Manual
