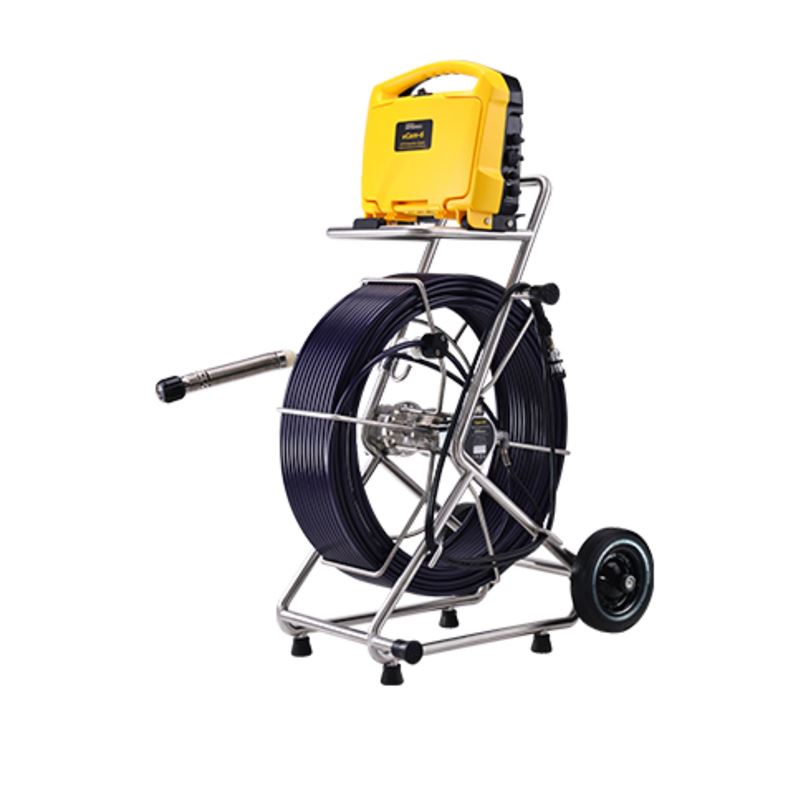

Vivax vCam-6 HD Drain Pipe CCTV Inspection Camera
- Full 1080p HD video with self-levelling camera heads
- Choice of 60m, 90m or 120m pushrod lengths
- Standard or heavy-duty 12mm pushrod options
- Wi-Fi streaming and 1TB internal storage
- Authorised UK retailer with full warranty support
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

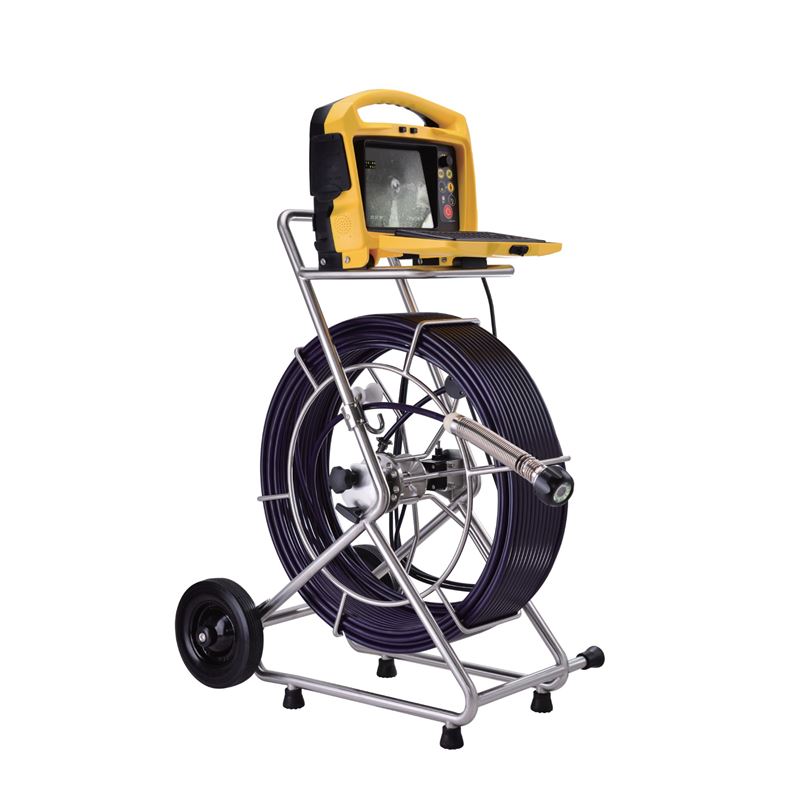

The Vivax vCam-6 HD Inspection Camera System is a professional-grade pipeline and drain inspection solution, trusted by utility contractors, drainage engineers and surveyors across the UK. As an authorised UK retailer, we proudly offer all 12 configurations of the vCam-6 system—giving you the flexibility to choose between 60m, 90m or 120m pushrod lengths, in either 12mm standard or heavy-duty cable, and with your choice of 34mm or 46mm HD self-levelling camera heads.

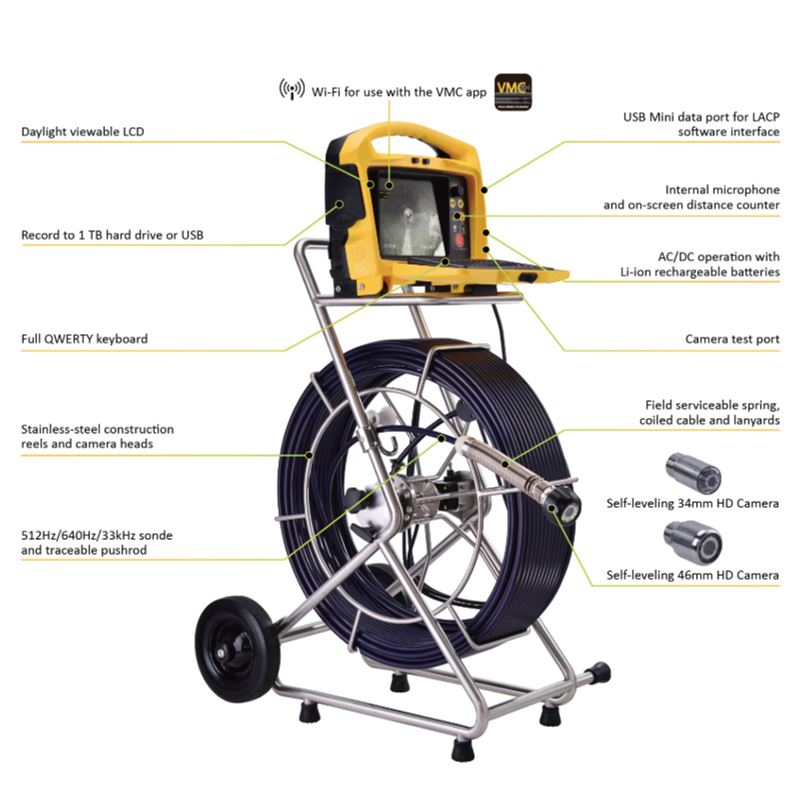

Built for daily use in tough environments, this feature-rich system delivers crisp 1080p HD video, accurate on-screen distance tracking, Wi-Fi streaming, and smart file sharing. Record inspections directly to the 1TB internal hard drive or to USB/SD for convenient off-site review.

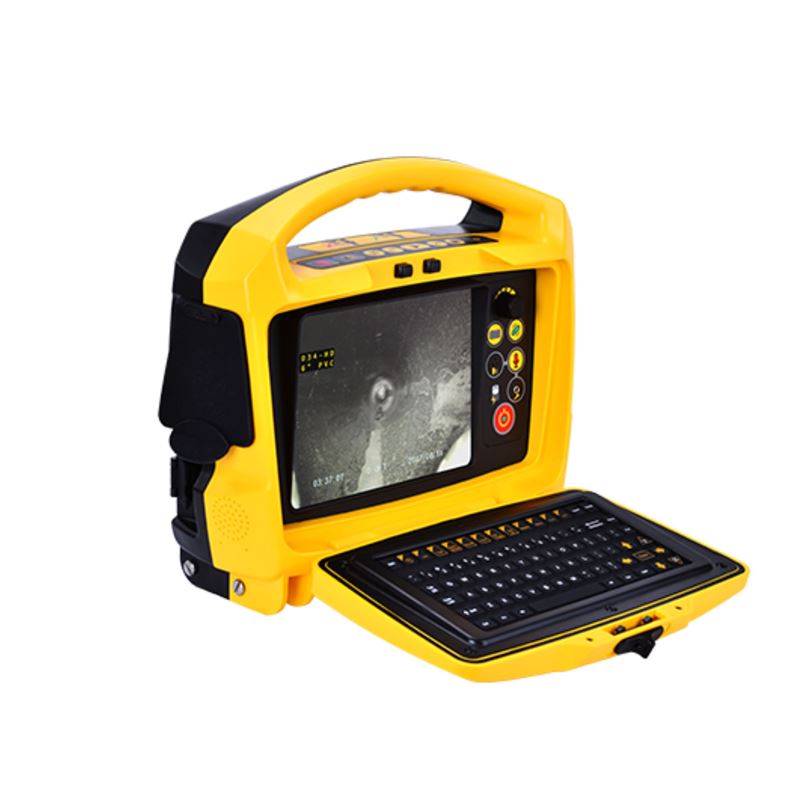

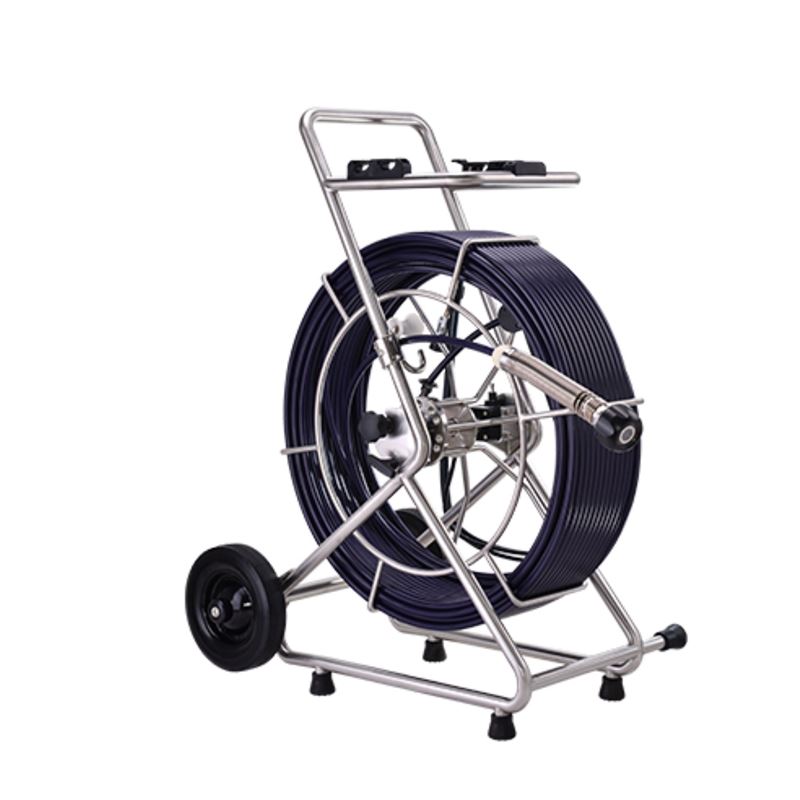

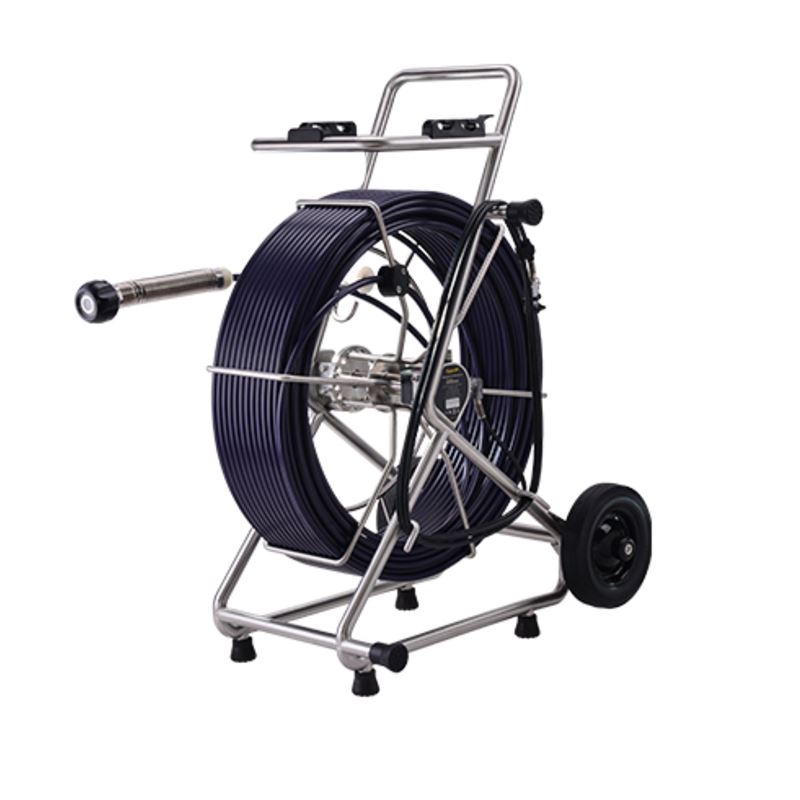

The Type-CP stainless steel reel and robust pushrod are built to withstand the most demanding conditions, and the system includes a daylight-readable LCD touchscreen, onboard microphone, full QWERTY keyboard, and AC/DC charging capabilities. With smart integration options and backwards compatibility, the vCam-6 offers unmatched value and future-proofing.
Whether you're surveying sewer lines, drainage networks, or ducting systems, this is your go-to solution for reliability, clarity, and professional-grade results.
| Attribute | Value |
| Camera Head Options | D34-HD (34mm), D46-HD (46mm) – Self-levelling, 1080p HD |
| Pushrod Type | 12mm Standard or Heavy Duty |
| Pushrod Length | 60m / 90m / 120m |
| Camera Resolution | 1920 x 1080 Full HD |
| Field of View | 96° Wide Angle |
| Sonde Frequencies | 512Hz, 640Hz, 33kHz (user selectable) |
| Storage Capacity | 1TB Internal Hard Drive, USB (128GB), SD Card (32GB) |

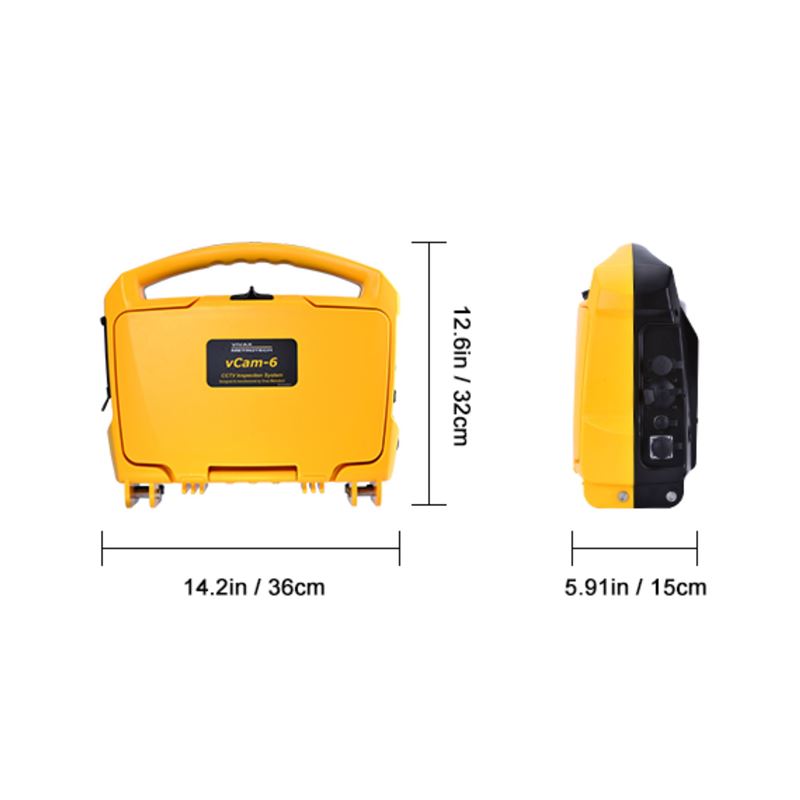

| Control Module Display | 9.7” Daylight-Viewable Touchscreen LCD |
| Battery Runtime | Up to 4 hours (6 hours with sonde off) |
| Wi-Fi Streaming | Up to 45m Range |
| Construction | Stainless Steel Reel Frame, IP54 Rated |
| Environmental Protection | Water & Shock Resistant (Lid Closed) |

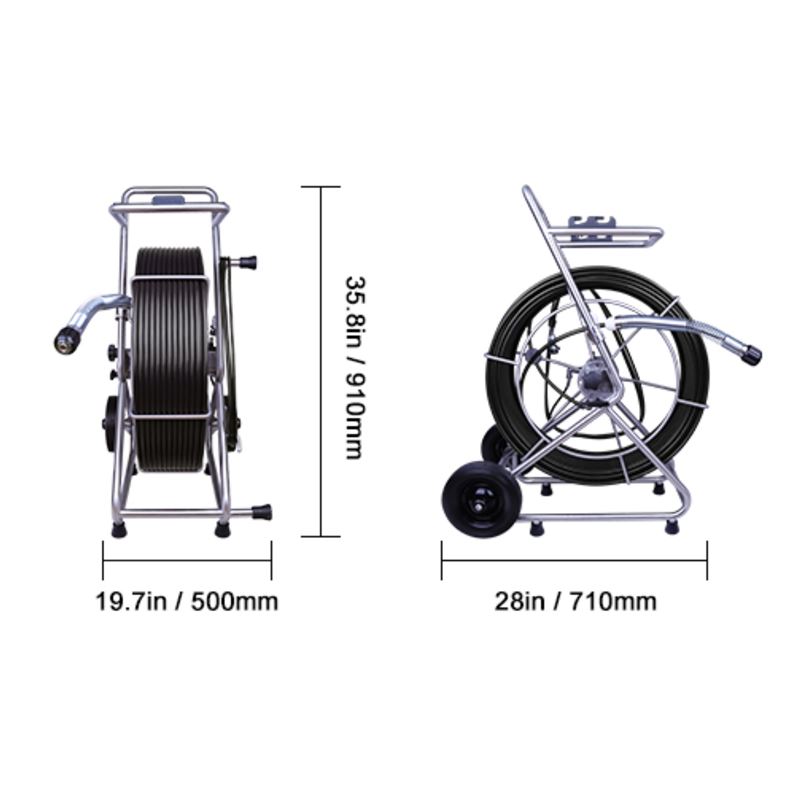

| Weight (Reel) | 60m: 26kg / 90m: 31kg / 120m: 36kg |
| Weight (Control Module) | 5.49kg |
| Compatibility | Backward compatible with legacy Vivax cameras |
| Warranty | 1 Year on Control Unit, Reel, and Camera Head |
| Attribute | Value |
| Pipe Inspection | Domestic, commercial, and industrial pipe networks |
| Drain Surveys | Pre-purchase reports, blocked drain diagnostics |
| Sewer Line Checks | Local authority, water board and contractor surveys |
| Utility Ducting | Inspection of telecoms and power duct systems |
| Plumbing Maintenance | Routine internal checks for plumbers and engineers |
| Construction Site Drainage | Snagging and verification of new installations |
| Facilities Management | Ongoing inspection of building waste systems |
| Insurance Investigations | Evidence collection for claims and damage reports |
| Asset Management | Ongoing maintenance for private and public infrastructure |
| Surveyor Reports | Drainage inspections for property condition assessments |
