HD4 Pipe Inspection Camera System - PTZ, Self-Levelling or Both - 60m Cable
- Choice of PTZ, self-levelling, or both camera heads
- 1280×720 HD video with 8-level digital zoom
- 60m cable with M/FT counter and reset function
- Waterproof IP68 design for harsh environments
- 10.1" LCD screen with video and image capture
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

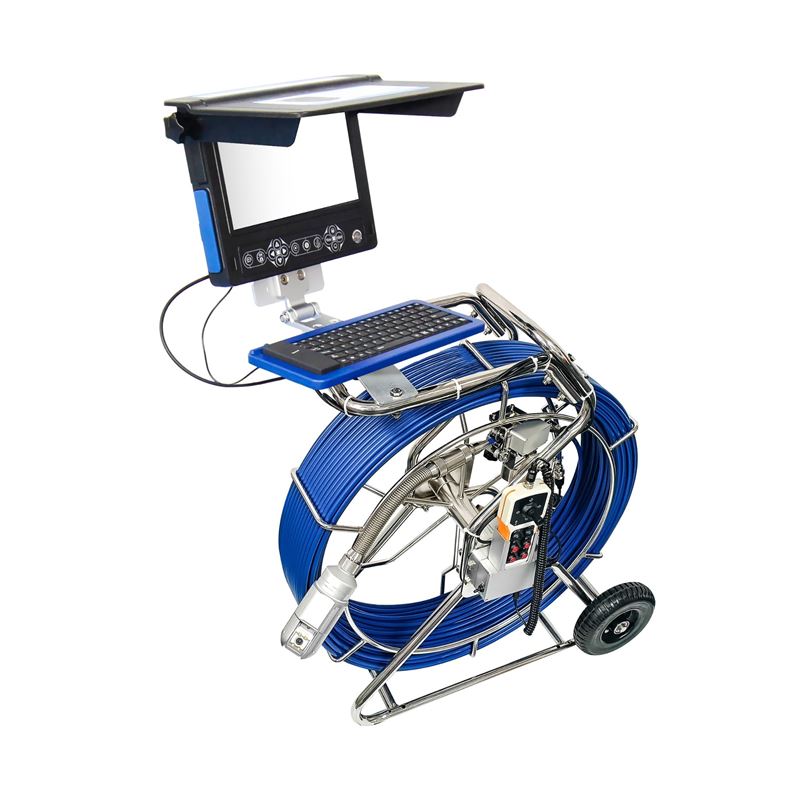

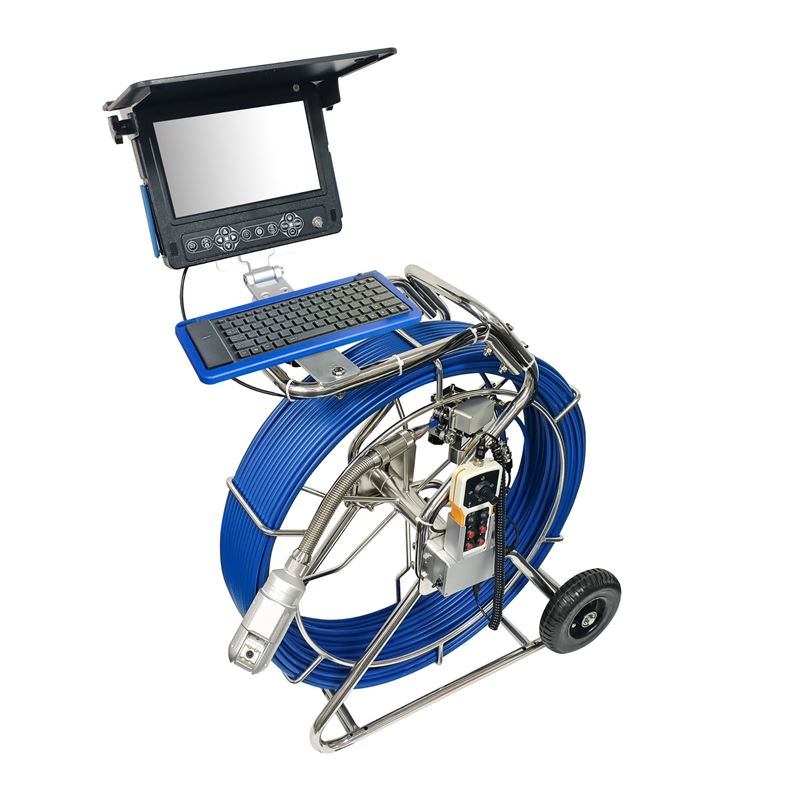

The HD4 Pipe Inspection Camera System is a professional-grade, high-definition solution for inspecting drains, sewers, and pipelines. Available in three configurations - with a 65mm Pan-Tilt-Zoom (PTZ) camera head, a 50mm self-levelling camera head, or both - the HD4 delivers exceptional image quality and inspection versatility.

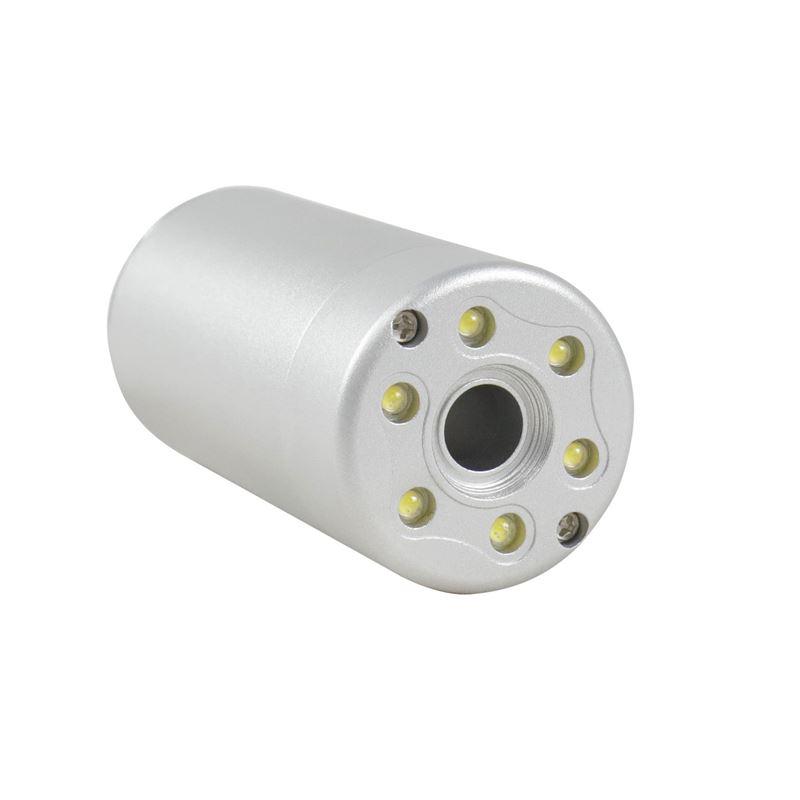

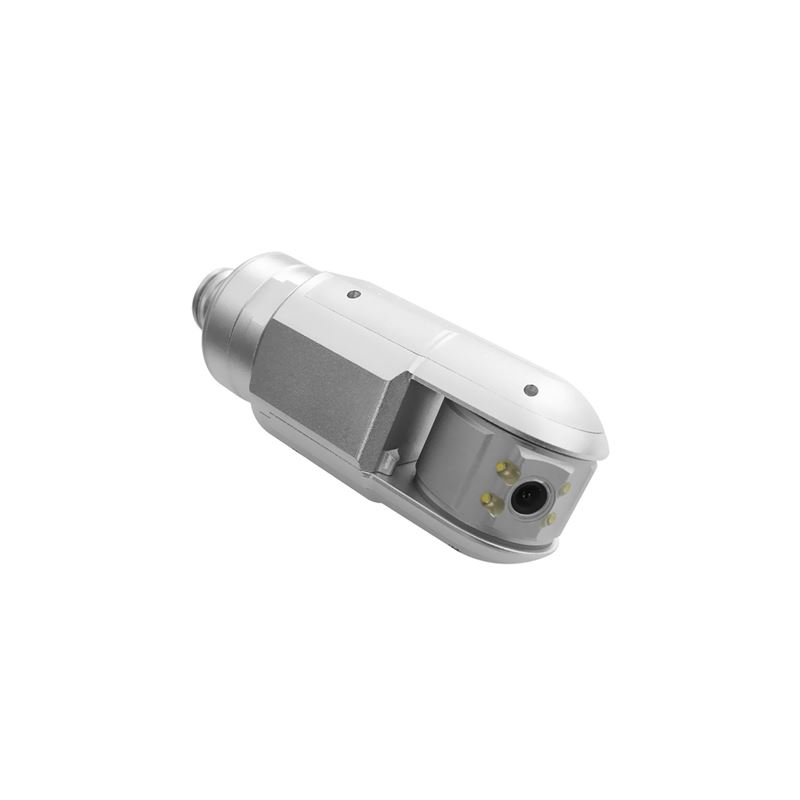

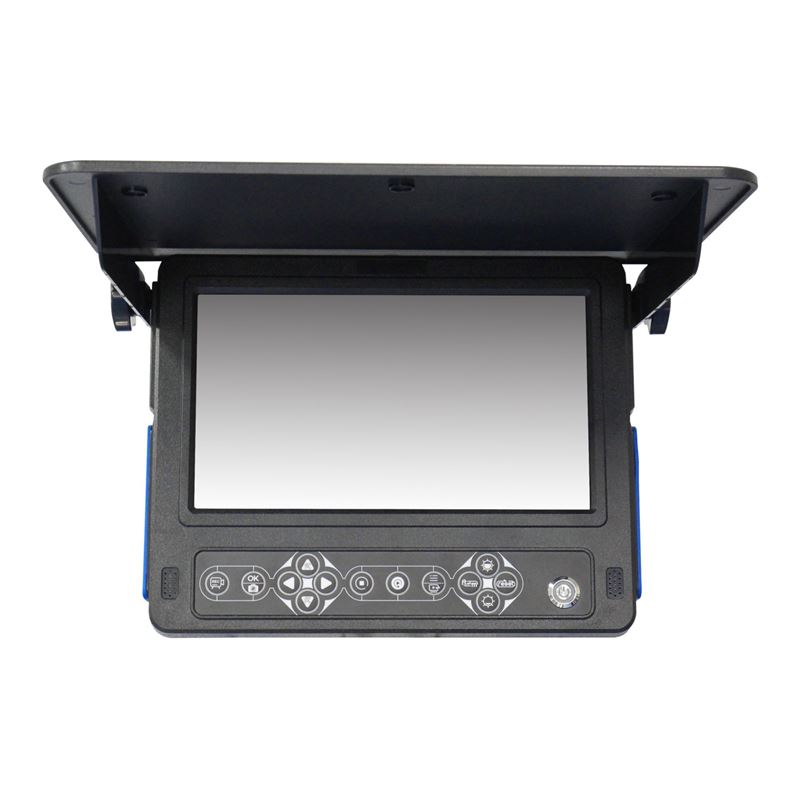

With 1280×720 HD resolution, 8-level digital zoom, and a bright 10.1-inch LCD display, every detail is captured with clarity. The PTZ head offers 360° pan and 180° tilt for complete directional control, while the self-levelling head ensures the image remains upright for effortless viewing. Both options feature high-intensity LED lighting for clear visuals even in dark or submerged environments.

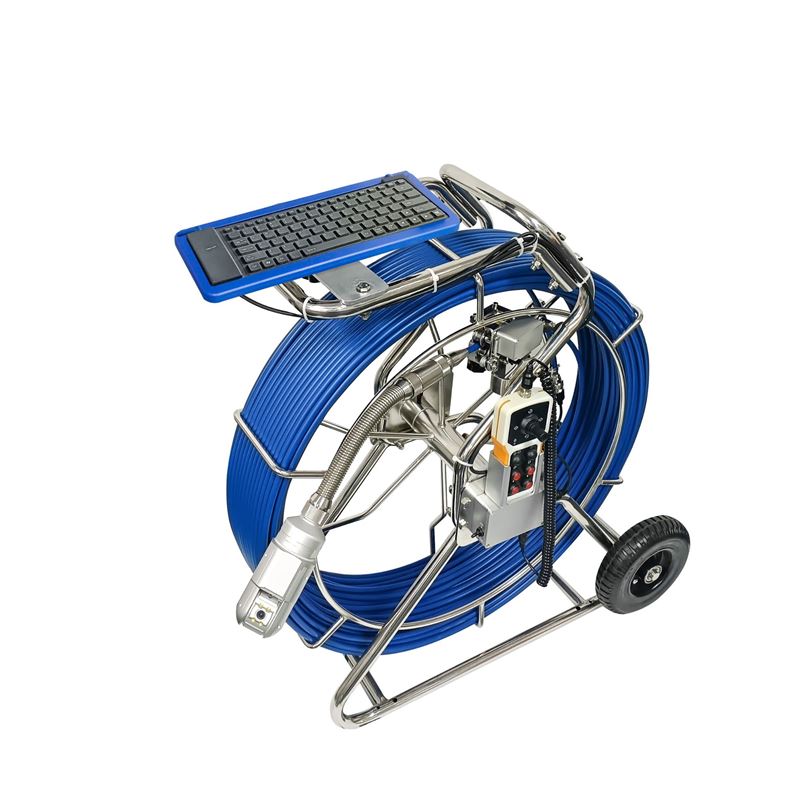

The 60m ø9.5mm cable reel is equipped with a metre/foot counter and reset function for accurate distance measurement. The robust IP68 waterproof rating ensures durability in demanding conditions. Data capture is simple with one-touch video/audio recording and image snapshot, stored to an SD card or USB stick for easy review and sharing.
A detachable 512Hz transmitter allows accurate location tracking, while the rotating keyboard tray and ergonomic design make the HD4 easy to use on-site. Whether you choose PTZ, self-levelling, or both camera heads, the HD4 offers reliability, precision, and efficiency for every inspection task.
| Attribute | Value |
| Camera Head Options | 65mm PTZ / 50mm Self-Levelling / Both |
| Pan/Tilt Range (PTZ) | 360° Pan / 180° Tilt |
| Self Leveling Head | Automatic image alignment |
| View Angle | 105° |
| Adjustable LED's | 4 high-intensity LEDs |
| IP Rating | IP68 |
| Cable Length (Metres) | 60m |
| Cable Diameter | ø9.5mm |
| Screen Size | 10.1" LCD, 1024×600 |
| Storage | SD card (max 256GB) / USB stick |
| Battery Run Time (Hours) | Up to 4 hours |
| Power Input | AC100-240V~50/60Hz |
| Power Output | DC 13.5V/5A |
