Drain Pipe Sewer Inspection Camera System 65mm Rotating Camera 50mm Self Levelling Camera 512Hz Sonde and 10.1 inch LCD screen
- ROTATING WATERPROOF (IP68) HD CAMERA 65MM WITH 4 ADJUSTABLE LEDS – 1/3” CMOS sensor with 105° viewing angle, 360° pan and 180° tilt
- WATERPROOF (IP68) SELF-LEVELLING 50MM CAMERA WITH 6 ADJUSTABLE LEDS -1/2.9 Sony CMS sensor with 105° viewing angle
- BRAKED CABLE REEL MOUNTED ON 2 LARGE WHEELS AT THE REAR WITH 2 LOCKABLE CASTORS ON THE FRONT – 60m cable with 10.3mm diameter
- LARGE HD LCD SCREEN 10.1” - 1280 x 800px display with VCR and camera controls

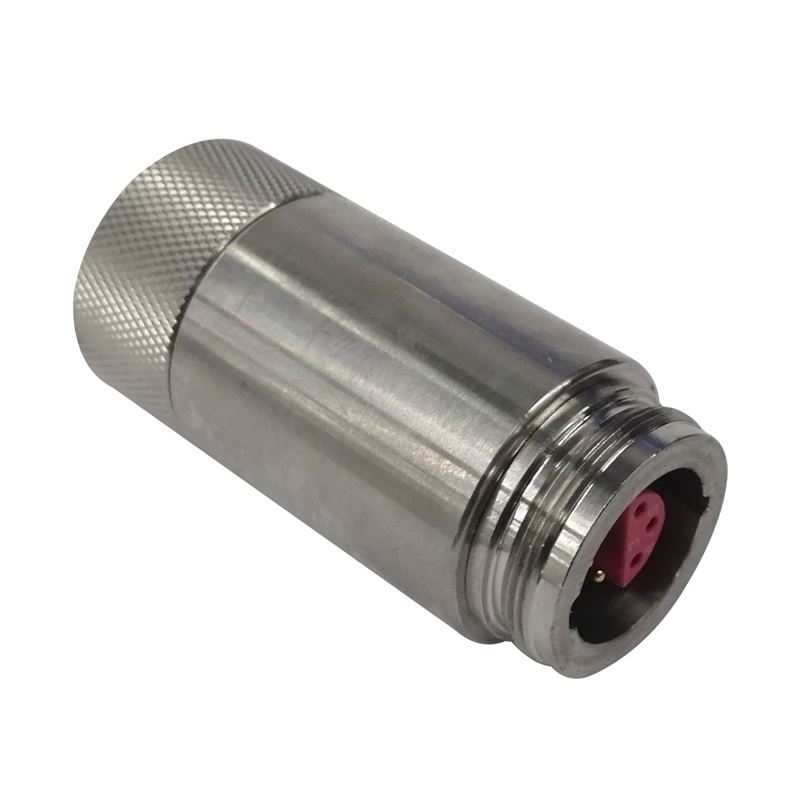

- 512Hz SONDE TRANSMITTER, 64GB SD MEMORY CARD AND CARD READER – Sonde can be fitted if required and has a digital counter which can display in feet or metres and record videos and images to the memory card

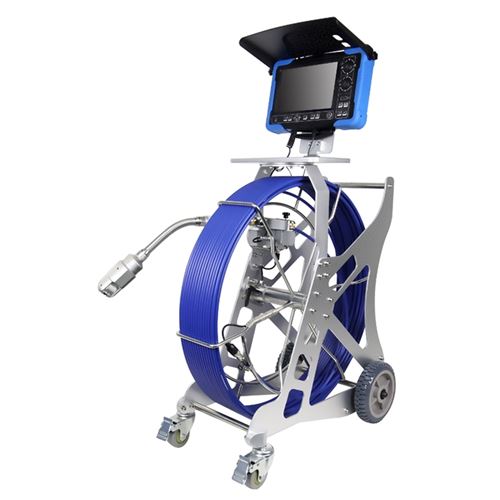

This Pipe Inspection System from UKIC comes with two camera, a 65mm rotating camera and a 50mm self-levelling camera. Both cameras have adjustable LEDs for lighting up dark areas.

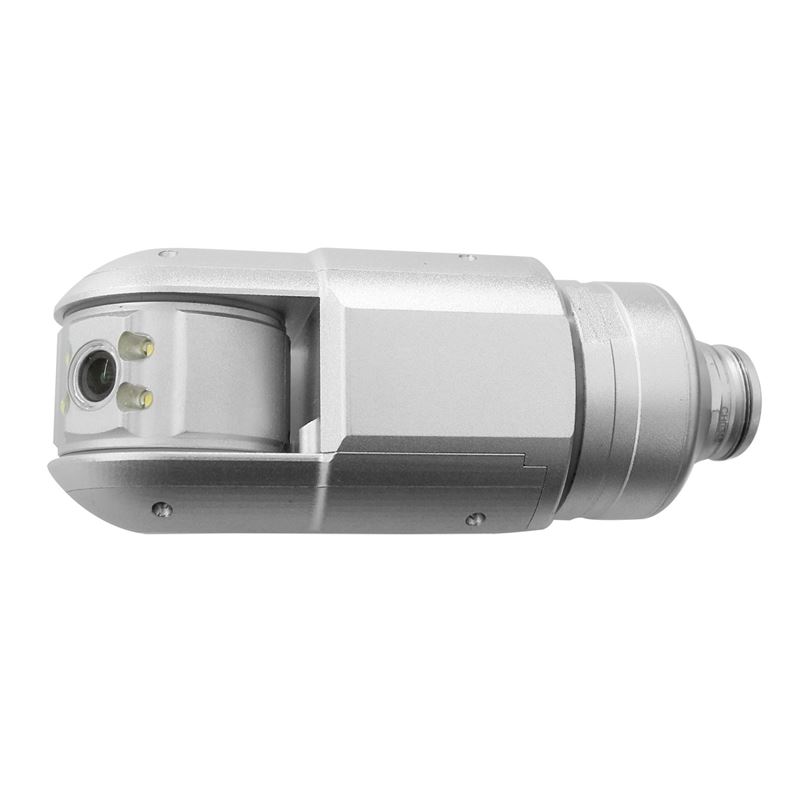

The 65mm rotating camera has four LEDS and a 1/3” CMOS sensor with 105° viewing angle. The camera can pan 360° and tilt 180°. It is waterproof, rated IP68 (1 bar) and comes with an 80mm skid and telescopic bracket. Please note: This camera is not suitable for severe blockages and sludge in a pipeline.

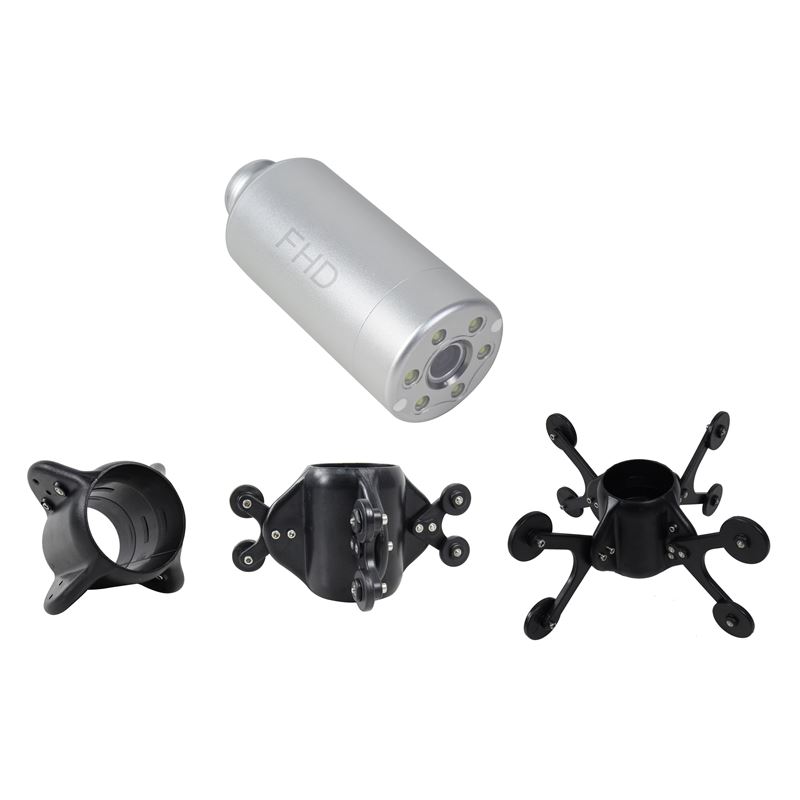

The 50mm self-levelling camera has six LEDs and a 1/2.9” Sony CMOS sensor with 105° viewing angle. It is waterproof, rated IP68 (3 bar) and comes with 110mm, 150mm and 210mm skids.
A 512Hz Sonde transmitter is included and can be fitted, if required, with a digital counter display in metres or feet.

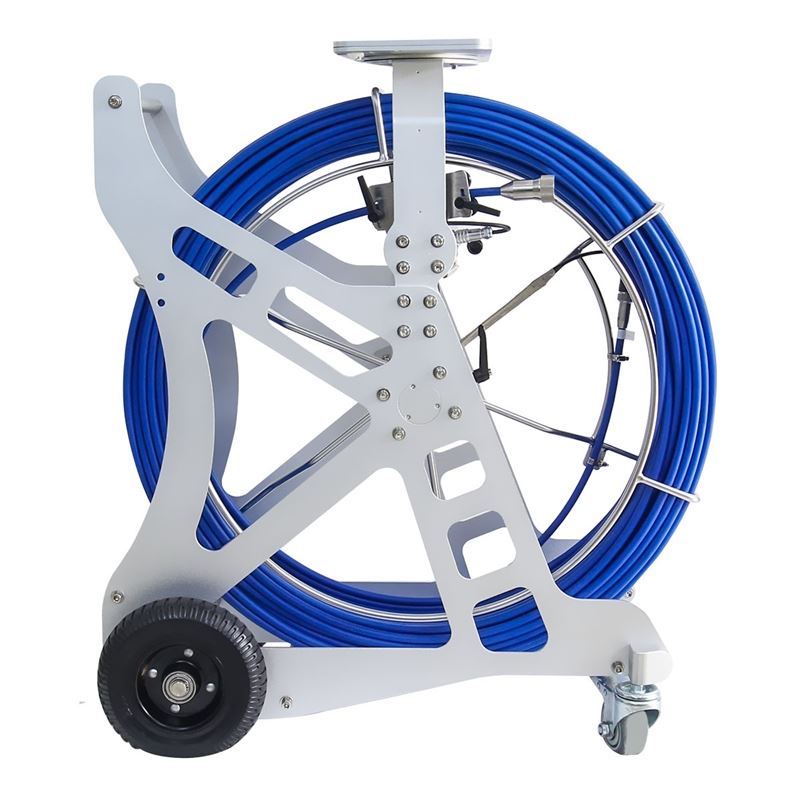

The 60m cable reel with 10.3mm diameter has a brake system and is mounted on two large wheels at the rear with two lockable castors on the front.

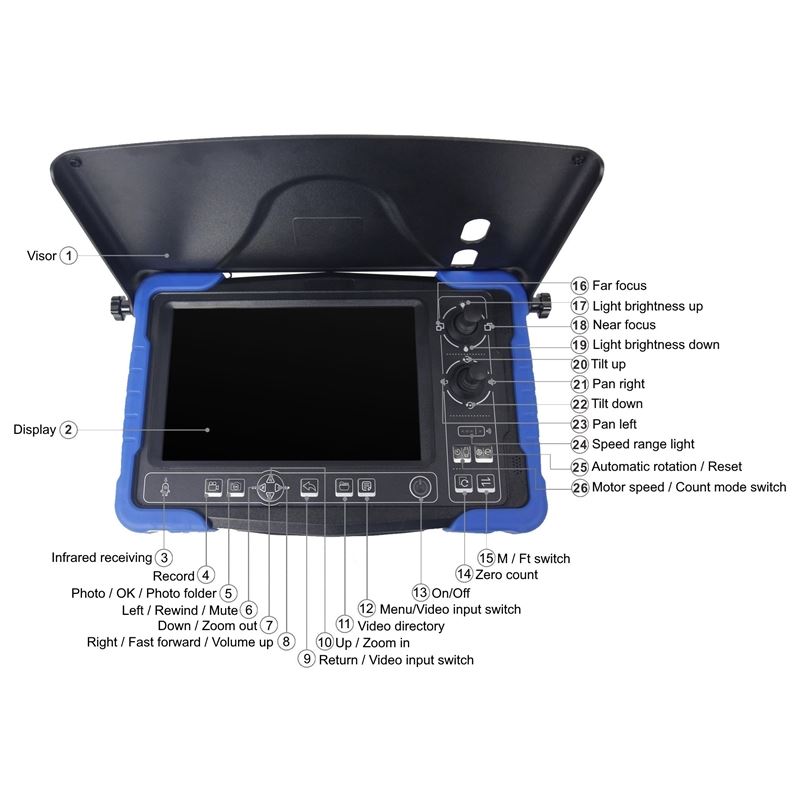

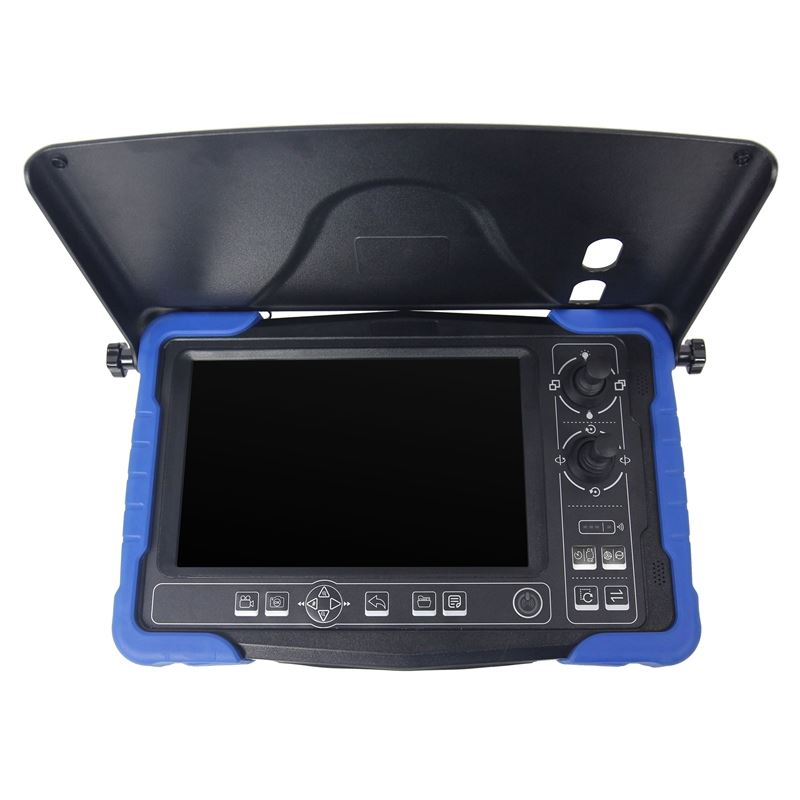

A 10.1” HD LED screen with sunshade provides all the controls for video and image capture, and playback. Powered by a 6000mAh Li-ion battery, it will provide around 4 hours operation.

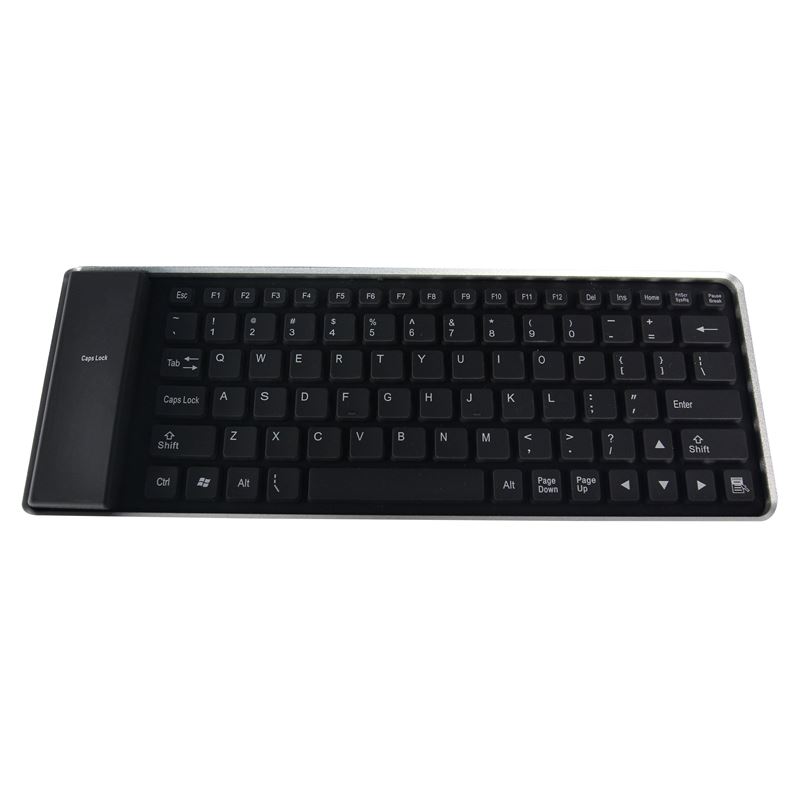

A waterproof USB keyboard enables notes to be made in relation to the inspection. Audio can also be recorded with videos.

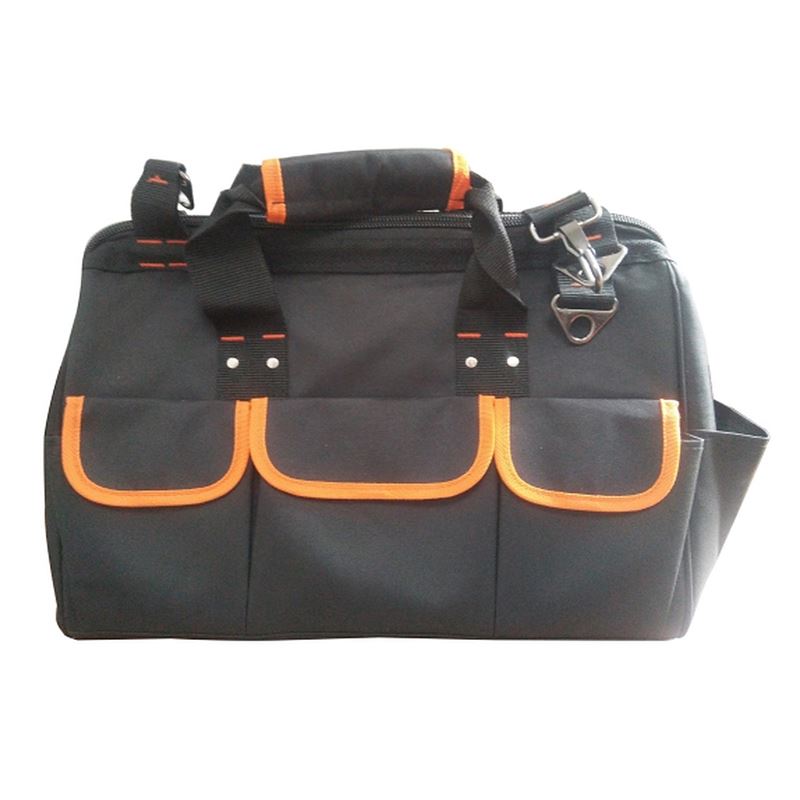

Supplied with a canvas bag, this Pipe Inspection System includes a 64Gb SD memory card, card reader, earphones with microphone and mains charger.
