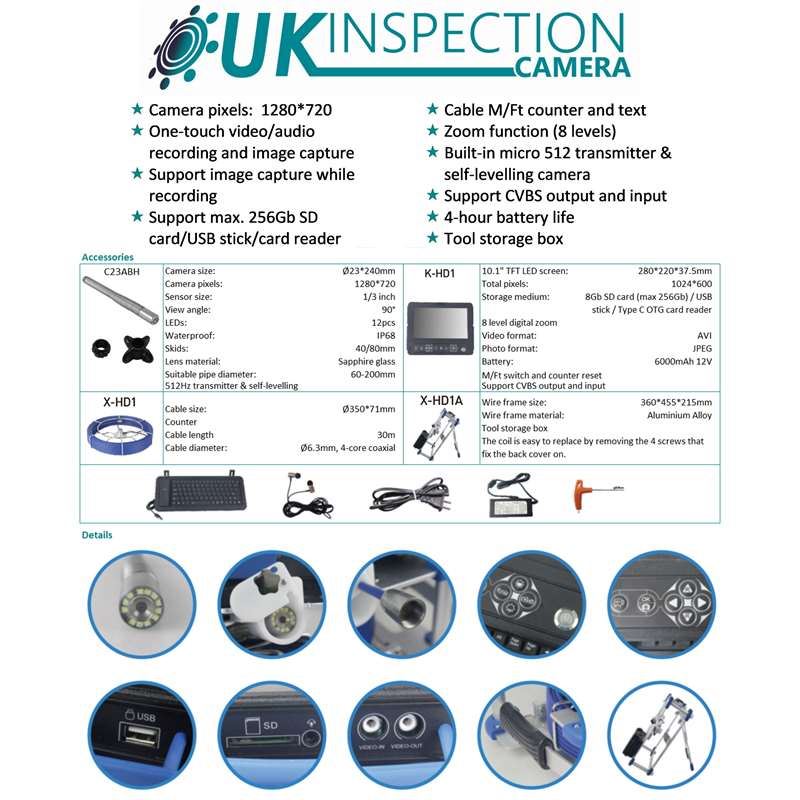

An easy to use, one touch video/audio and image capture pipe inspection system with large 10.1” TFT LCD colour screen from UK Inspection Camera suitable for pipes with a diameter of 60-200mm.

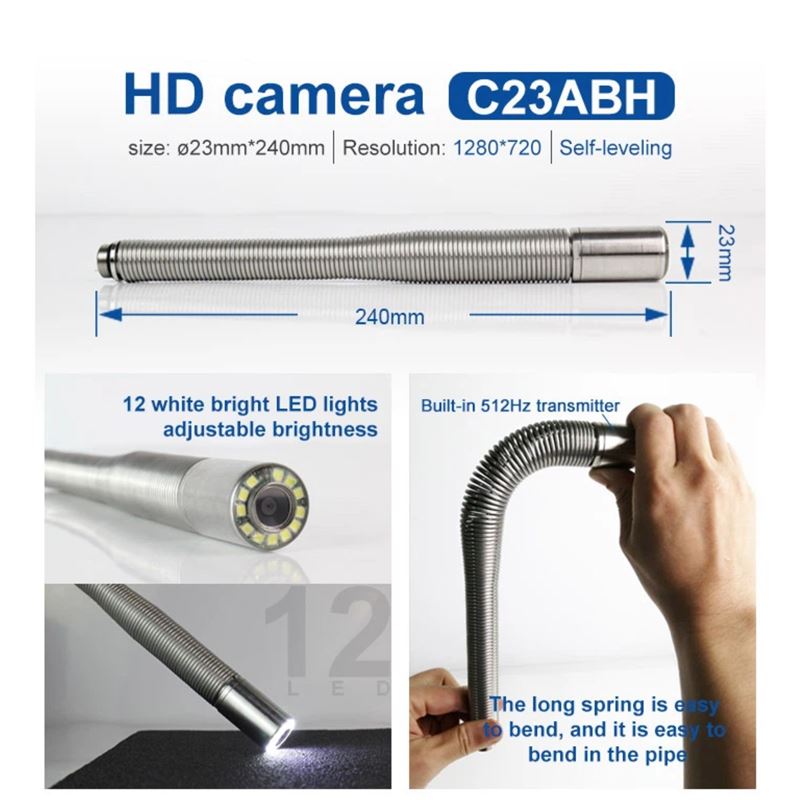

The system has a built-in micro 512Hz sonde transmitter and self-levelling camera with 1280 x 720 pixel resolution, 90° viewing angle, eight level zoom function and 12 LEDs. The camera lens is tough sapphire glass and comes with 40 and 80mm skids. The head has an IP68 rating which is resistant to dust, dirt, sand and to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes. A digital metre counter can be switched between metres and feet, or reset with ease.

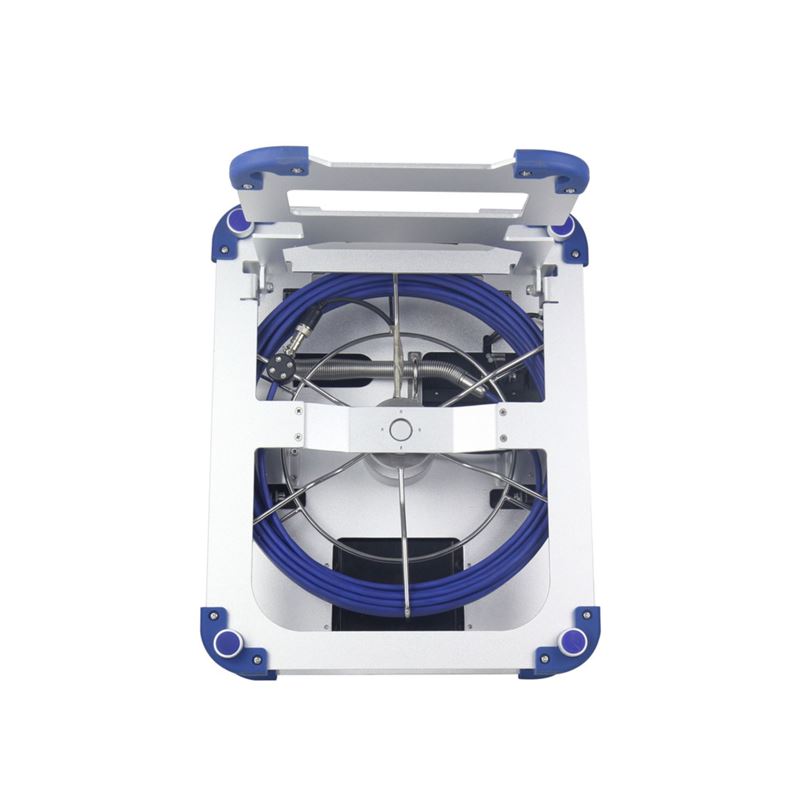

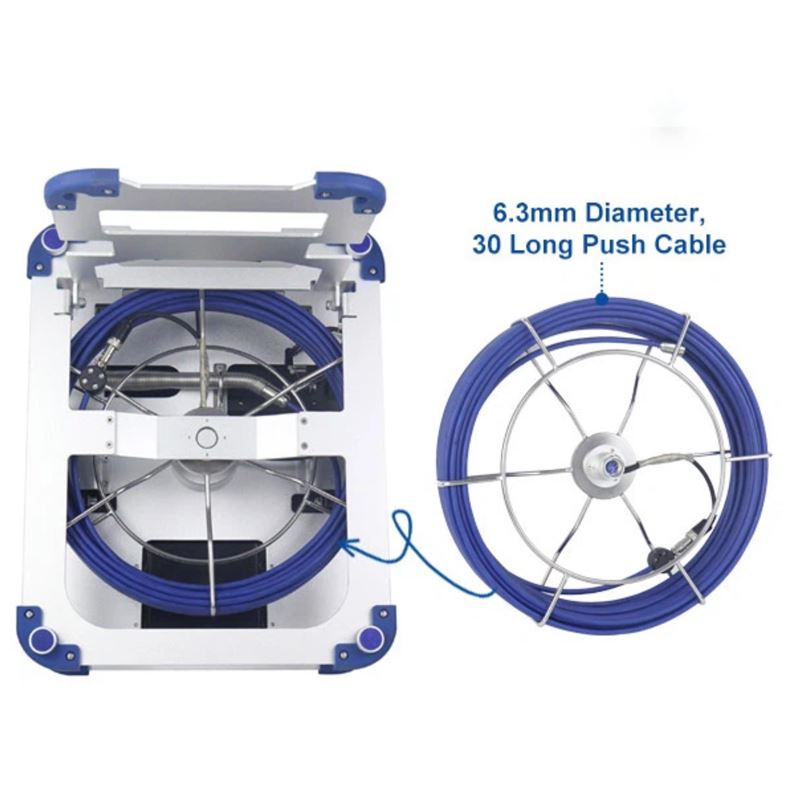

A 30 metre 4-core coaxial cable with 6.3mm diameter mounted on an aluminium alloy frame (36 x 45.5 x 21.5cm) with stand also has a useful tool storage box. The coil is easy to replace by simply removing the four screws that fix the back cover on.

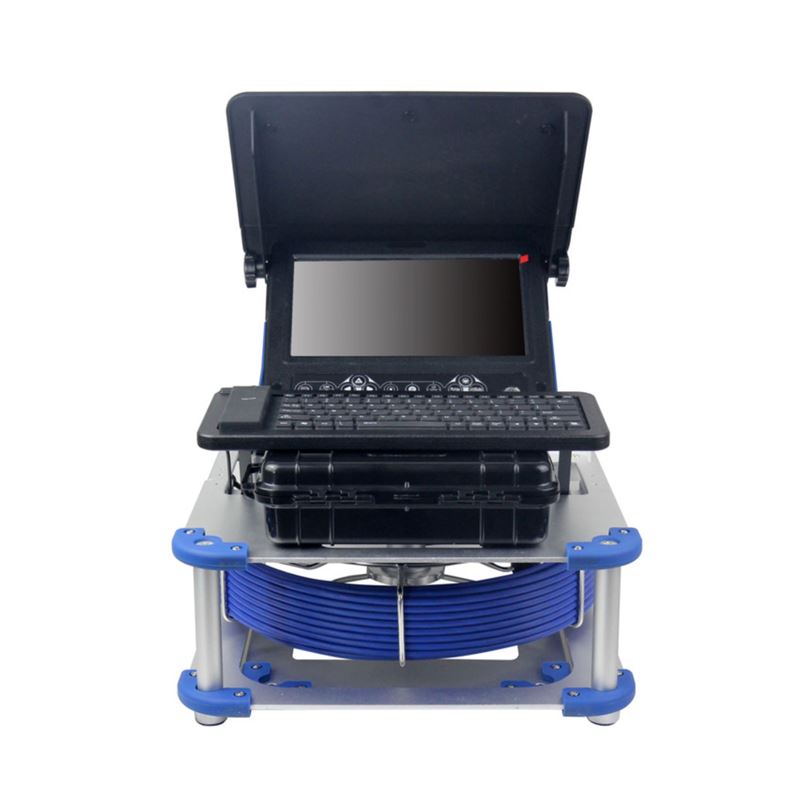

The TFT screen has a resolution of 1024 x 600 pixels and a 6000mAh 12v rechargeable battery providing a 4 hour operating time. It comes with a sunshade and keyboard for text input. Images and videos can be stored to an SD card (maximum capacity 256Gb), USB memory stick or Type-C OTG card reader. Videos are stored in AVI format, whilst images are stored as JPEG. The system supports image capture whilst recording and also supports CVBS output and input.
