Weatherproof 100m Drain Inspection Camera System
- Weatherproof monitor for outdoor drain inspections
- 100m push rod cable for long-distance surveys
- Choice of 32mm self-levelling or 35mm PTZ camera
- IP68 camera heads waterproof to depths of 10m
- Built-in 512Hz sonde for underground camera location
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

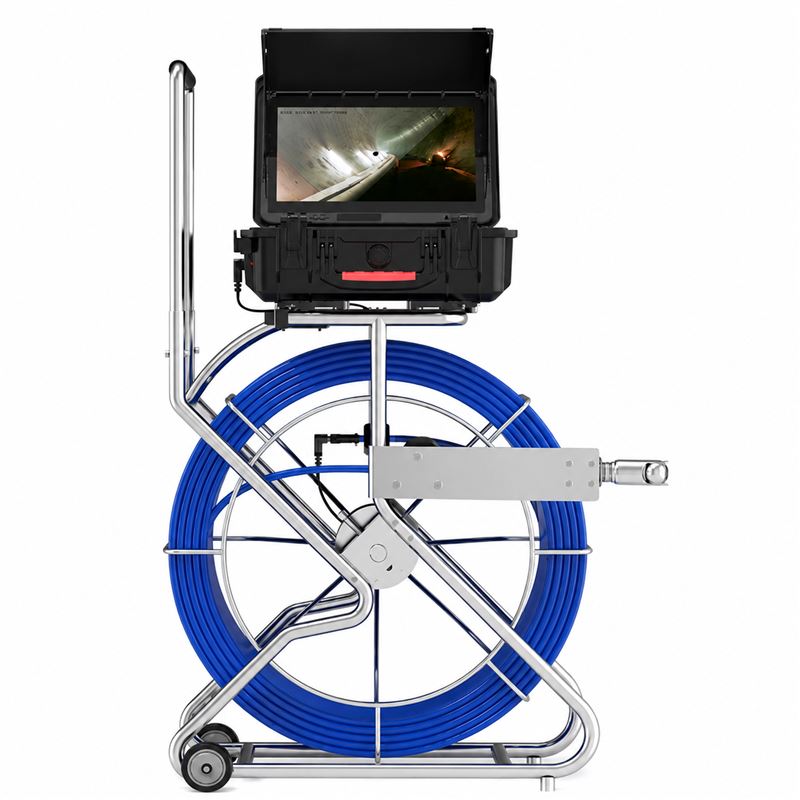

The PD200 Weatherproof 100m Drain Inspection Camera System is a professional inspection solution designed for drainage contractors, surveyors, utilities and maintenance teams working outdoors in challenging UK conditions.

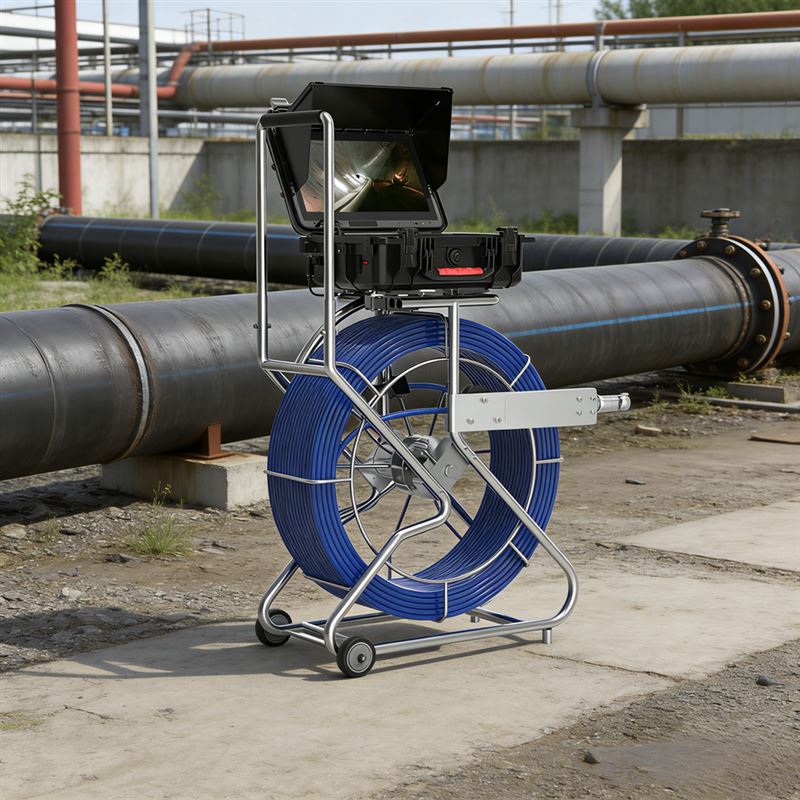

A key advantage of the PD200 is its weatherproof monitor and control system, allowing operators to continue drain and sewer inspections outside during inclement weather. Combined with an IP68 waterproof camera head rated for submersion up to 10 metres, the system is particularly well suited to demanding drainage, sewer and underground pipe inspection work.
The system features a substantial 100m push rod cable, providing the reach required for longer drain runs, commercial drainage networks and larger inspection projects. A built-in 512Hz sonde helps operators locate the camera head underground when used with a compatible locator.
Two camera configurations are available. Choose the 32mm self-levelling camera head for straightforward drain surveys with an automatically orientated image, or upgrade to the 35mm PTZ camera head with 360° pan and 180° tilt for detailed inspection of pipe walls, joints, connections and defects.

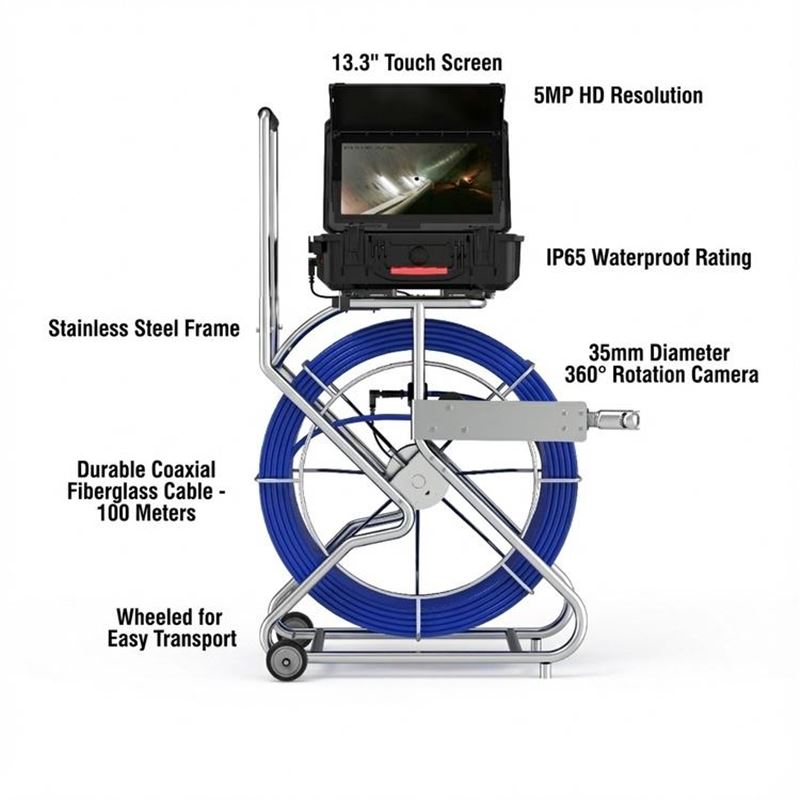

The large 13.3-inch touchscreen monitor provides clear inspection footage and supports high-resolution recording, WiFi transfer, USB and TF card storage. An integrated keyboard also makes it easier to add information during professional survey work.
For drainage professionals who cannot rely on dry weather, the PD200 combines 100m inspection capability, weatherproof operation and versatile camera options in one professional drain camera platform.
| Attribute Name | Value |
| Product Type | Professional weatherproof drain and sewer inspection camera |
| Model | PD200 |
| Cable Length | 100m |
| Push Rod | 11mm push cable |
| Monitor | 13.3" touchscreen monitor |
| Monitor Resolution | 1920 x 1080 |
| Recording Resolution | Up to 4K |
| Monitor Protection | Weatherproof for outdoor use in inclement weather |
| Camera Options | 32mm self-levelling or 35mm pan and tilt |
| 32mm Camera | 5MP Sony sensor, self-levelling |
| 32mm Viewing Angle | 145° |
| 32mm Focus Range | 5-30cm |
| 35mm PTZ Camera | 5MP Sony sensor, 360° pan and 180° tilt |
| 35mm Viewing Angle | 75° |
| 35mm Focus Range | Adjustable 4-150cm |
| Camera Waterproof Rating | IP68 |
| Camera Waterproof Depth | Up to 10m |
| Sonde | Built-in 512Hz sonde |
| Wireless Transfer | WiFi |
| Storage | USB disk and TF card support |
| Video Output | HDMI 1080P |
| Keyboard | Internal wireless keyboard |
| Meter Counter | Waterproof M/F shaft meter counter |
| Battery | Up to 10 hours working time |
| Attribute Name | Value |
| Drain Surveys | Professional inspection and recording of drainage systems |
| Sewer Inspection | Long-distance inspection of sewer and underground pipework |
| Outdoor Inspections | Weatherproof system suited to inclement UK weather |
| Commercial Drainage | Inspection of commercial and industrial drainage networks |
| Utilities | Inspection of underground pipework and infrastructure |
| Fault Investigation | Identify damage, blockages, joints and pipe defects |
| Pipe Location | 512Hz sonde assists underground camera head location |
| Survey Reporting | Record inspection footage and supporting survey information |
