Aerial Pole Survey Camera with Extended Reach and Touch Screen DVR Monitor

Aerial Pole Survey Camera with Extended Reach – a 50cm Extended reach with articulation for tight access surveying.

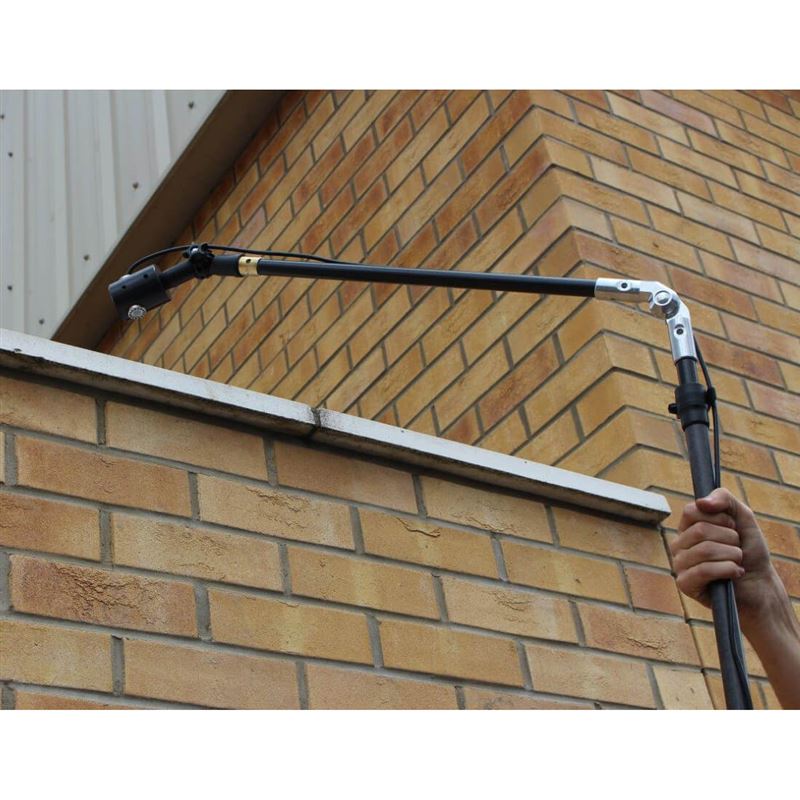

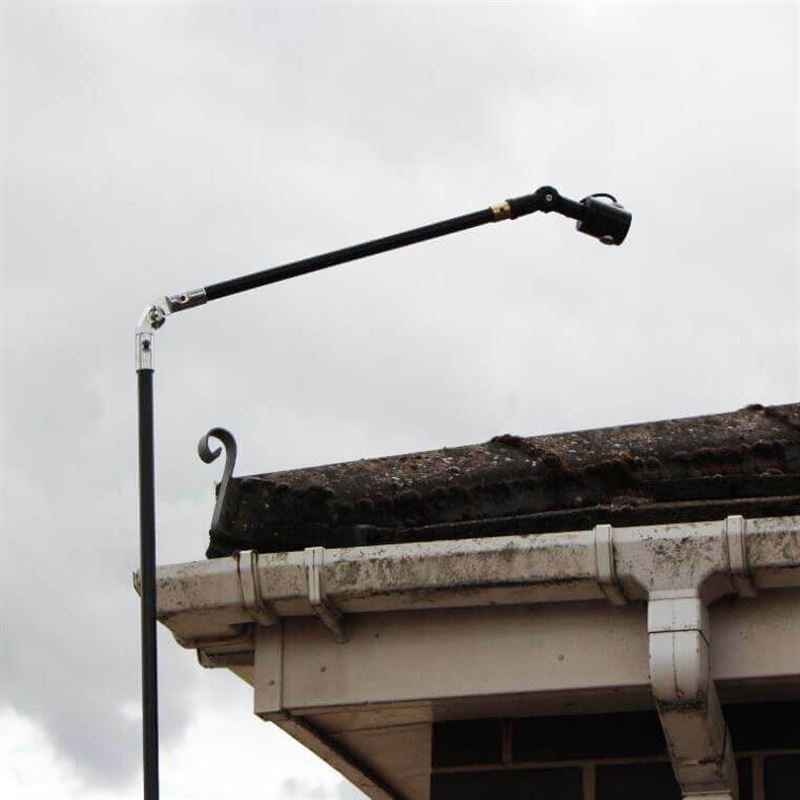

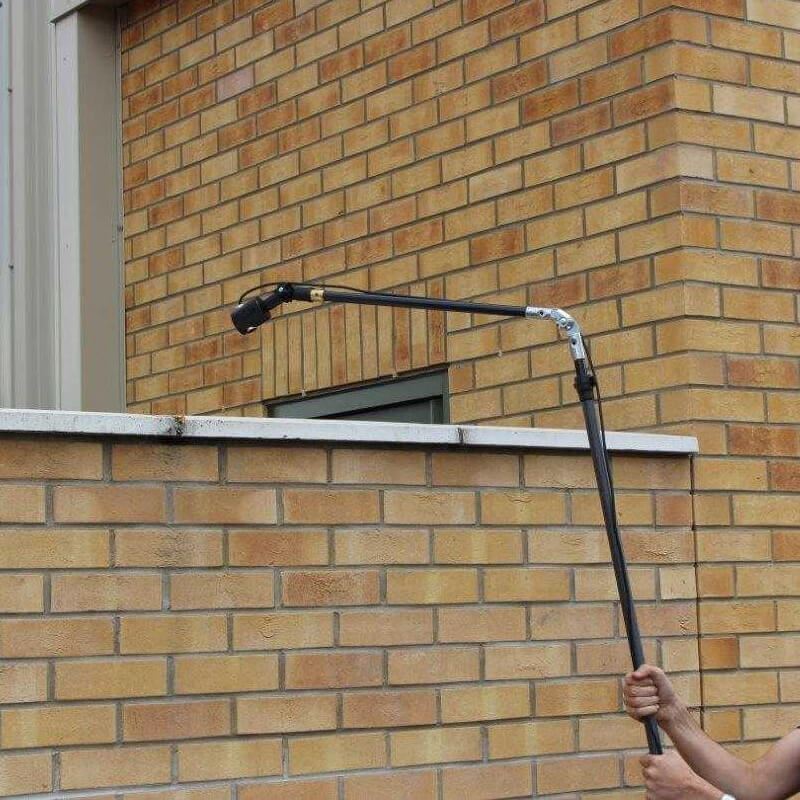

This new survey camera is perfect for aerial survey of awkward places and great to close up inspections where reach is required. A good example would be standing on a bridge and getting a good inspection of the underside from where you are stood. Another survey or inspection example this would be useful is for roof or ridge tiles where you just need more angle to get closer to these difficult to reach places. Ideal where any additional articulation is required. The Telescopic pole used in this systems is carbon composite and is required to give that extra strength and rigidity.

Designed and Manufactured by UK Inspection Cameras, a Robust and high-resolution camera to be used for aerial inspections or surveys giving a live video feed to the operator via a fantastic premium 7” monitor with record facility. Designed to be mobile and will fit in most vans or large cars, it can also be used by one person if required.

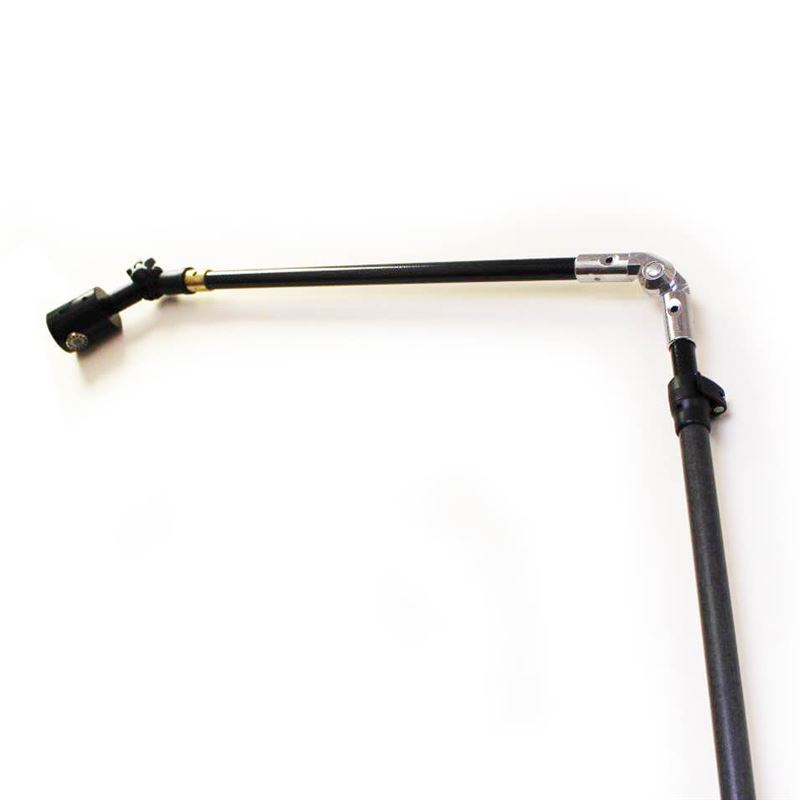

The standard lightweight pole is 1.8 metres long and extends to 4 metres, it weighs around 1 kg and the base section pole has a diameter of 34mm, with the top section being 22mm. For the larger poles, the base section is 50mm and is in 8 sections with very strong easy to operate clamps.

A 960 TV Line Sony high resolution Colour Underwater Camera with White LED Lights built around the lense to enable crisp clear pictures even in the dark!

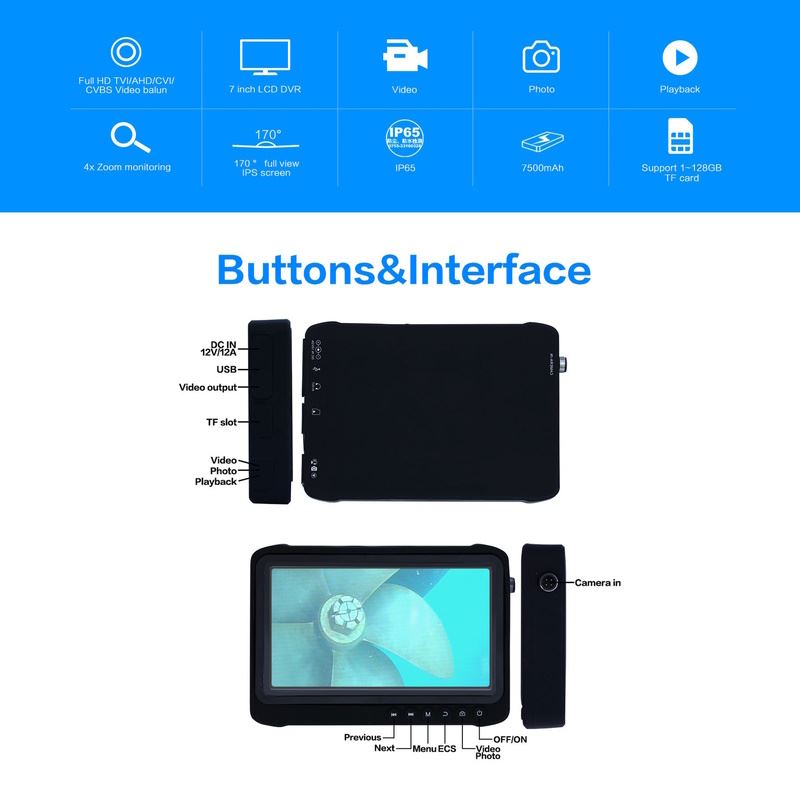

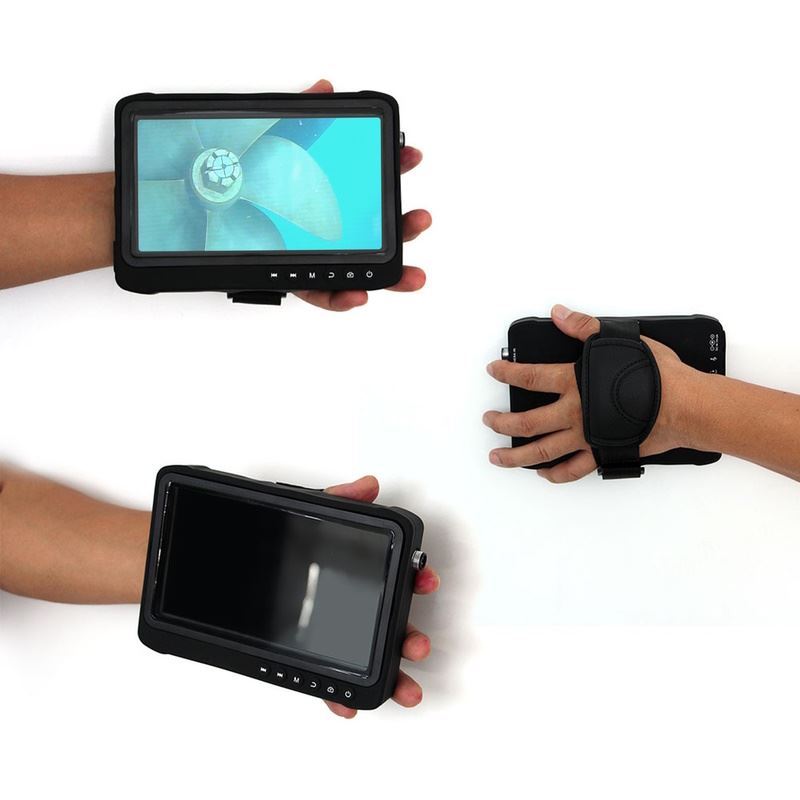

Powered by 12 volts from the portable TFT Monitor (Now available as Combined Monitor & Video Recorder) the camera is truly mobile and Portable which offers a perfect solution for hard to reach places at height. Using on 12 volts power, the system is both safe and can take power from other sources such as vehicles or boats for more continues use associated with some types of inspection work.  With the record facility you have the opportunity to record the video survey, take photos, play back the video on the screen or PC and of course live viewing of the inspection.

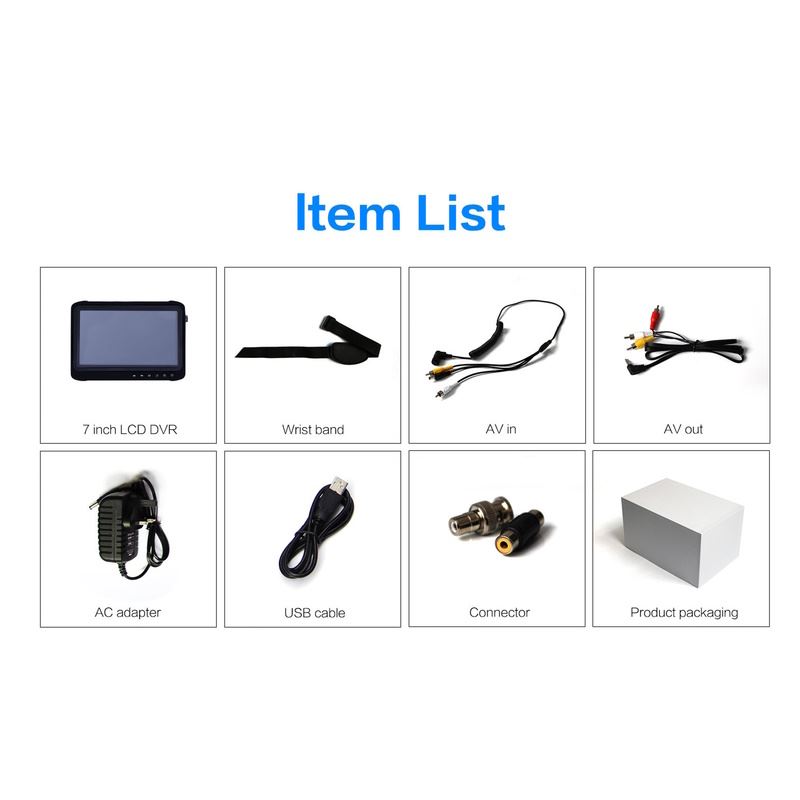

Our Basic inspection System Includes:

• High Resolution Inspection Camera - Colour with Infra-red or White Lights & 10 Metres of cable
• 4 Metre Pole, durable clamps for telescoping
• Colour Monitor with record facility to SD card
• AV Cable Connections and Power Adapter

If you have any specific requirements, please do not hesitate to call.
