Teslong NTS500 5.5mm Dual Lens Cavity Camera and Endoscope with 5 inch HD IPS Monitor
- 3500mAh lithium-ion rechargeable battery with 5-6 hour operating time

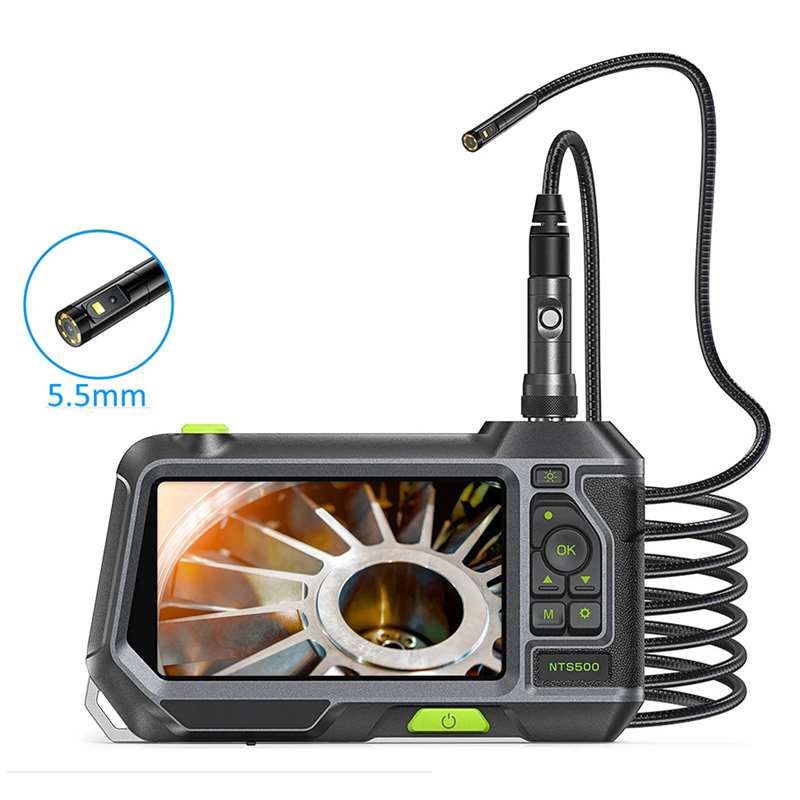

- 1m long probe with 5.5mm dual lens, forward and side facing cameras
- Rated waterproof to IP67 (maximum depth of 1m for up to 30 minutes)
- Includes a 32GB micro SD memory card (installed)
- Tough polycarbonate case with foam infill for safe storage and transport
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
This Cavity Camera and Endoscope is an easy to use, standalone piece of equipment. The dual lenses are a timesaving feature, allowing you to switch quickly and easily from a forward facing view to side view without the need to withdraw the probe.
This system is ideal for cavity wall or vehicle inspections, plumbing, electrical installations, HVAC maintenance and more. Record images with a resolution of 1920 x 1080 pixel in jpeg format and videos, using either 1920 x 1080 or 1280 x 720 pixel resolutions in mpeg4 format. The built-in microphone allows you to record sound and voice notes during an inspection.

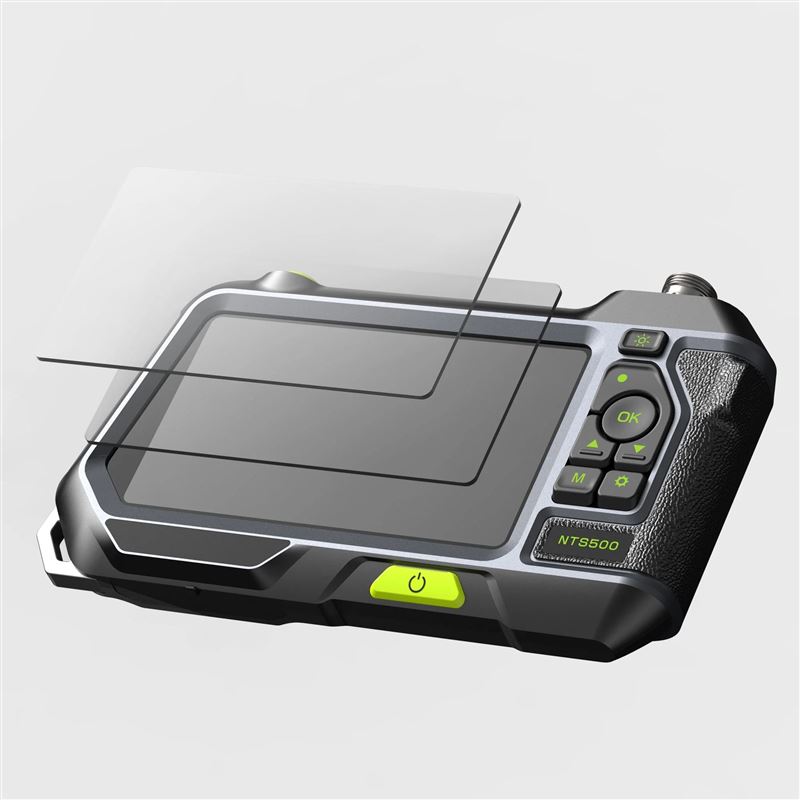

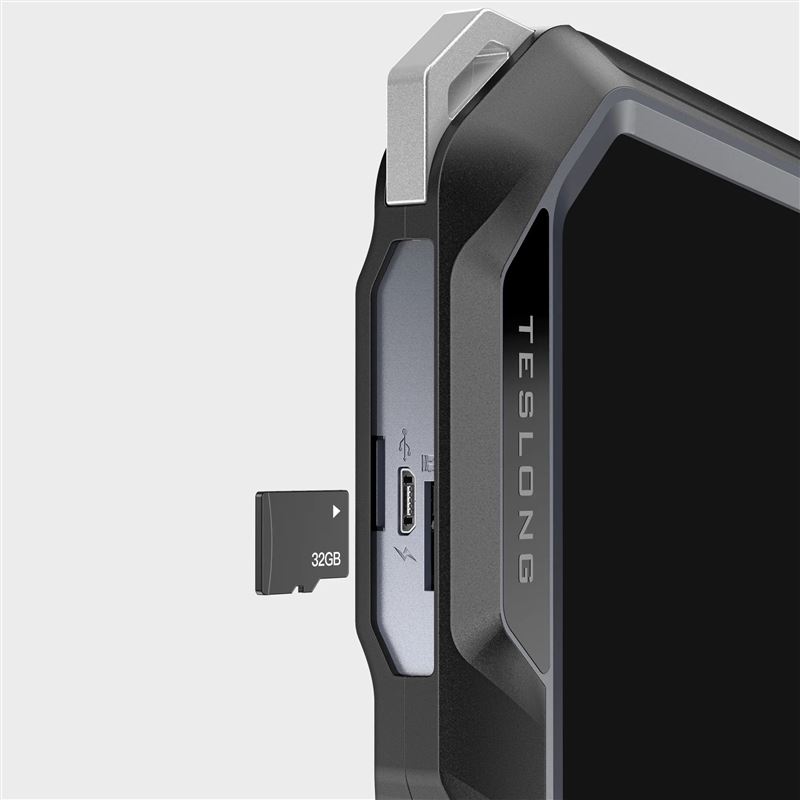

A 5 inch HD IPS Monitor provides real time viewing whilst the tempered glass screen is shatter and scratch resistant. Images and videos can be stored to the installed 32GB micro SD memory card. The monitor also has a 1W Cree LED flashlight to illuminate workspace. IPS or in-plane switching panel is characterised as having the best colour and viewing angles. A high capacity built-in 3500mAh lithium ion battery provides between 5 and 6 hours operating time.

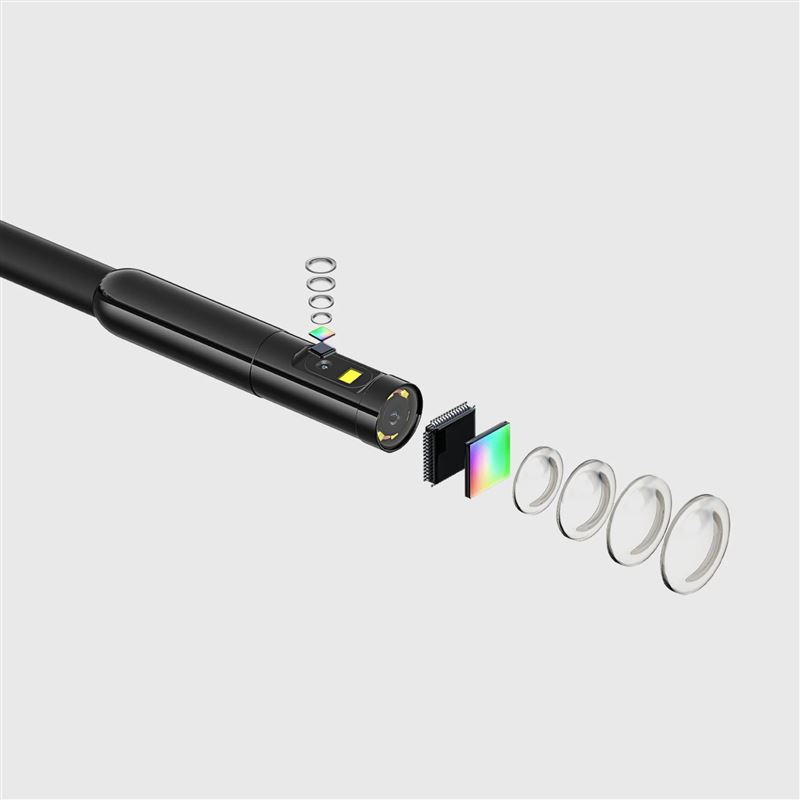

The 1m long probe has a metal cable hosing and has a medium stiffness. The forward facing camera has a 3 to 10cm depth of field and has a ring of 6 adjustable high intensity LEDs to light up the darkest corner. The side view camera has a 3 to 10cm depth of field and also benefits from an LED. The viewing angle is 70°. The probe is rated waterproof to IP67 (a maximum depth of 1m for up to 30 minutes).
Kit's Available
- 1 Metre 5.5mm Probe Kit
- 1 Metre + 3 Metre 5.5mm Probe Kit
- 1 Metre 5.5mm + 1 Metre 3.9mm Probe Kit
What’s in the box?
- Endoscope Monitor
- Detachable Dual-Camera Probe
- Type-C Charging Cable
- 32GB Micro SD card (Installed)
- Hard Plastic Case with foam infill
- User Manual
Read more about our NTS500 Camera in our recent article NTS500 - Everything YOU need to know.
Attribute | Value |
Brand | Teslong |
Model | NTS500 Dual Lens |
Screen Size | 5-inch |
Screen Resolution | 1280x720 pixels |
Image Capturing Resolution | 1920x1080 pixels |
Video Recording Resolution | 1280x720 pixels |
Storage | 32 GB MicroSD card |
Flashlight | 1 watt Cree LED |
Ports | Micro-USB, Micro-SD/TF card slot |
Power Source | 3500mAh lithium battery |
Battery Life | 4–5 hours |
Camera Type | Dual Lens |
Probe Diameter | 0.21 in (5.5 mm), 0.31 in (8.0 mm) |
Probe Length | 1 m, 3 m, 5 m |
Depth of Field | Straight: 1.18–3.15 in, Side: 0.79–1.97 in |
Field of View | Straight: 80°, Side: 78° |
Megapixels | 1.0 MP |
LED Lights | 6 (Straight), 1 (Side) |
Probe Stiffness | Flexible and sturdy |
Water Resistance | IP67 rated |
- Endoscope Monitor
- Detachable Dual-Camera Probe
- Type-C Charging Cable
- 32GB Micro SD card (Installed)
- Hard Plastic Case with foam infill
- User Manual
