Integrated HD CCTV Pipe Inspection Camera with Large 10.1 inch LCD Screen
- High definition 1920 x 1080 pixel camera with 8x zoom function
- One touch video/audio recording and image capture
- Integrated 30m 4-core coaxial cable with 6.3mm diameter
- 10.1” high brightness LCD screen with 1280 x 800 pixel resolution
- Keyboard for text input and storage box for accessories
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
This Integrated HD Pipe Inspection system from UK Inspection Camera has a large 10.1” high brightness colour LCD screen with 1280 x 900 pixel resolution and a sunshade. Video and images can be stored to an SD card, maximum capacity 256Gb, USB stick or Type C OTG card reader.
With one touch video/audio recording and image capture, this system is easy to use. Videos are stored in AVI format, whilst images are stored as JPEGs. HDMI output allows video/audio recordings to be transmitted to compliant devices. A 6000mAh 12v rechargeable battery provides 4 hours duration.

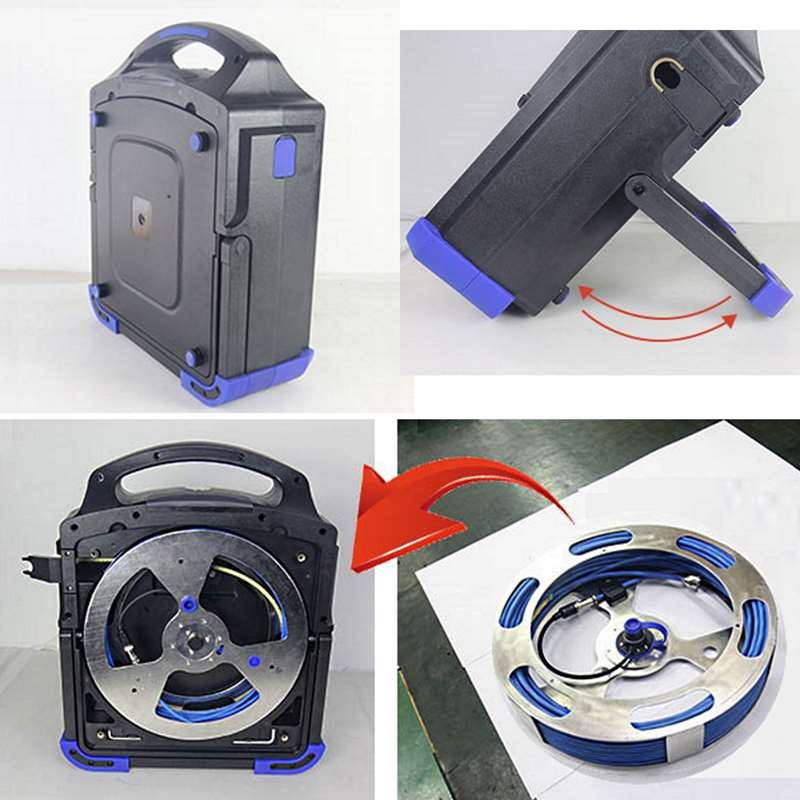

A 30m 4-core coaxial cable with 5mm diameter is built in, with easy replacement of the coil. The digital counter can easily be switched between metres and feet, or reset.

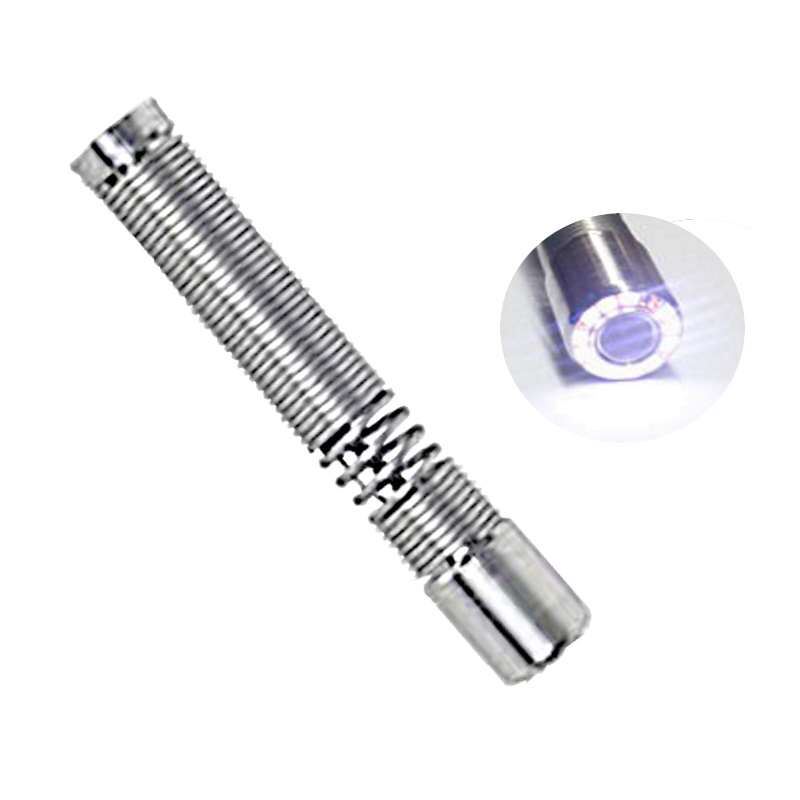

A 23mm camera with 1/2.9” Sony CMOS sensor, 105° viewing angle with high definition 1920 x 1080 pixel resolution, 12 adjustable LEDs, sapphire glass lens and 8x zoom completes the package. The camera head is IP68 rated which is resistant to dust, dirt, sand and to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes. Two skids are included – 40mm and 80mm.
This Pipe Inspection camera is suitable for pipes with a 30-200mm diameter. A keyboard provides text input and storage box provides storage for accessories.
| Attribute | Value |
| Camera Diameter | 23mm |
| Cable length | 40m |
| Monitor Size | 10 inch |
| Battery Size | 6000 mAh |
| Cable Diameter | 5mm |
| Case Type | All in one enclosed Unit |
| Keyboard | Yes |
| Self-leveling head? | Yes |
| Sonde (512Hz) | Yes |
| Microphone | Yes |
| IP Rating - Camera | IP68 |
