Breakthrough Thermal Imaging Endoscope with 6" Touchscreen & 4-Way Articulation – Redefining Precision Inspections

Discover a revolutionary Thermal Imaging Endoscope with a 2m IP67 rated probe and 6" touch LCD screen. Ideal for industrial, automotive, and HVAC inspections, it accurately measures temperatures from -20°C to 150°C while providing crystal clear imagery and reliable performance.

Table of Contents

• 1. Introduction
• 2. Key Features Overview
• 3. In-Depth Feature Breakdown
• 4. Industry Applications
• 5. Product Specs & Technical Sheet
• 6. What’s Included in the Box
• 7. Why This Endoscope Stands Out
• 8. Real World Use Cases
• 9. FAQs
• 10. Conclusion & Call to Action

3. In-Depth Feature Breakdown

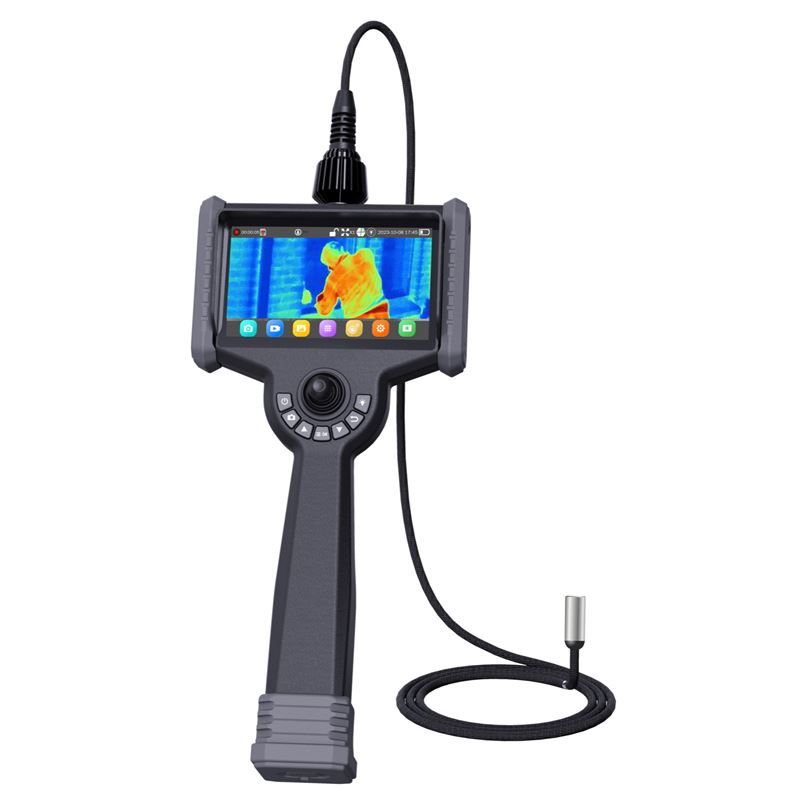

A. 6” HD IPS Touchscreen Display

The wide-angle HD LCD screen makes it incredibly easy to identify heat signatures, fluid leaks, electrical faults, or blockages. Touch-responsive and daylight visible, this screen gives professionals real-time insights without external monitors.

B. Joystick-Controlled 4-Way Articulation

With 4-way flexible articulation, you can explore engines, pipes, or wall cavities from angles that traditional scopes can't reach. Smooth, joystick navigation eliminates the need for awkward hand adjustments.

C. Rugged IP67 Waterproof & Dustproof Probe

Built to handle water splashes, dust, and extreme temperatures, the 2m probe with a 16.5mm camera head ensures robust operation in the harshest industrial conditions.

D. Precision Thermal Detection

Temperature measurements from -20°C to 150°C, with real-time hot spot detection and adjustable sensitivity levels, give you a precise view into electrical systems, machinery, and thermal insulation performance.

4. Industry Applications

Sector	Use Case
Automotive	Engine checks, oil leak detection, overheating diagnosis
HVAC	Duct inspections, air flow checks, thermal leaks
Construction	Wall cavity inspections, moisture intrusion detection
Aviation	Engine thermal scans, preventative maintenance
Security	Search operations, covert surveillance
Electrical	Circuit breaker and fuse box thermal checks

5. Product Specs & Technical Sheet

Probe Length	2 metres
Camera Head	16.5mm, front view
DOF/FOV	0 to ∞ / 120°
Articulation	4 Way, Joystick
Temp Range	-20°C to 150°C
Screen	6" IPS HD Touch LCD
Battery Life	Approx. 4 hours
Output Ports	HDMI, Micro USB, TF Slot
Waterproof Rating	IP67 (probe only)
Storage	32GB (Included)

6. What’s Included in the Box

• Thermal Imaging Endoscope Monitor
• 2m Articulating Probe
• 32GB SD/TF Card
• Protective Carry Case
• Tripod Stand
• USB Card Reader
• USB C Charging Cable
• Instruction Manual

7. Why This Endoscope Stands Out

Unlike conventional inspection cameras, this thermal imaging endoscope combines clarity, articulation, and temperature sensing into one tool. It eliminates guesswork, improves diagnostic efficiency, and is ready for any field operation. Whether it's a clogged pipe, an overheating circuit, or a hidden heat leak—this device finds it fast and accurately.

8. Real-World Use Cases

• A mechanic diagnosing heat spikes in a high-performance engine block.
• An HVAC technician locating unseen insulation leaks in ductwork.
• An electrician pinpointing hot breakers in a commercial panel.
• A law enforcement officer scanning hidden compartments in a vehicle.

9. Frequently Asked Questions

Q1: Is this device suitable for underwater inspections?
A1: The probe is IP67 rated and waterproof, but the monitor should not be submerged.

Q2: How is it powered?
A2: It includes a rechargeable battery with USB-C charging and offers about 4 hours of use per charge.

Q3: Can it store video or only still images?
A3: It can capture both images and videos directly to the 32GB SD/TF card.

Q4: What’s the articulation angle range?
A4: Full 4-way articulation, allowing a wide inspection radius in all directions.

Q5: Is it Mac/PC compatible for data transfer?
A5: Yes, footage can be transferred via USB or card reader to both Mac and Windows.

Q6: Does it require software installation?
A6: No installation needed—plug and play with any compatible system.

10. Conclusion

With superior thermal imaging, joystick articulation, and rugged durability, this Thermal Imaging Endoscope is more than a tool—it’s a diagnostic powerhouse. Whether you're maintaining high-stakes machinery or performing everyday inspections, it ensures precision, speed, and confidence on every job.
