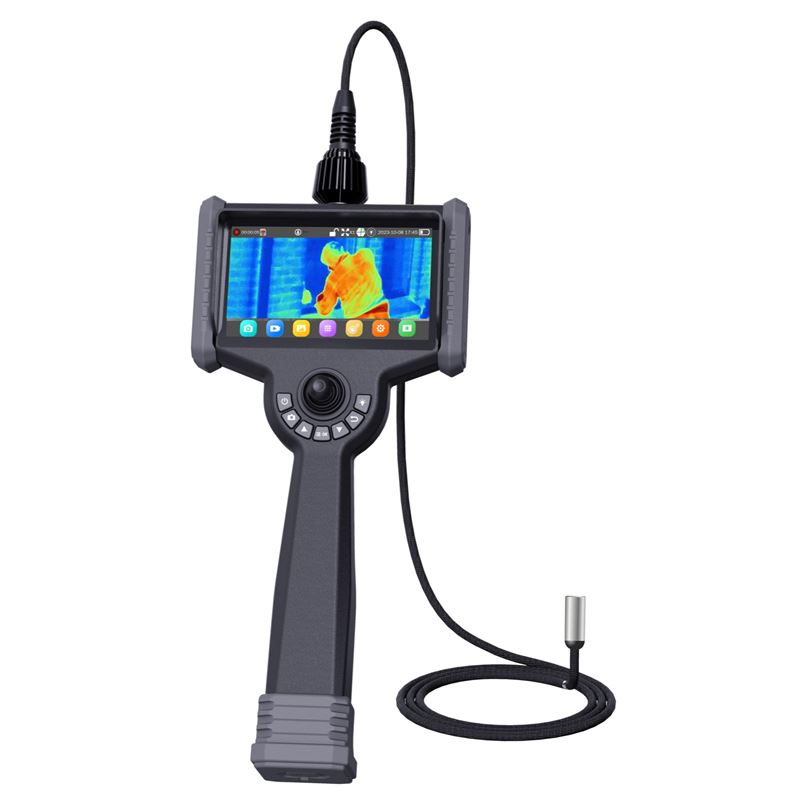

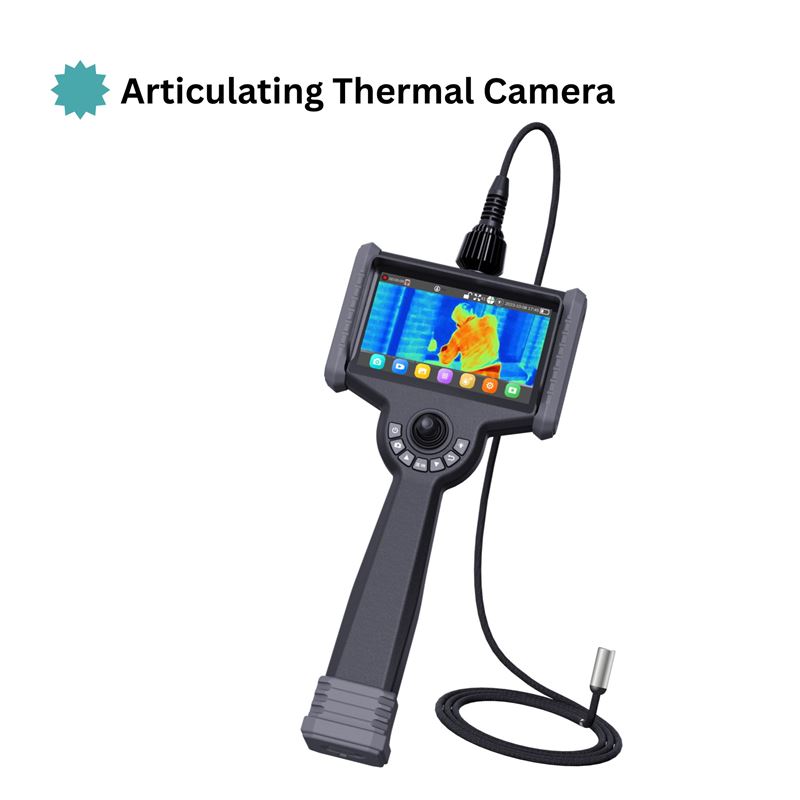

Thermal Imaging Endoscope with 2m Probe, 16.5mm Camera, 6" Touchscreen & 4-Way Articulation
- High Definition Thermal Detection: 6" IPS wide angle HD touch LCD screen provides clear thermal signatures in real time for precise industrial or automotive diagnostics.
- Versatile 4 Way Articulation: Joystick-controlled probe articulates in four directions, allowing thorough inspections in hard-to-reach areas such as pipes, engines, or HVAC systems.
- Durable and Weather Resistant: IP67 rated probe ensures reliable performance in harsh conditions, capable of operating at temperatures ranging from -20°C to 70°C.
- Accurate Temperature Measurements: Thermal sensitivity from -20°C to 150°C with adjustable accuracy levels, enabling detailed hot spot identification and advanced diagnostics.
- Convenient Data Capture: Includes a 32GB SD card and multiple output ports (HDMI, Micro USB, TF card slot), making it easy to record, transfer, and analyse inspection footage.
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
Experience cutting edge inspection technology with our Thermal Imaging Endoscope, designed for industrial, automotive, construction, and HVAC applications. Equipped with a 2m probe and 16.5mm camera head, this endoscope excels at revealing hidden thermal signatures in tight or challenging environments. The robust IP67 rated probe guarantees durability against water and dust, while the 6" IPS wide angle touch LCD screen delivers crisp, real time thermal visuals.
The intuitive 4 way joystick articulation ensures precise navigation for comprehensive inspections, helping professionals locate blockages, leaks, electrical faults, and hotspots swiftly. With a broad temperature measurement range from -20°C to 150°C, you can identify potential issues before they escalate, reducing downtime and costly repairs. The device also features USB C charging and provides a battery life of approximately 4 hours to keep you productive on the job.
Designed with convenience in mind, the endoscope comes complete with a 32GB SD card, protective case, tripod stand for the monitor, and all necessary accessories, ensuring you can get to work straight out of the box. Whether you are inspecting engines, conducting aviation checks, or carrying out security or law enforcement surveillance, this Thermal Imaging Endoscope delivers outstanding clarity, accuracy, and performance in every scenario.

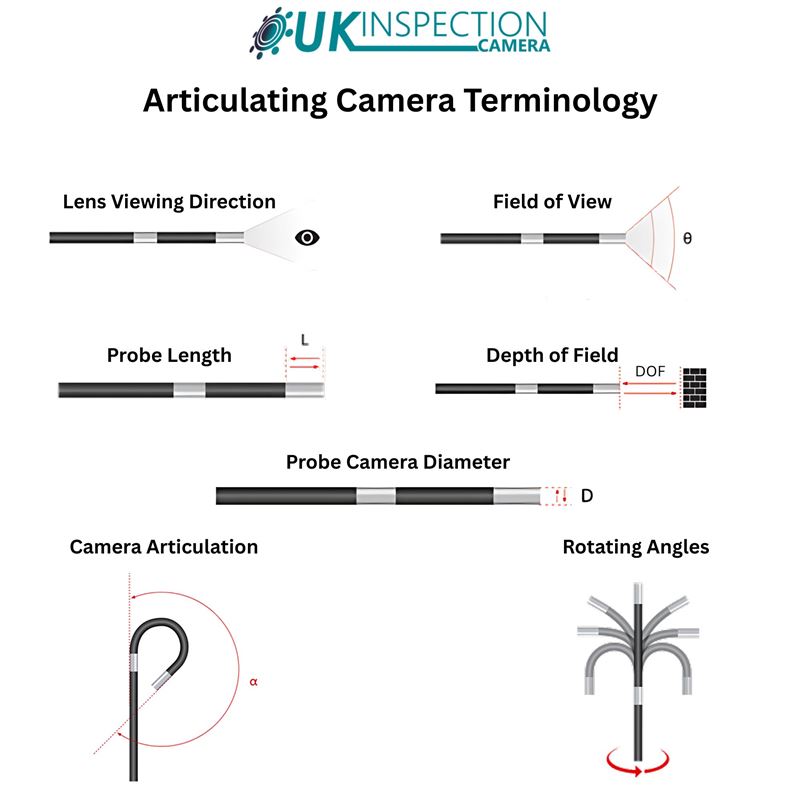

| Attribute | Value |
| Cable Length (Metres) | 2 Metres |

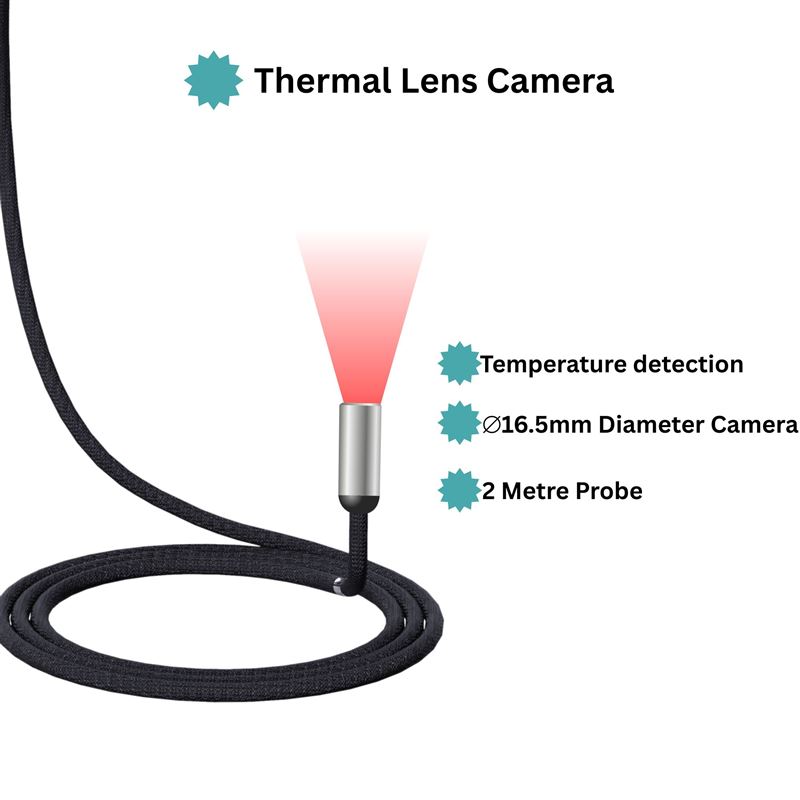

| Camera Diameter | 16.5mm |
| Adjustable LED's | Yes |
| Depth of Field (DOF) | 0 to ∞ |
| Field of View (FOV) | 120° |
| View Angle | Front View, Single Lens |
| Temperature Measurement Accuracy | -20°C ±7°C, 0–35°C ±5°C, 35–150°C ±3°C |
| Screen Size | 6 inch IPS Screen |
| IP Rating | IP67 |
| Articulation | 4 Way - Joystick |
| Charging Interface | USB-C |

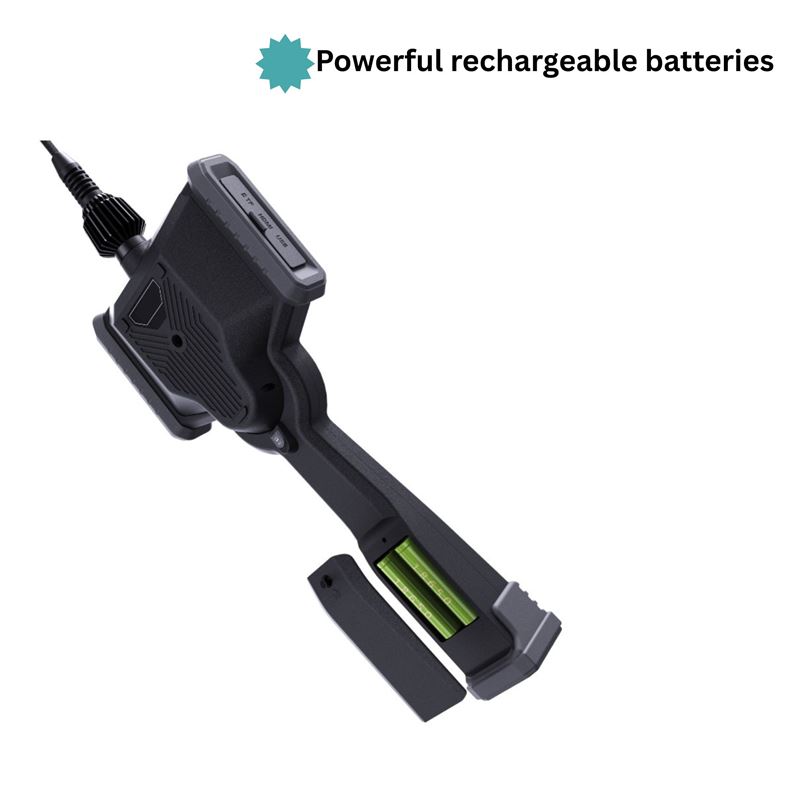

| Battery Run Time (Hours) | 4 hours |

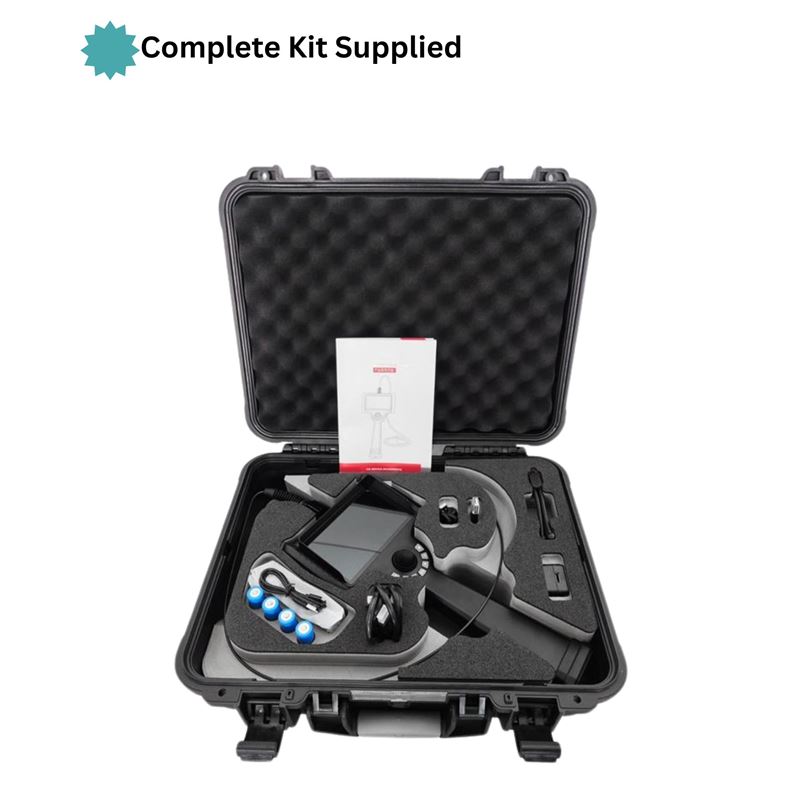

What’s in the Box
- Thermal Imaging Endoscope Monitor

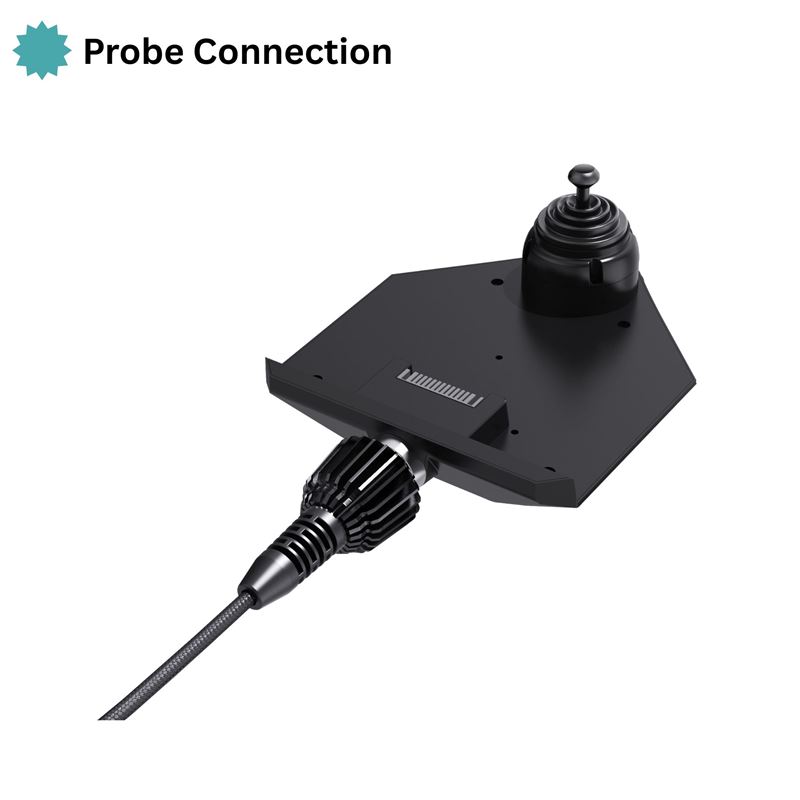

- 2m Articulating Probe
- 32GB SD Card / TF Card

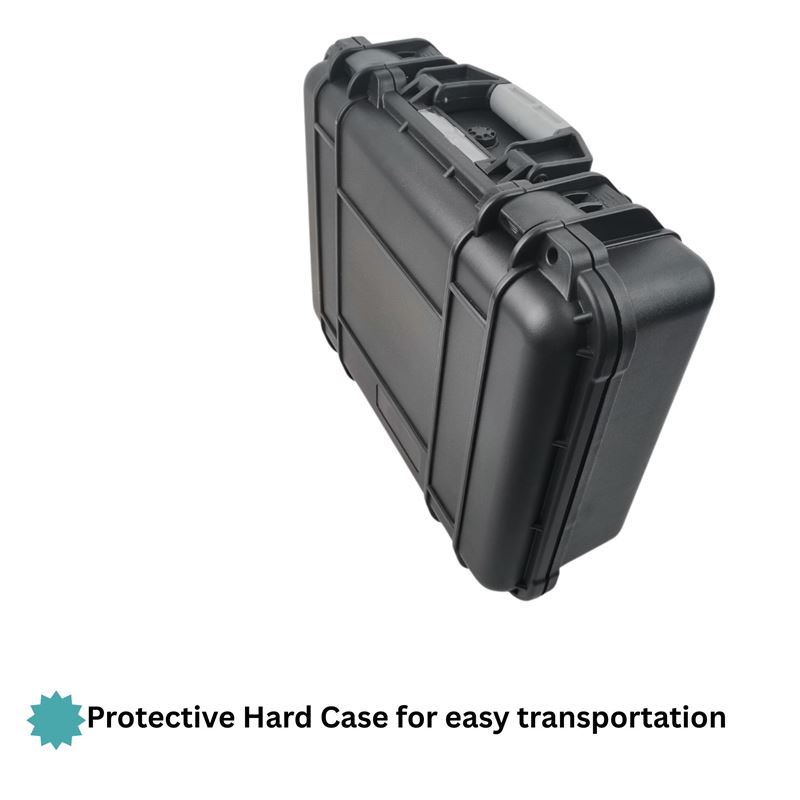

- Protective Carry Case
- Tripod Stand (for Monitor)
- USB Card Reader
- USB C Charging Cable
- Instruction Manual
| Industry | Applications |
| Automotive | Inspecting engine components, detecting leaks or blockages, diagnosing overheating issues |
| HVAC | Checking ductwork, detecting airflow problems, locating insulation gaps and temperature leaks |
| Construction | Examining walls, identifying moisture intrusion, electrical faults, and structural defects |
| Aviation | Aircraft maintenance, detecting hot spots in engines and systems for preventive measures |
| Security and Law Enforcement | Monitoring concealed areas for surveillance, checking for hidden devices or prohibited material |
| Plumbing | Identifying pipe blockages, corrosion, or leakage without invasive demolition |
| Electrical | Pinpointing hotspots in wiring, breakers, and panels to prevent potential hazards |
