UV Fluorescence Endoscope 6" FHD Touch Screen IP67 Probe
- 6" Full HD touchscreen with 1080p resolution
- 365nm UV light for fluorescence inspection

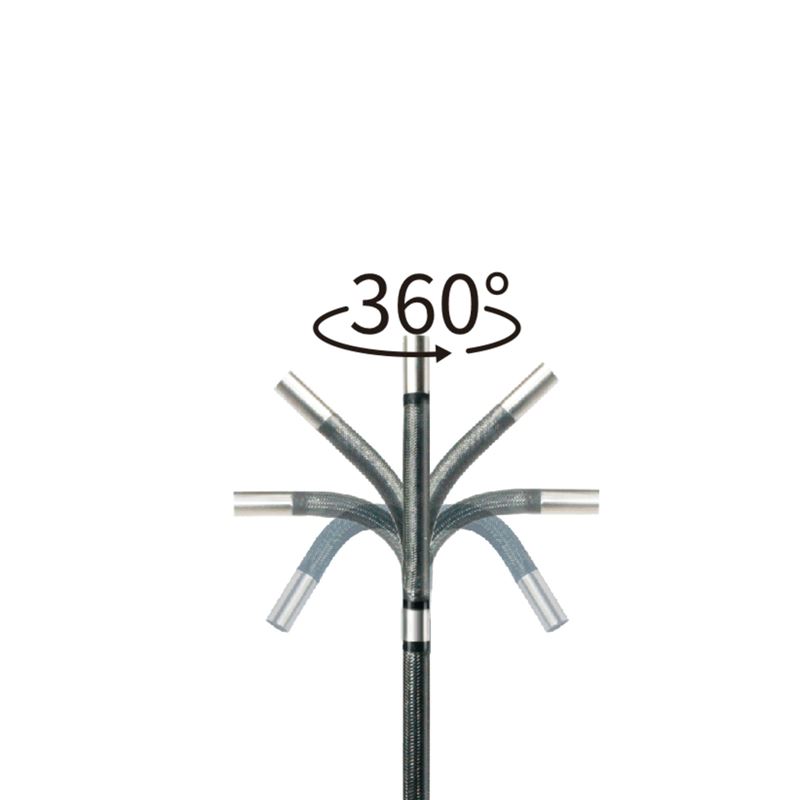

- 360° articulating flexible probe design
- IP67 waterproof probe for harsh environments
- Up to 8 hours battery with hot-swap support
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

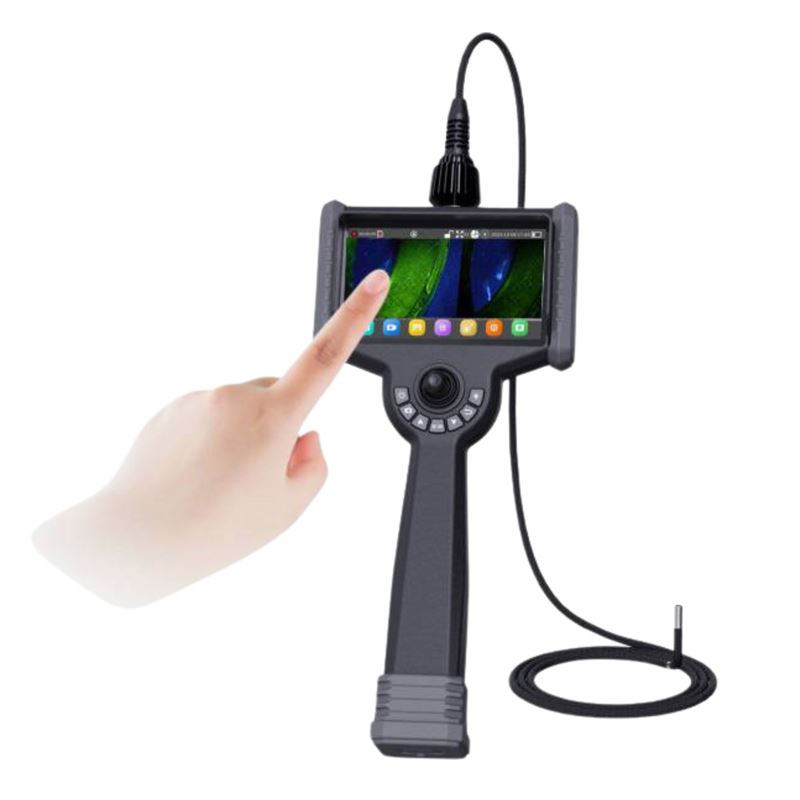

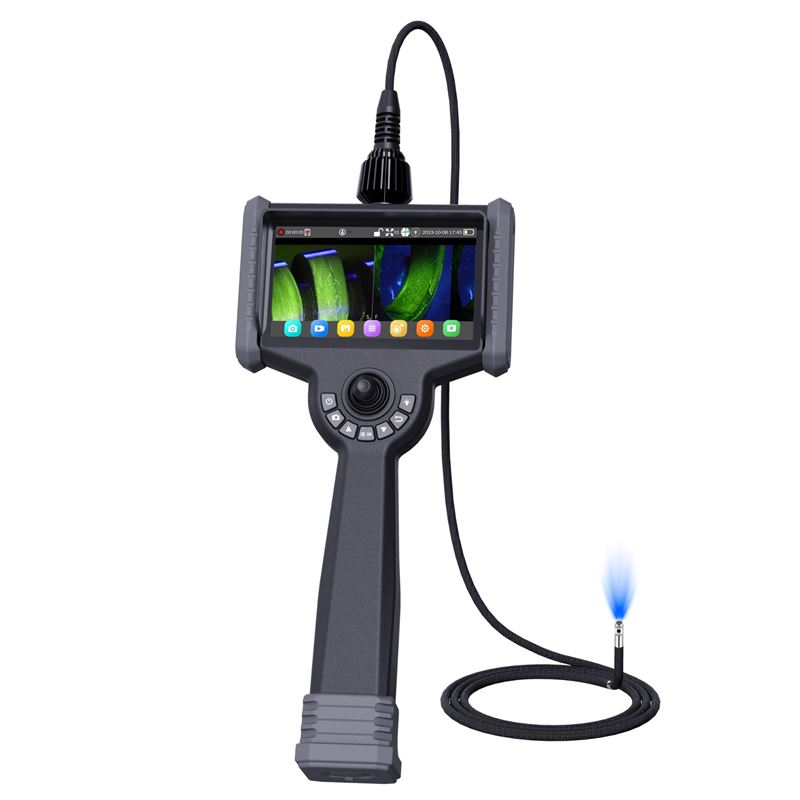

The UV Fluorescence Endoscope is a professional-grade inspection camera designed for precision diagnostics in industrial, automotive, and specialist inspection environments. Featuring a 6-inch Full HD touchscreen display with 1920x1080 resolution, this advanced endoscope delivers crystal-clear imaging, allowing users to detect fine details with ease.

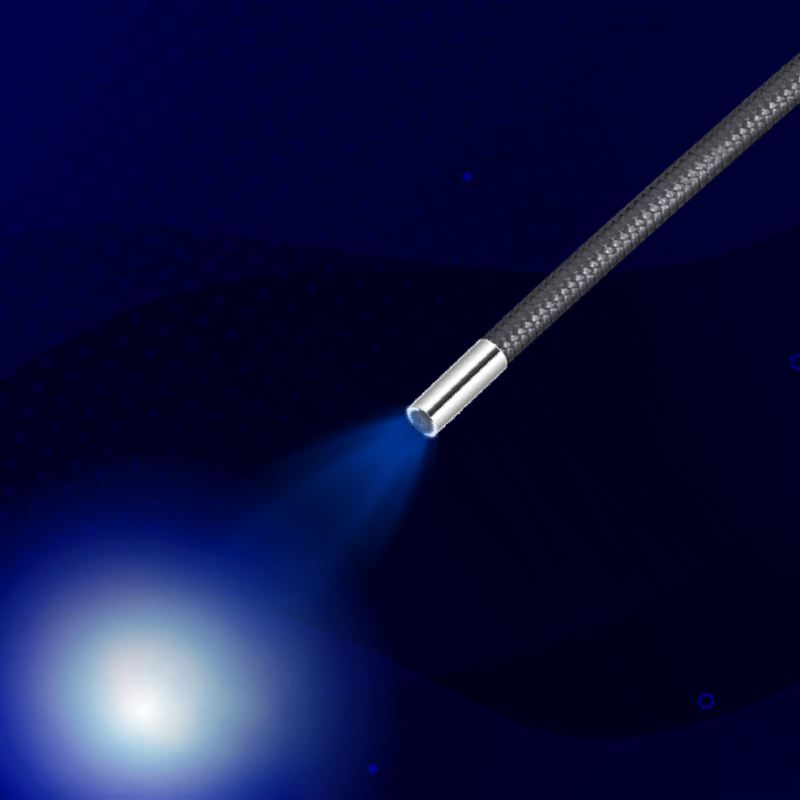

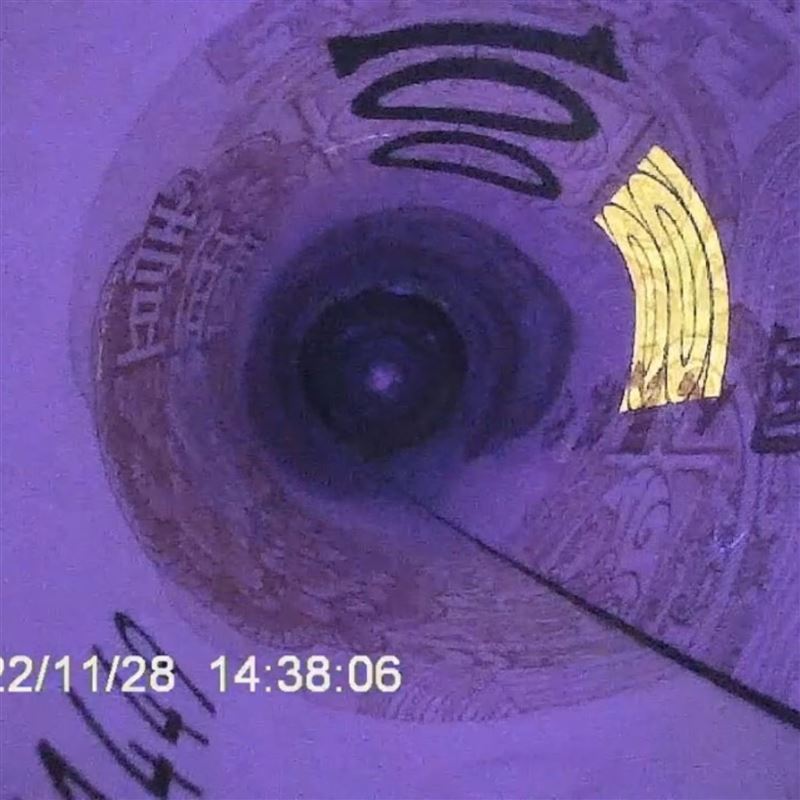

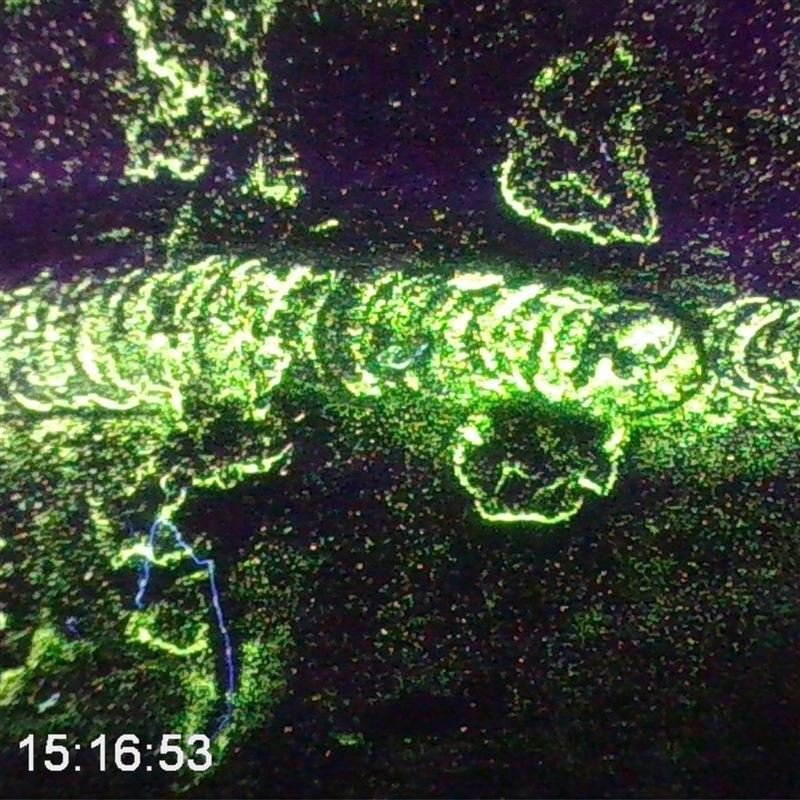

Equipped with a high-performance 365nm UV illumination system and 1MP camera, this device is ideal for fluorescence detection, leak identification, contamination inspection, and non-destructive testing. The flexible tungsten braided insertion tube and 360-degree articulating probe provide exceptional manoeuvrability, enabling access to hard-to-reach areas without dismantling equipment.
Built for durability, the IP67-rated probe ensures reliable performance in harsh environments, while the host unit’s IP54 rating protects against dust and splashes. With up to 8 hours of battery life and hot-swappable battery support, uninterrupted operation is guaranteed even during extended inspections.
The system supports image capture in JPEG format and video recording in AVI, with built-in storage and TF card expansion up to 128GB. Advanced features such as image comparison, measurement tools, zoom, flipping, and watermarking enhance usability for professional reporting and analysis.
Perfect for engineers, technicians, and inspectors, this UV endoscope combines cutting-edge imaging technology with robust construction, making it a reliable tool for demanding inspection tasks.
| Attribute Name | Value |
| Model | P-UV60 Series |
| Display | 6" FHD Touchscreen |
| Resolution | 1920x1080 |
| Camera Pixel | 1MP |
| Viewing Angle | 120° |
| Depth of Field | 10mm - 200mm |
| Illumination | 365nm UV LED Fibre Optic |
| Probe Diameter | 6mm |
| Articulation | 360° Full Direction |
| Insertion Tube Length | 1m / 2m / 3m |
| Material | Tungsten Braided Flexible Tube |
| Battery Life | Up to 8 Hours |
| Storage | Built-in + TF Card (Max 128GB) |
| Protection Rating | Host IP54, Probe IP67 |
| Operating Temperature | -10°C to 50°C (Host) |
| Probe Temperature | -20°C to 70°C |
| File Formats | JPEG (Image), AVI (Video) |
| Connectivity | HDMI, Type-C, TF Card, Headphone Jack |
| Weight | 3.9kg (Packing) |
