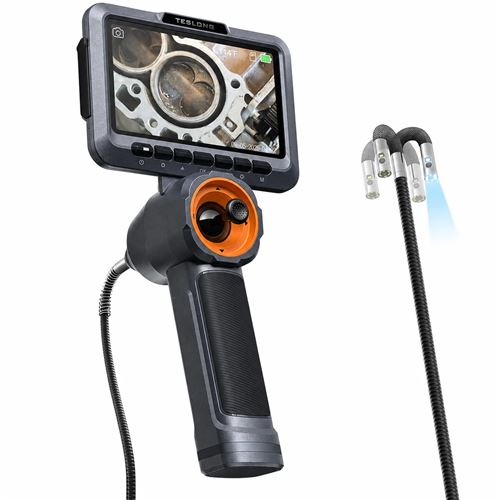

Teslong TF550 4-Way Articulating Borescope
- 4-way articulation with up to 210° camera tip movement
- Single or Dual lens cameras for improved inspection coverage
- Slim 6.5 mm IP67 probe with 1.5 m working length
- 5-inch IPS display with 1080p photo and video recording
- Wireless viewing plus up to 4 hours battery runtime
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

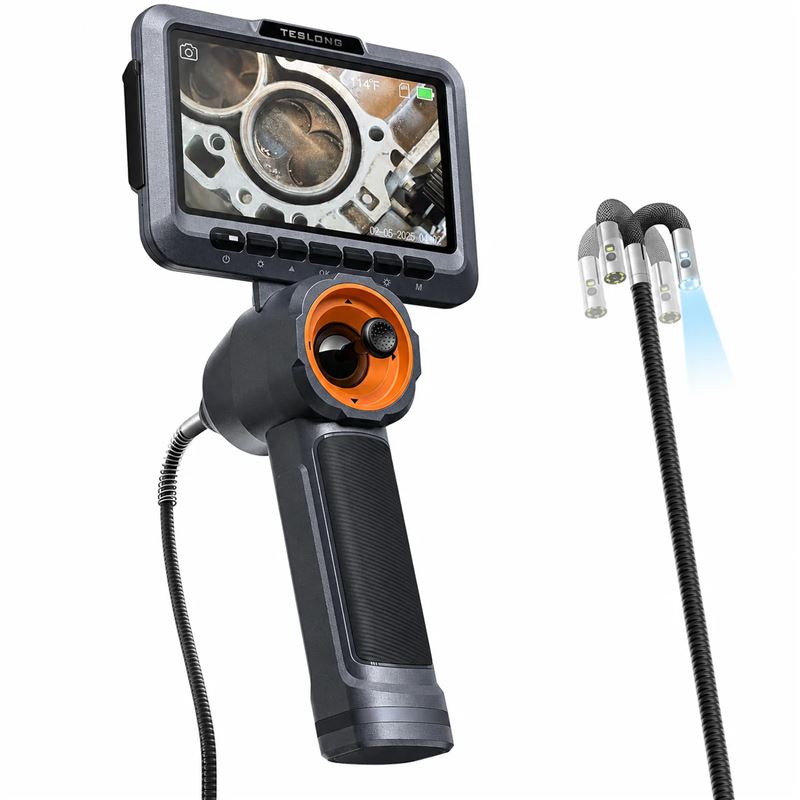

The Teslong TF550 4-Way Articulating Borescope is a professional inspection camera designed for detailed visual inspection inside engines, machinery, pipework, cavities and other difficult-to-access areas.

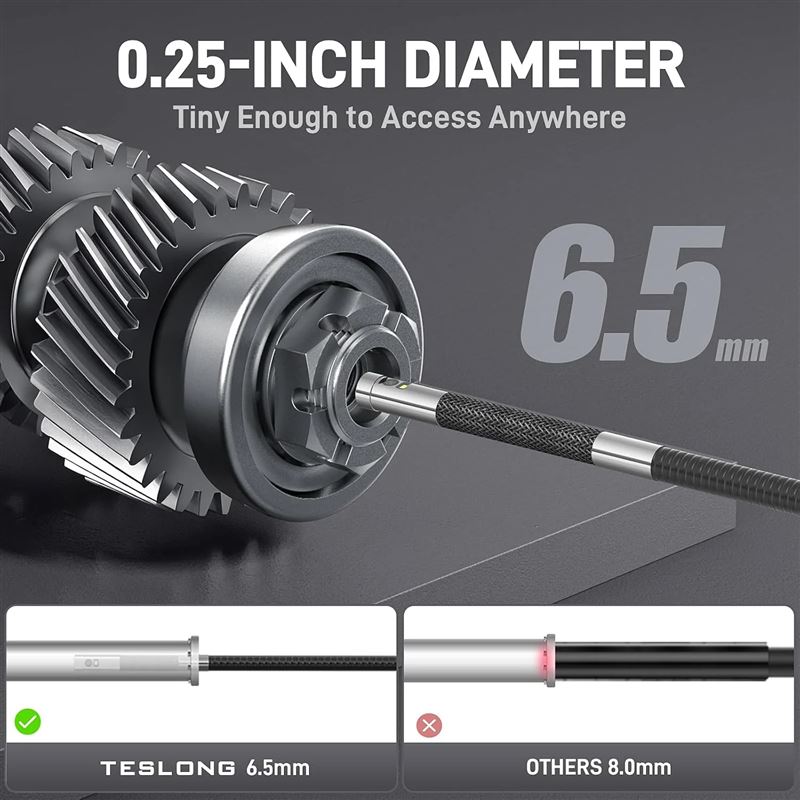

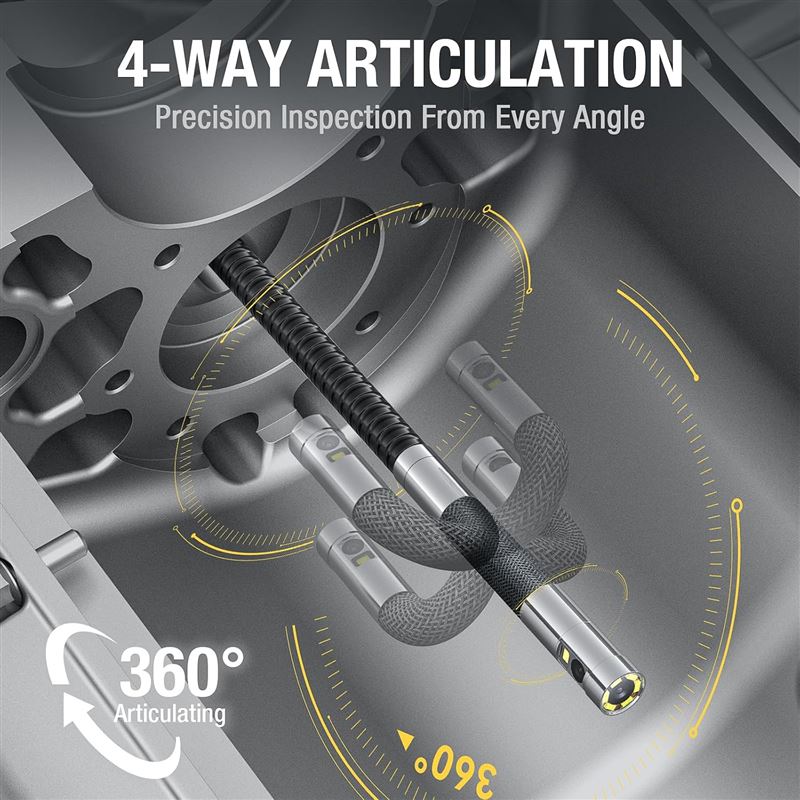

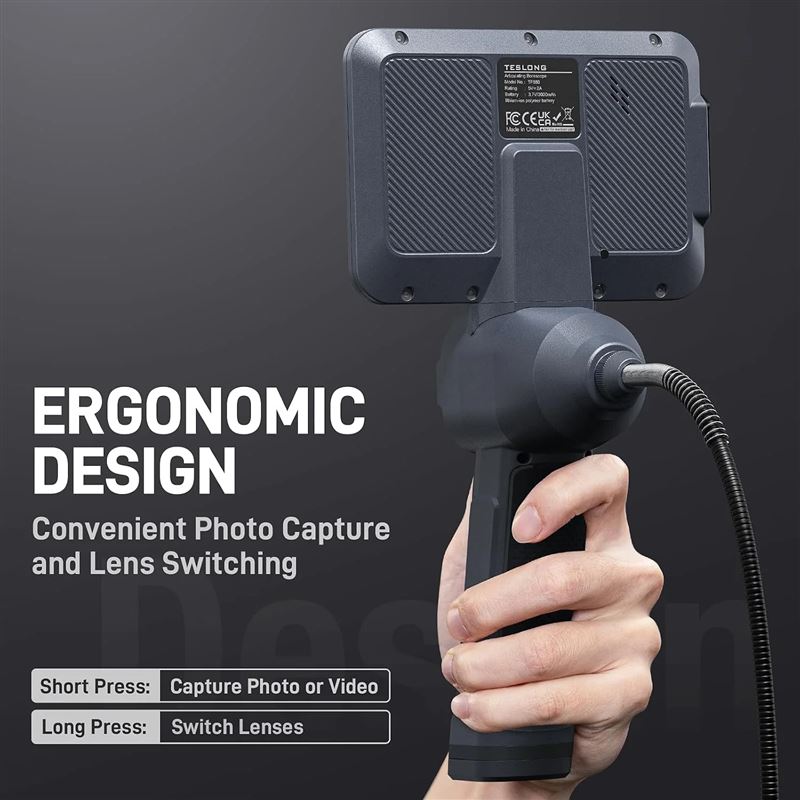

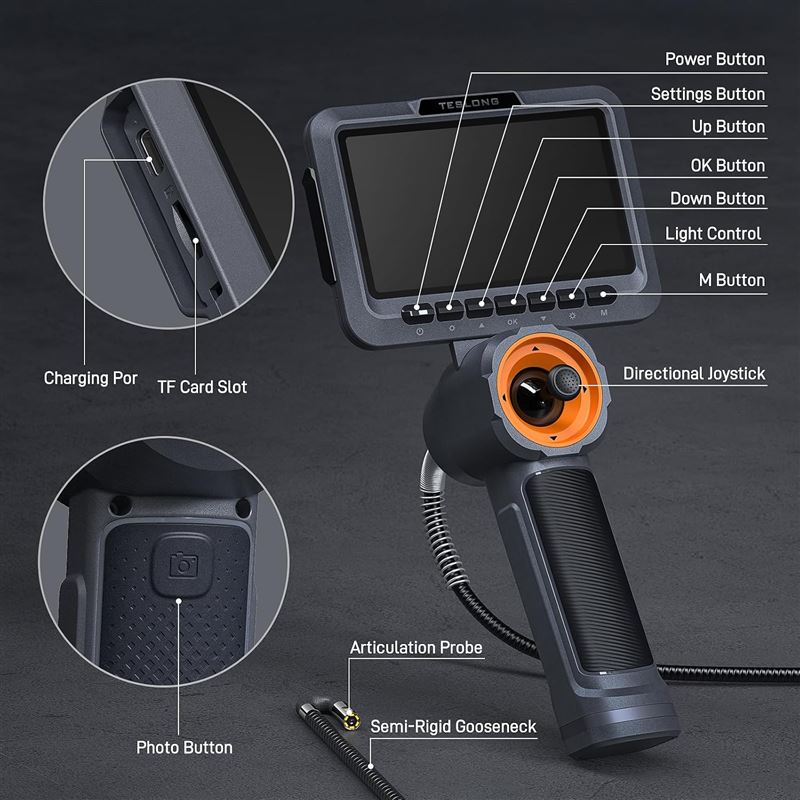

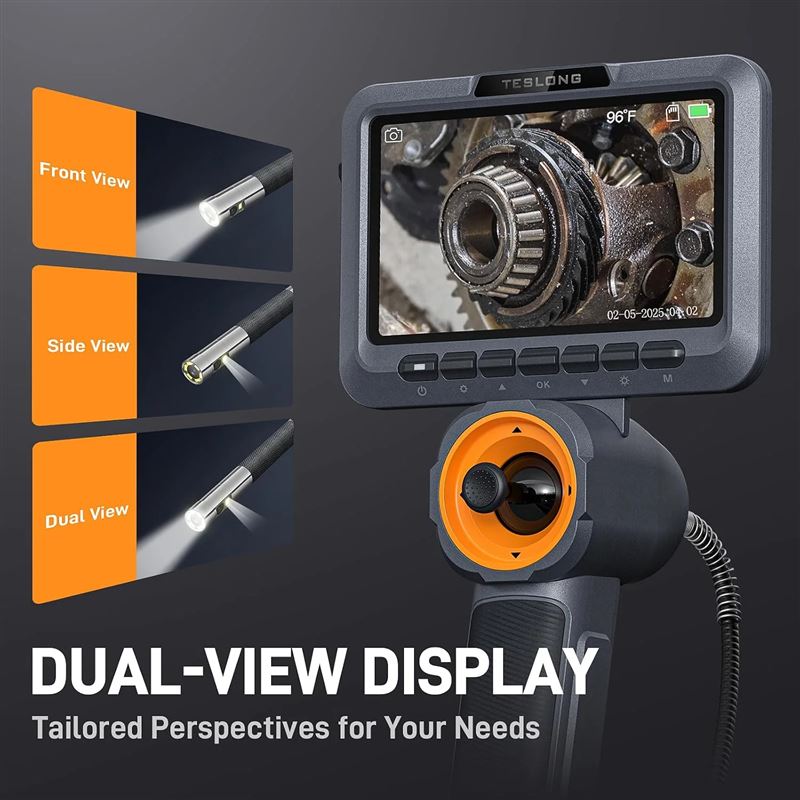

At the heart of the TF550 is a slim 6.5 mm camera probe with precise four-way articulation. Controlled using the integrated joystick, the camera tip can articulate up to 210°, allowing operators to look around components, behind obstructions and into areas that conventional fixed borescopes can struggle to inspect. Switch between the front and side cameras to gain multiple viewing angles without repeatedly repositioning the probe.
Inspection footage is displayed on the integrated 5-inch IPS screen, while Full HD 1920 x 1080 photo and video recording makes it easy to capture evidence for maintenance records, inspection reports and further analysis. Wireless connectivity also enables live inspection images to be shared with a compatible phone or tablet.
The 1.5 metre semi-rigid probe features IP67 protection and can retain its shape to help guide the camera through confined spaces. Adjustable 6+1 LED illumination provides visibility within dark components and cavities.

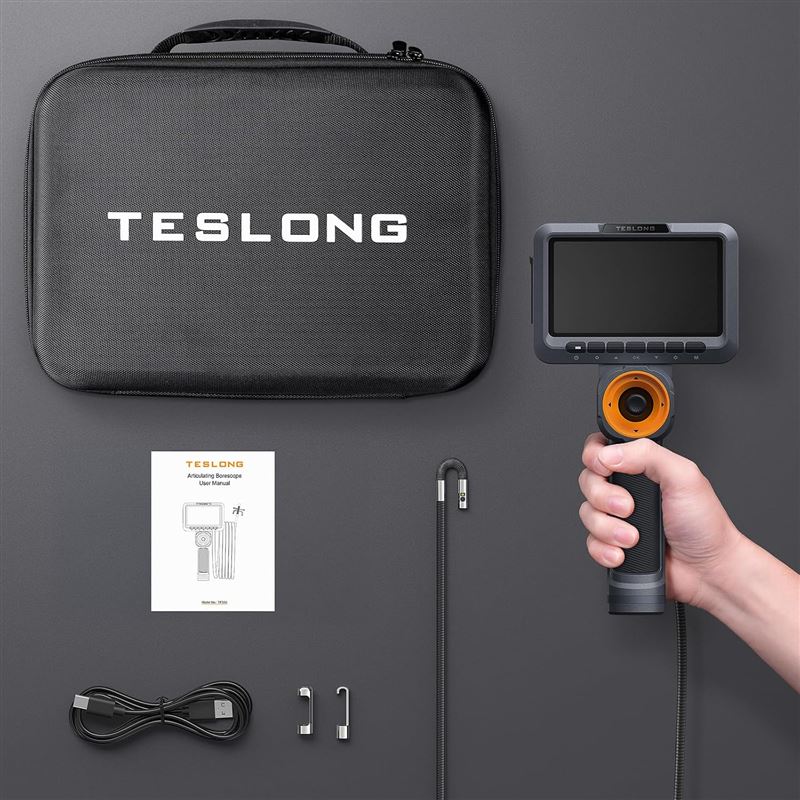

A rechargeable 3000 mAh lithium battery provides up to four hours of operation, while the supplied 32 GB memory card provides convenient onboard storage. Temperature monitoring, a protective carry case and included retrieval accessories make the TF550 a versatile professional articulating borescope for automotive, engineering, maintenance and industrial inspection applications.
| Attribute Name | Value |
| Brand | Teslong |
| Model | TF550 |
| Product Type | 4-Way Articulating Borescope |
| Probe Type | Single Or Dual-Lens Articulating Probe |
| Articulation | 4-Way, Up To 210° |
| Probe Diameter | 6.5 mm |
| Probe Length | 1.5 m |
| Camera | Dual 1.0 MP, 1/9 CMOS |

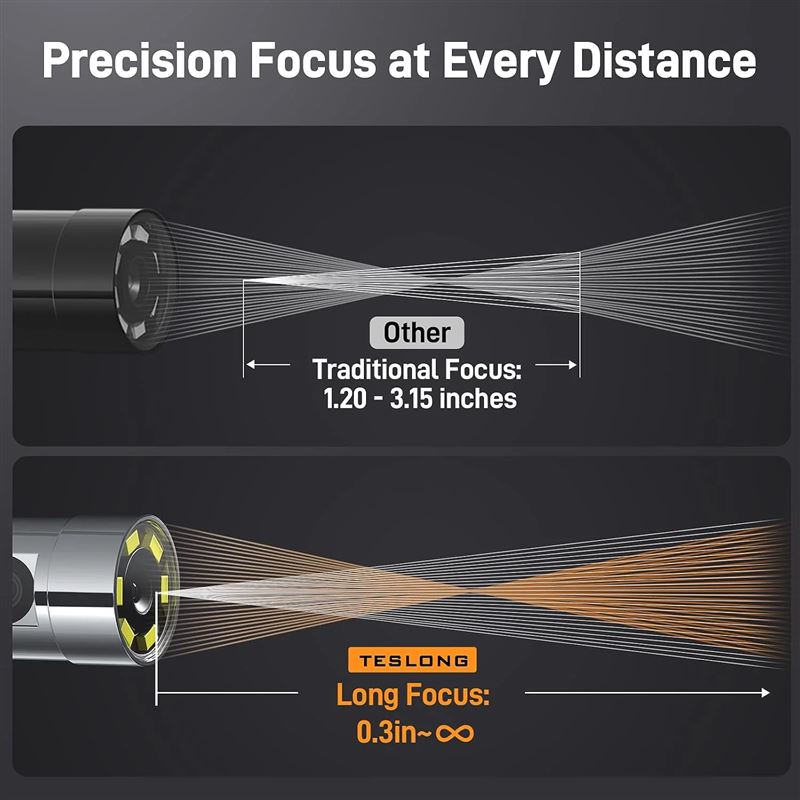

| Depth Of Field | 1 cm To Infinity |
| Field Of View | 90° |
| Illumination | 6+1 Adjustable LEDs |
| Display | 5-Inch IPS LCD |
| Recording Resolution | 1920 x 1080 Photo And Video |
| Probe Protection | IP67 |
| Battery | 3000 mAh Rechargeable Lithium Battery |
| Operating Time | Up To 4 Hours |
| Wireless Sharing | Live Images To Compatible Phone Or Tablet |
| Memory | 32 GB Memory Card Included |
| Probe Temperature Range | 0°C To 45°C |
| Temperature Protection | Alert 74°C, Shutdown 84°C, Restart Below 60°C |
| Warranty | 12 Months |
