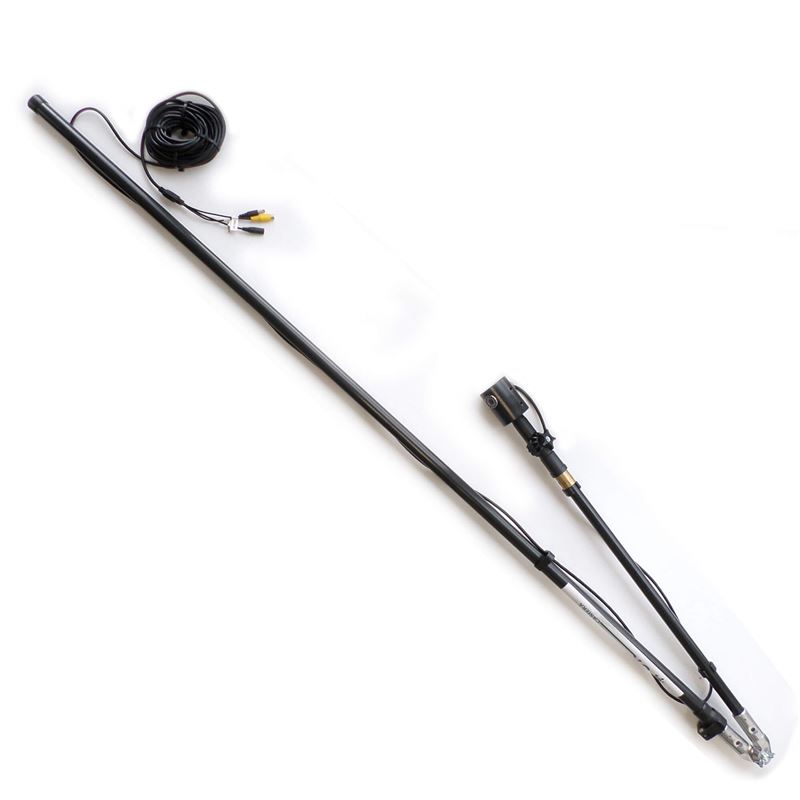

Underwater Inspection System with Beam Reach Extension

Our unique and patented underwater inspection system, designed specifically as a result of many requests over the last 10 years of manufacturing underwater inspection systems.
This specific design can be adapted for many uses. The main purpose of the reach system is to be able to vertical drop the pole into water with an extra Horizontal reach to look directly under a boat hull or cavity within the water or structure being inspected. A solution designed by us means that you can also have other modifications to it if required with relative ease. Talk to us about your ideas if you have specific requirements.
There are many reasons to employ this underwater inspection system, from the survey of hulls for leisure or commercial boats in the marine industry to more commercial reasons within the following environments –

- River or canal networks
- Water Authorities
- Sprinkler Tanks and Fire Preventions systems
- Offshore oil industry
- Buoyage visual inspections
- Lock gates and harbour equipment inspection
- Swimming training
- Water reservoir or tank inspections
- Life saving or search and rescue applications

- Filtration gates or outlet gates in Sewerage or cooling water

Whilst this equipment has been designed for use in water or underwater inspection, it can easily be used out of water and for hard to reach places overhead. Ideally suited for surveys of roofs or difficult to reach locations above ceiling tiles of voids.

Pole Specifications

• 80% Carbon Composite Pole
• Insulated Glass Fibre Base section, for non Conductive properties
• Strong Locking Clamps
• Durable resin finish for Sea and freshwater use
• Operating temperatures between -30C and +80C
• Lightweight – at only 4kg for the longest pole!
• Between 4 and 11 Metre lengths
• Beam Reach is 50cm long (other lengths available )

Camera Specification

• Stainless Steel Colour Camera, Waterproof
• Hi Resolution 940 TVL
• Remarkable low Lux performance of 0.01 Lux without LED
• Rugged strong and Durable
• Specially designed for underwater monitoring applications
• Bright Crisp colour Images, even in the dark
• 8 LED Lights – white in Colour
• Measures 24mm(D)x40mm(L)

Monitor Specifications

• 7” colour Monitor
• DVR record to SD card – MPG and AVI formats
• Playback and storage of videos on or off screen
• JPG photo ability
• Aluminium Fligh case housing with lock
• Built-in lion battery – 5hrs duration
• 17cm x 12cm x15cm – 500g in weight
