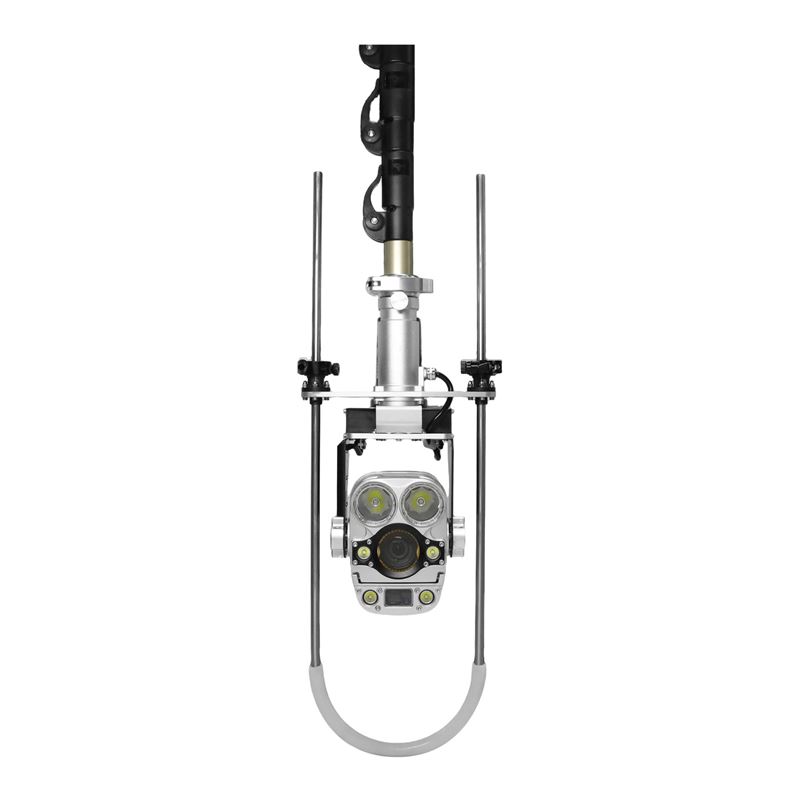

Long-Range Optical Zoom Inspection Periscope Camera
- Genuine 30x optical zoom for long-distance inspections
- 4MP camera provides detailed 2560 x 1440 imaging
- Motorised pan and tilt camera with one-button reset
- Integrated laser ranging and automatic tilt detection
- IP68 camera with six powerful inspection LEDs
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products
Inspect large pipes, tanks, chambers and confined spaces from a safe working position with this professional long-range optical zoom inspection periscope. Designed for rapid visual surveys, the system combines a 4-megapixel camera with powerful 30x optical zoom, allowing operators to examine distant defects without entering the structure or deploying a crawler camera.
The electrically controlled camera head provides movement up to 45° upwards, 90° downwards and 30° to either side. This makes it easier to inspect pipe walls, chamber connections, tank surfaces and other areas outside the direct line of sight. Six high-power LEDs provide selectable long, medium and short-range illumination for use in dark industrial environments.
Integrated laser ranging helps operators estimate the distance to a defect or point of interest. Automatic tilt detection, software-controlled electric defogging and one-button camera position reset support efficient, repeatable inspections.

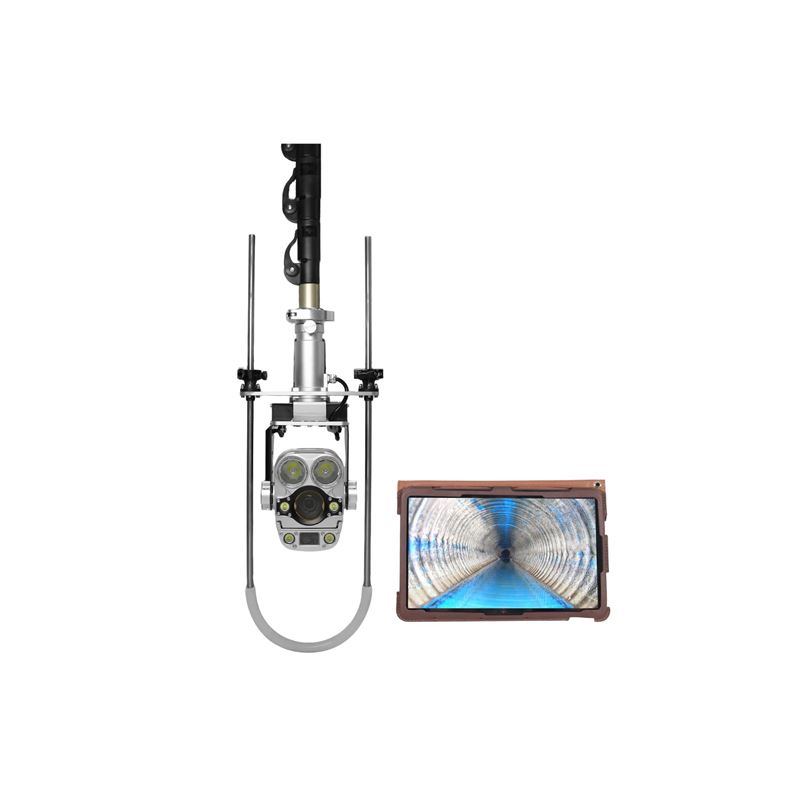

Live video is transmitted wirelessly over Wi-Fi to a compatible tablet, providing convenient camera control and a clear 2560 x 1440 inspection image. The IP68-rated camera assembly is mounted on an anti-drop telescopic pole, supplied in a standard 7-metre configuration with optional 9-metre and 12-metre versions available.
Suitable for large drainage pipes, sewers, culverts, tanks, industrial vessels, silos and access chambers, this long-range inspection camera helps assess inaccessible areas quickly while reducing unnecessary confined-space entry.
| Attribute Name | Value |
|---|---|
| Product Type | Long-range optical zoom inspection periscope |
| Camera Resolution | 2560 x 1440 pixels, approximately 4 megapixels |
| Optical Zoom | 30x |
| Digital Zoom | 12x |
| Combined Zoom | Up to 360x |
| Recommended Pipe Diameter | DN150 to DN3000 |
| Upward Tilt | 45° |
| Downward Tilt | 90° |
| Horizontal Movement | 30° left and 30° right |
| Position Reset | One-button reset |
| Lighting | Six high-power LEDs |
| High Beam | 2 x 3W LED |
| Medium Beam | 2 x 3W LED |
| Low Beam | 2 x 3W LED |
| Laser Ranging | Integrated |
| Tilt Detection | Automatic, 0.5° correction accuracy |
| Defogging | Software-controlled electric defogging |
| Communication | Wireless Wi-Fi transmission |
| Camera Protection | IP68 |
| Standard Pole Length | 7 metres |
| Optional Pole Lengths | 9 metres and 12 metres |
| Pole Safety | Anti-drop function |
| Probe | Scaled U-shaped probe |
| Attribute Name | Value |
|---|---|
| Large Pipes | Long-range surveys of pipes from DN150 to DN3000 |
| Access Chambers | Inspect walls, connections and defects from above |
| Storage Tanks | Examine internal surfaces and distant components |
| Industrial Vessels | Remote visual inspection of inaccessible interiors |
| Sewers and Culverts | Rapid preliminary condition and blockage surveys |
| Drainage Networks | Inspect downstream pipework from a manhole |
| Silos and Hoppers | View internal structures without entering the space |
| Confined Spaces | Initial remote assessment before planning entry |
