Carry out an inspection survey of cavity walls to check for dry rot or pests, the condition of wall ties or cavity wall insulation with this inspection camera and 3.5” wireless monitor.
The camera is built into the side of a 300mm long stainless steel probe with 9mm diameter and provides a 90° viewing angle and resolution of 380 TV Lines. The probe is IP67 waterproof. Two high intensity LEDs with variable brightness provide lighting up to 1.5 metres.
The camera resolution is 640 x 480 with 3x zoom. It has a built-in rechargeable 1100 MAH/3.7v Li-ion battery with a charge time of 3 hours which will provide 3 hours of operation. The camera will accept a Micro SD card with a maximum 16Gb capacity. It will record pictures using the .jpg format and video, in .avi format.
The camera can be linked wirelessly to the 3.5” TFT-LED monitor at a speed of 2.4Ghz. The monitor itself also has recording capability and will take a Micro SD card with a maximum 32Gb capacity. The monitor also benefits from a rechargeable Li-ion battery and comes with a magnetic stand for a stable viewing platform.
This package comes complete with a carry case, mains charger, AV out and USB cables. The camera output uses NTSC (768 x 494) or PAL (752 x 582) formats.
Operating Temperature: 0°C – 45+°C
Operating Humidity: 15-85% RH

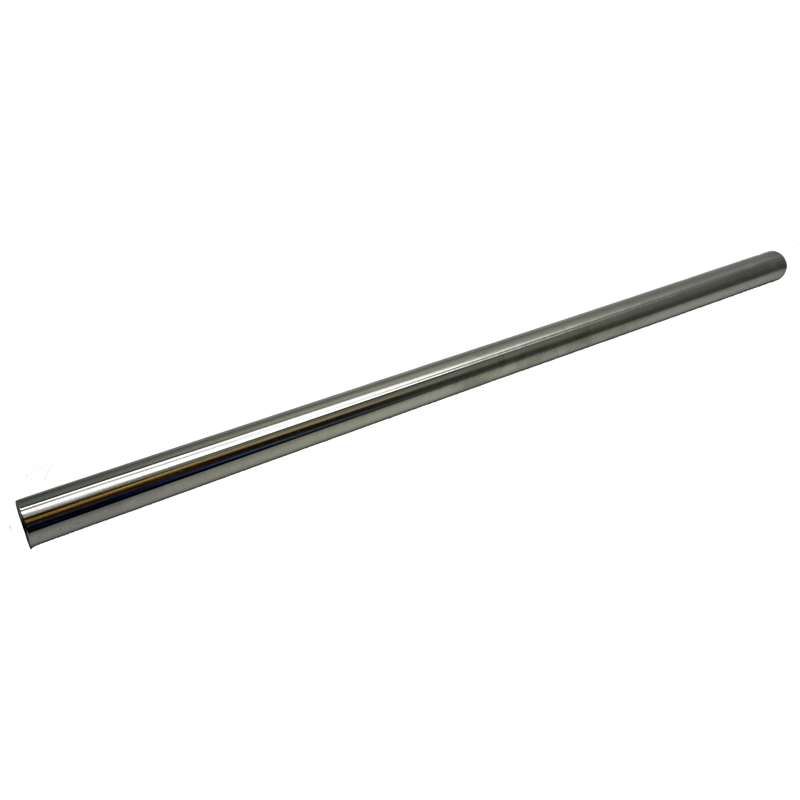

This is available with an Optional Stainless Steel Sleeve for the probe, which simply slides on to the end of it to protect the lens from excessive grit and rubble scratching it.
