4K Dual-View 10.1" Underwater Inspection Camera System with 2 Cameras & Split Screen
- Dual 5MP Sony IP68 stainless steel cameras
- Split or single-view 4K 10.1" IPS touch display
- Adjustable mounting stands for both cameras
- 12 LEDs per camera with 8-level brightness control
- Wi-Fi, HDMI output & up to 256GB TF storage
Complete this form to be emailed when this item is back in stock
Sign up for future discounts and new products

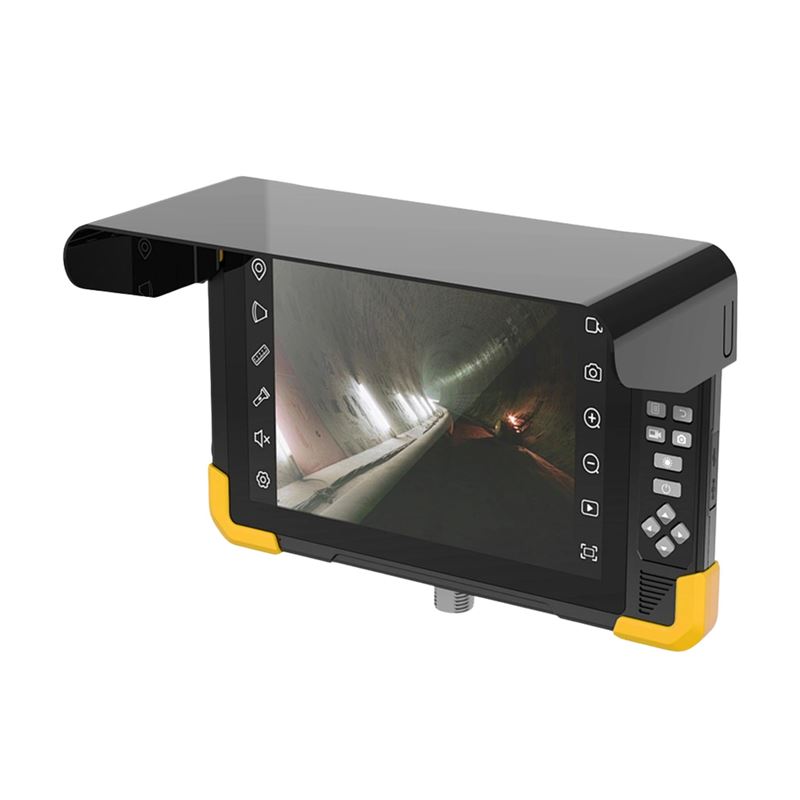

The 4K Dual-View 10.1" Underwater Inspection Camera System is a professional dual-camera solution engineered for contractors, plumbers, and engineers who demand precision and visibility in every inspection. This advanced system features two 5MP Sony stainless steel IP68 cameras, delivering simultaneous split-screen or individual view display on a crisp 10.1-inch IPS touch screen monitor.

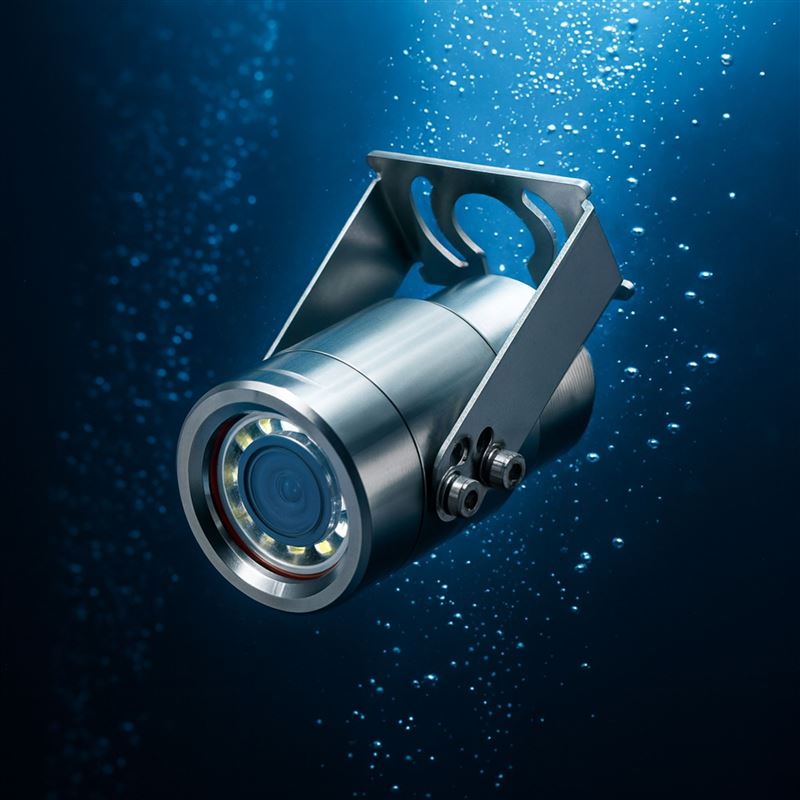

Each 34mm 316 stainless steel camera is equipped with a mounting stand for secure fixing, 12 high-brightness LEDs, and 8-level adjustable illumination control for optimal visibility in deep wells, sewers, tanks, and marine environments. With a 140° wide-angle lens and 0.0001Lux/F1.2 sensitivity, both cameras capture high-definition footage even in near-total darkness. The cable provided stands at 15m lengths - however this can be customised at customer request.
The monitor supports dual AHD 4K/2K/1080P/720P video input, HDMI output, and H.264 recording to TF cards up to 256GB. Integrated Wi-Fi allows live mobile viewing, while the 6500mAh rechargeable battery provides up to 5 hours of continuous use. Designed for harsh conditions and easy operation, this is the ideal dual-view underwater camera system for pipe inspection, deep well analysis, and industrial maintenance tasks where seeing more matters.
| Attribute | Value |

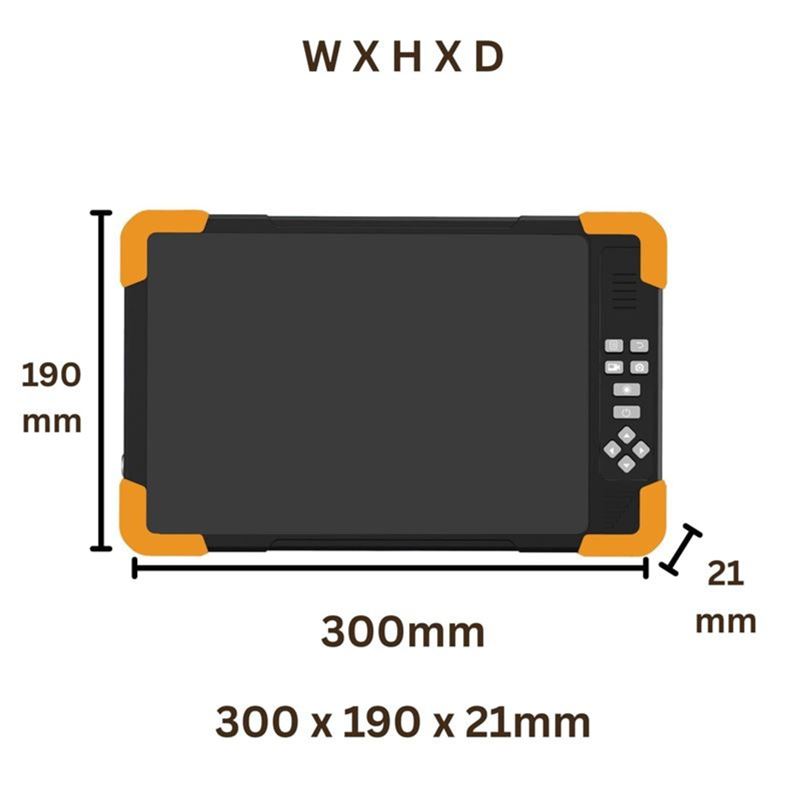

| Monitor Size | 10.1 inch IPS Touch Screen |
| Monitor Resolution | 1280 x 800 pixels |
| Video Input | Dual AHD 4K/2K/1080P/720P, CVBS |
| Video Output | HDMI 1080P |
| Recording Format | H.264, MP4 |

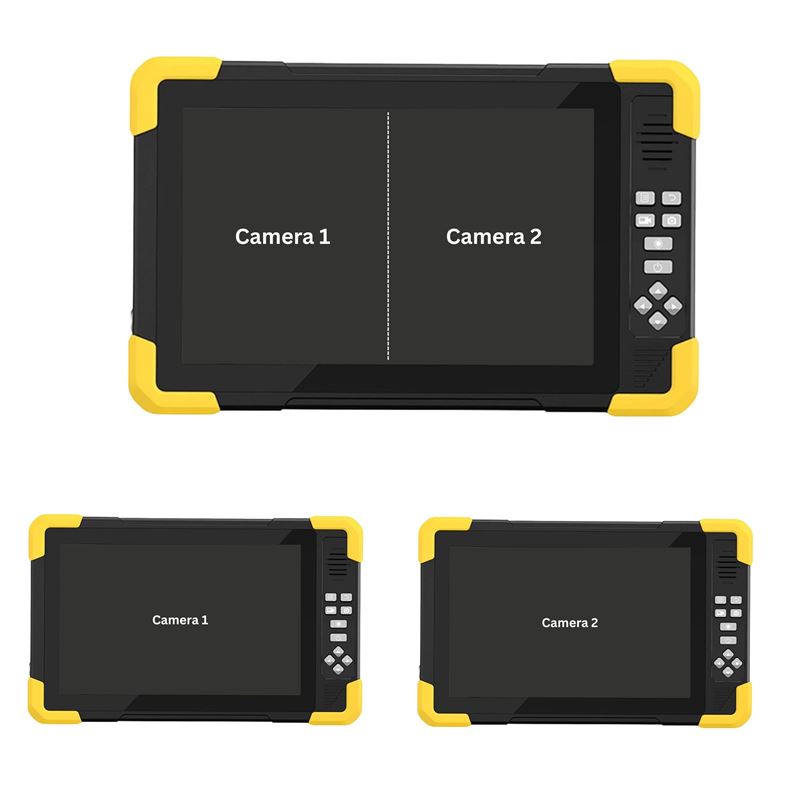

| Display Mode | Split Screen / Individual View |
| Storage | Up to 256GB TF Card |
| Battery | 6500mAh Li-ion (≥5 hours runtime) |
| Waterproof Rating (Camera) | IP68 |
| Camera Quantity | 2 x 5MP SONY CMOS Cameras |
| Camera Housing | 316 Stainless Steel, 34mm Diameter |
| Camera Mount | Adjustable Stand for Secure Fixing |
| Camera Lens | 3.6mm F1.2, 140° Wide Angle |
| Light Source | 12pcs LED per camera, 8-level brightness |
| Water Pressure Resistance | 0.0001Lux/F1.2 |
| Power Supply | Up to 100m (2MPa) |
| Area | Use |
| Deep Well Inspection | Dual-angle monitoring of boreholes and wells |
| Sewer & Drainage Systems | Simultaneous dual-view of pipes and joints |
| Industrial Tanks | Internal tank and weld seam inspection |
| Marine Engineering | Ship hull and underwater structure analysis |
| Aquaculture & Fisheries | Monitor fish farms and submerged habitats |
| Recreation | Swimming |
| Industrial | Dual View Inspection |
What’s in the Box

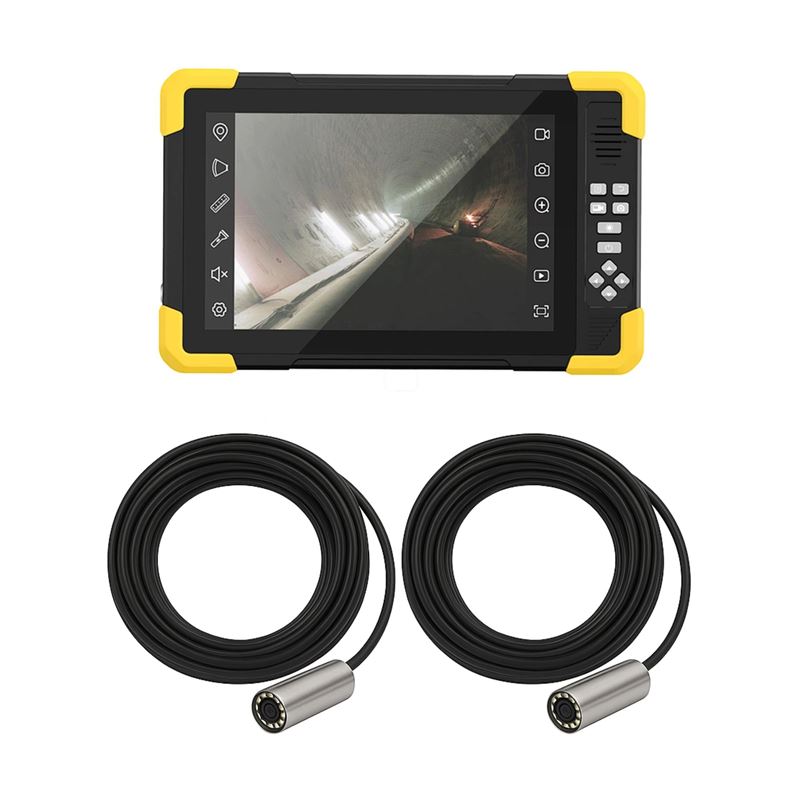

- 1 × 10.1" 4K IPS Touch Screen Monitor
- 2 × 5MP Sony Stainless Steel Underwater Cameras (34mm)
- 2 × Adjustable Mount Stands for Cameras
- 1 × HDMI Output Cable
- 1 × Power Adapter (DC 12V/2A)
