30m 4K Waterproof Drain Inspection Camera System

30m 4K Waterproof Drain Inspection Camera System

SKU: PD530M
Be the first to write a review Be the first to write a review
£0.00
Product Features:
  • Records detailed drain surveys in up to 4K resolution
  • Waterproof 13.3-inch touchscreen monitor and control box
  • Choice of 35mm PTZ, 32mm or compact 23mm camera
  • WiFi mobile transfer and Bluetooth keyboard text input
  • 30m cable with waterproof metre and foot counter

Price: £ 0.00
Sorry no stock available
  FREE UK Delivery
  Secure Payment

Sign up for future discounts and new products

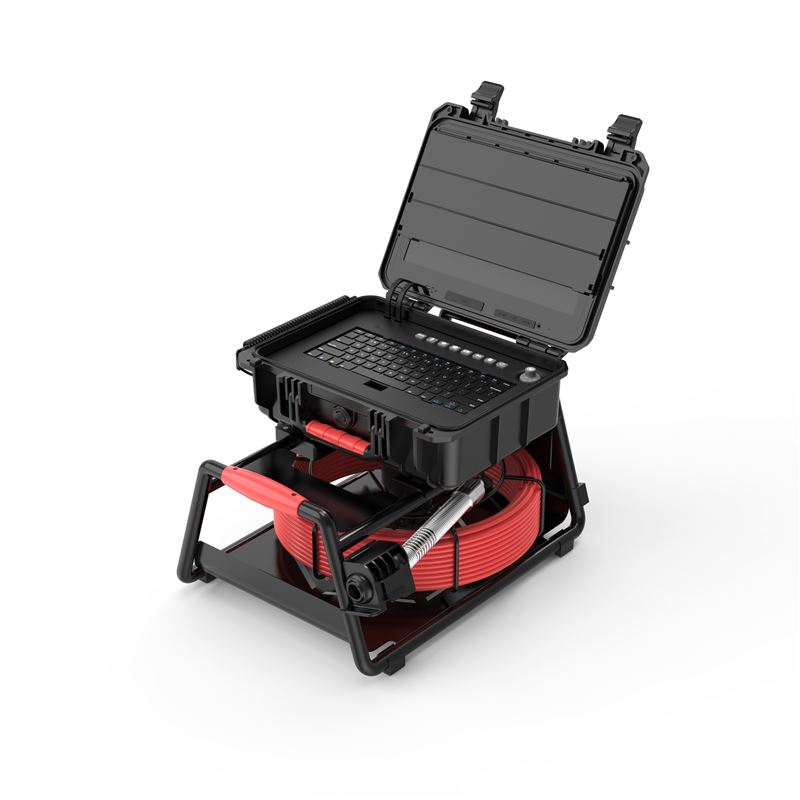

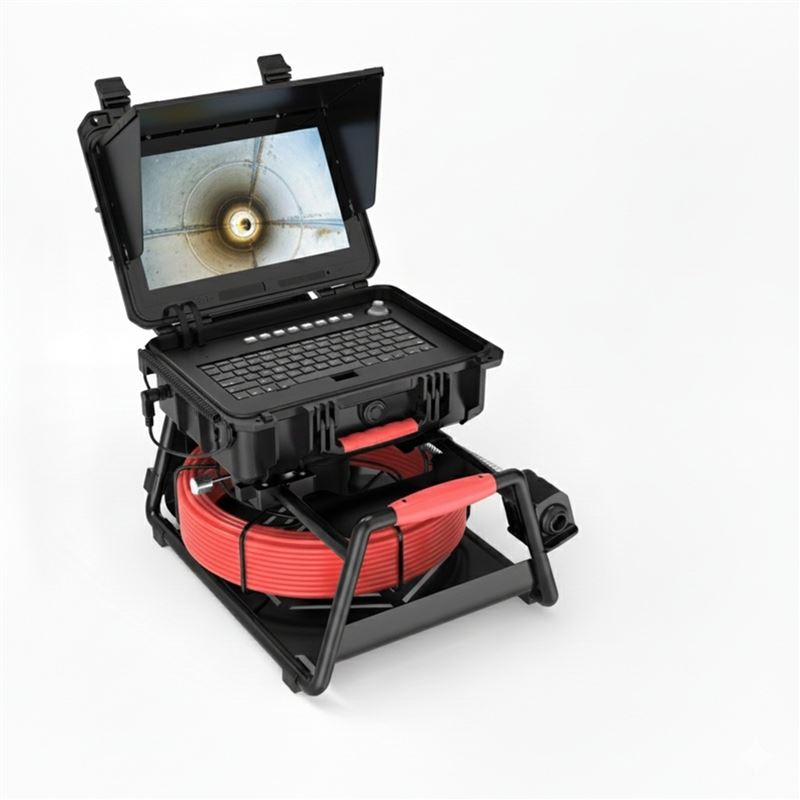

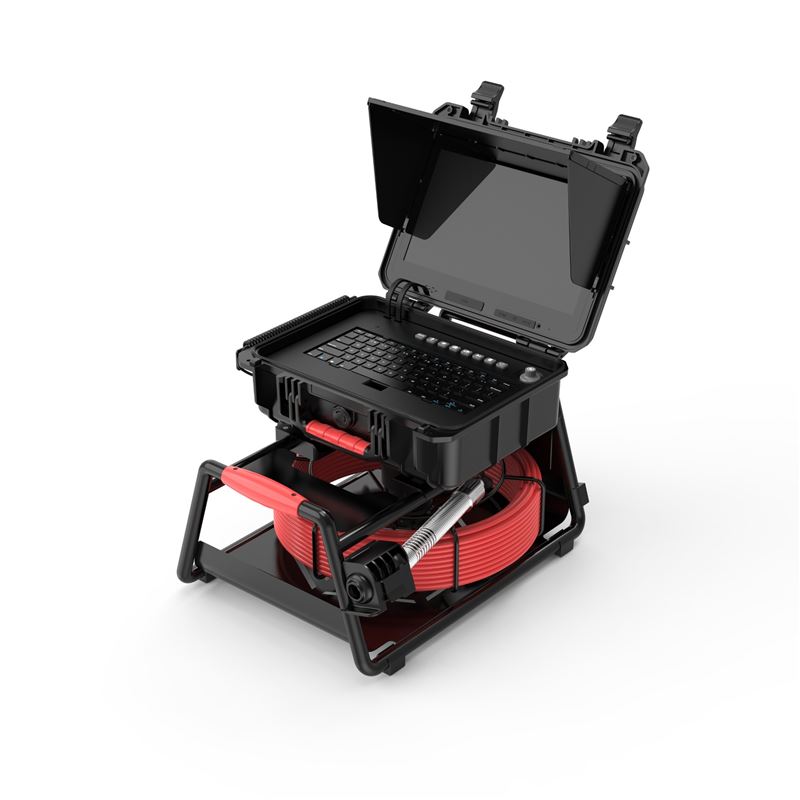

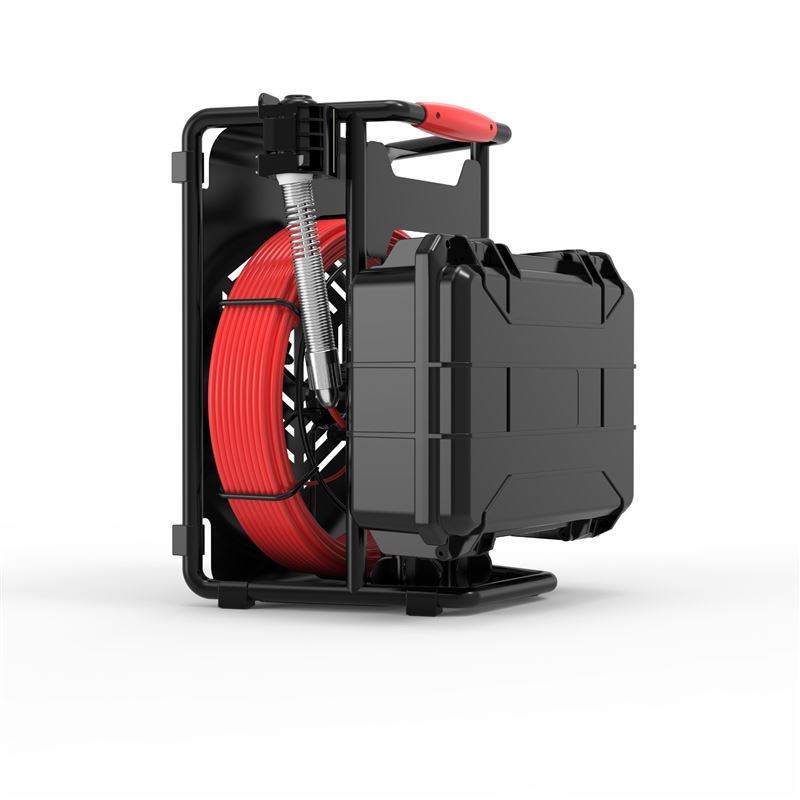

Capture detailed drainage surveys with this professional 30m 4K drain inspection camera system. Designed for drain engineers, plumbers, surveyors and maintenance teams, it combines high-resolution recording with a large 13.3-inch waterproof touchscreen monitor housed inside a protective toolbox-style control box.

Record footage at up to 4K resolution, review inspections on the 1920 x 1080 display and use 10x digital zoom to examine suspected defects. H.264 video compression, 1080p HDMI output and support for 128GB to 1TB USB or TF storage provide flexible recording and reporting options. Built-in WiFi also allows compatible recordings to be transferred wirelessly to a mobile device through the supporting app.

A Bluetooth wireless keyboard enables text to be entered directly onto inspection footage, helping operators identify locations, defects and survey details. The waterproof metre and foot counter displays the cable distance during inspections. A 96Wh rechargeable lithium battery provides up to 10 hours of operation, with an approximate charging time of five to six hours.

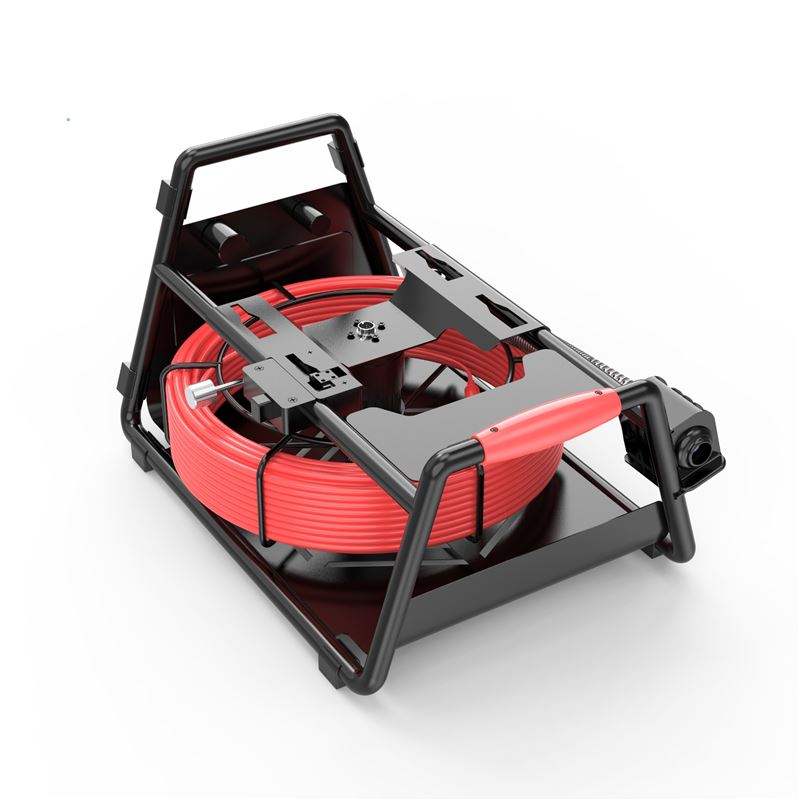

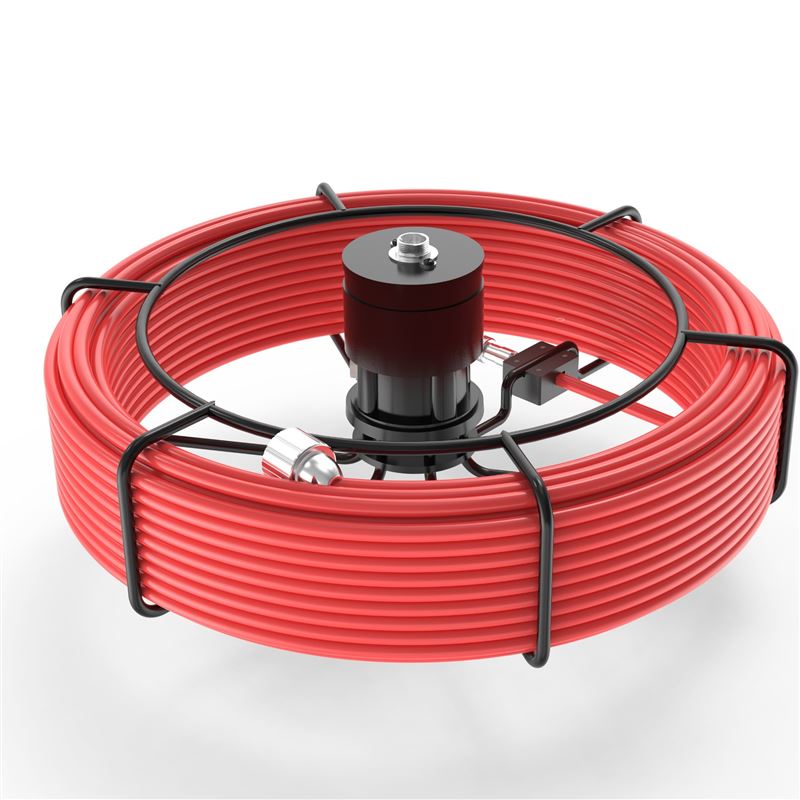

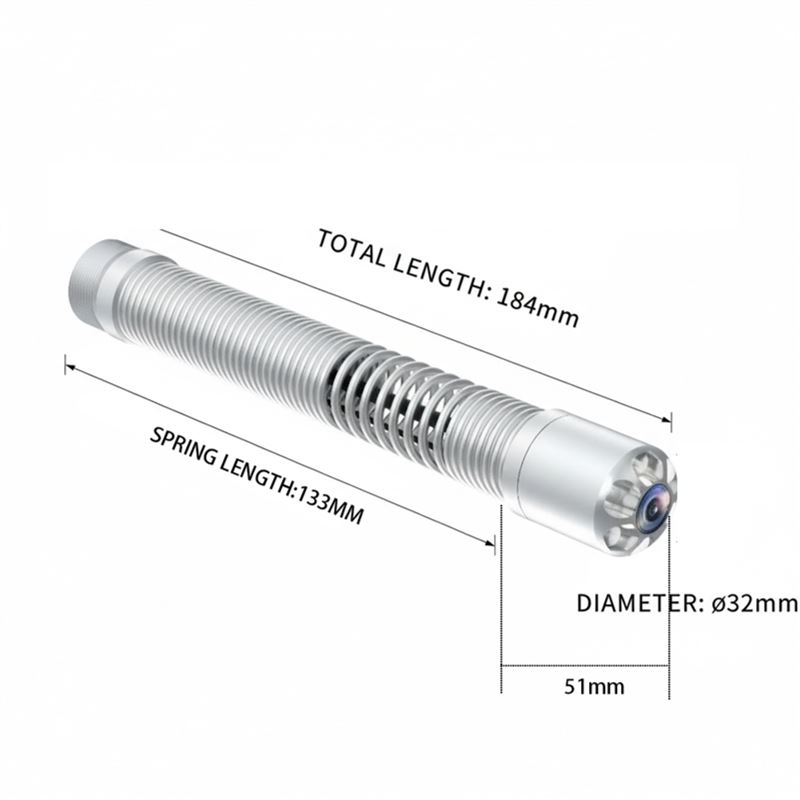

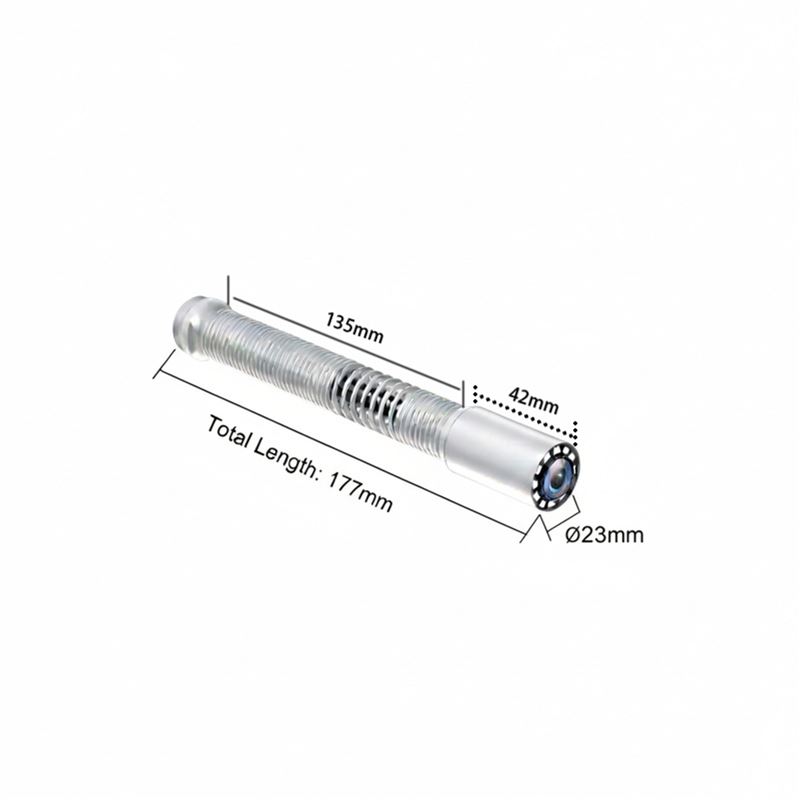

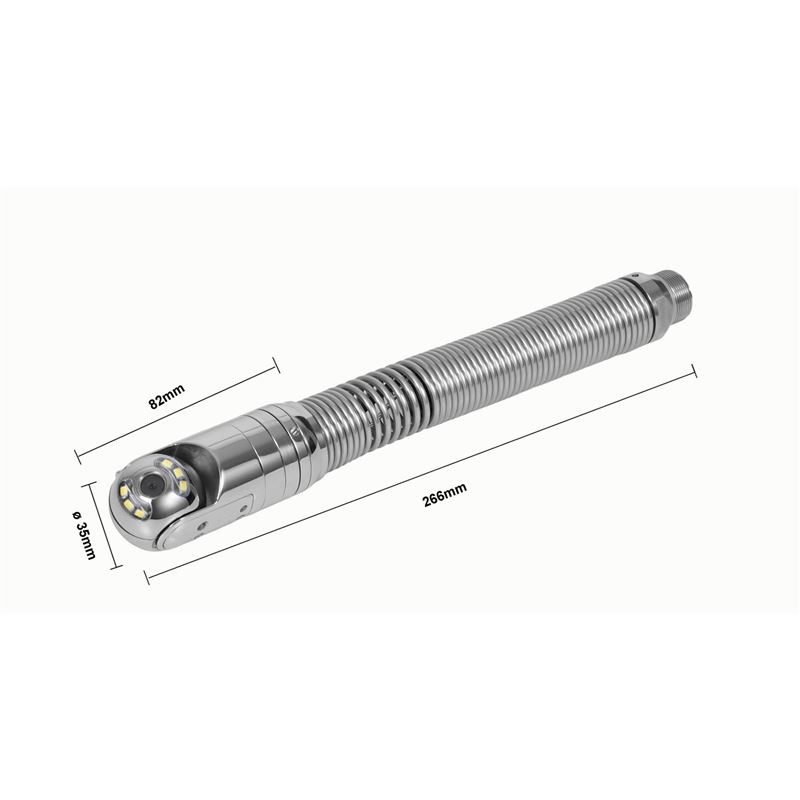

Choose from three interchangeable camera configurations. The 35mm PTZ camera provides 360° pan, 180° tilt and adjustable focus. Alternatively, select the compact 32mm or 23mm forward-view camera, both featuring self-levelling and an integrated 512Hz sonde. Every option uses a Sony image sensor, sapphire glass lens and IP68-rated camera construction. The supplied 30m cable can also be exchanged if your future inspection requirements change.

General FAQs

A. An inspection camera (borescope/endoscope) lets you view inside pipes, walls, engines, and other confined spaces without dismantling anything. Common uses: blocked drain diagnosis, cavity wall surveys, automotive engine checks, HVAC duct inspection, and equipment maintenance.
A. The probe and cable are waterproof (IP67/IP68 rated) for use in drains, tanks, and wet environments. The display unit is splash-resistant but not submersible. We also stock fully submersible models rated to 200m for marine and deep-well inspection.
A. We hold majority UK stock for immediate dispatch - no waiting weeks for shipments. You get expert technical advice from experienced professionals via phone, email, or WhatsApp (not offshore call centres reading scripts). Next-day delivery is free on all orders. When you're on a job site with a problem, you need answers fast - we provide them.
A. Our customers range from individual tradespeople to major UK organisations. We regularly supply drainage contractors, plumbers, electricians, building surveyors, and automotive technicians. We're also trusted by police forces, fire and rescue services, the Ministry of Defence, water authorities, local councils, and facilities management companies. We work with both end-users and resellers who need reliable UK stock and technical backup. Whether you're a sole trader or a procurement department ordering 50 units, you get the same expert service and support.
A. Prioritise: (1) Cable length - match it to your deepest inspection point plus 20%, (2) Probe diameter - smaller fits tighter spaces but may lack durability, (3) Image quality - 1080p minimum for professional work, (4) Screen size - 7"+ for field use, (5) Battery life - 6+ hours for all-day work. Waterproof rating (IP67/IP68 for the probe) is standard; ignore cameras without it.
A. Handheld models: 1-5m cables for domestic/light commercial use. Professional drain systems: 20-120m for deep pipework and underground surveys. If you need a custom length beyond 120m, contact us for bespoke solutions.
A. Most of our professional models include built-in recording to SD card or internal storage, allowing you to capture both video footage and still images. This is essential for creating customer reports, insurance claims, or keeping maintenance records. Entry-level models (under £50) typically offer live viewing only. Check individual product specifications or ask us if recording capability is critical for your work.
A. Dead-on-arrival or faulty units are swapped immediately - we don't make you wait for manufacturer processing. All equipment comes with a minimum 12-month manufacturer warranty. You have 30 days to return unused items in original packaging for a full refund (return postage at your cost). For warranty claims after 30 days, we handle the entire process with the manufacturer - you deal with us, not overseas support departments.
A. Yes. We provide VAT invoices, accept purchase orders from established accounts, and offer net-30 payment terms for approved businesses. Bulk orders (5+ units) qualify for tiered discounts - email info@ukinspectioncamera.co.uk with your requirements for a quote. Got a question about purchasing - call us for the quickiest response.
