2MP HD Weld Monitoring Camera System with 10.1 Inch Touch Screen

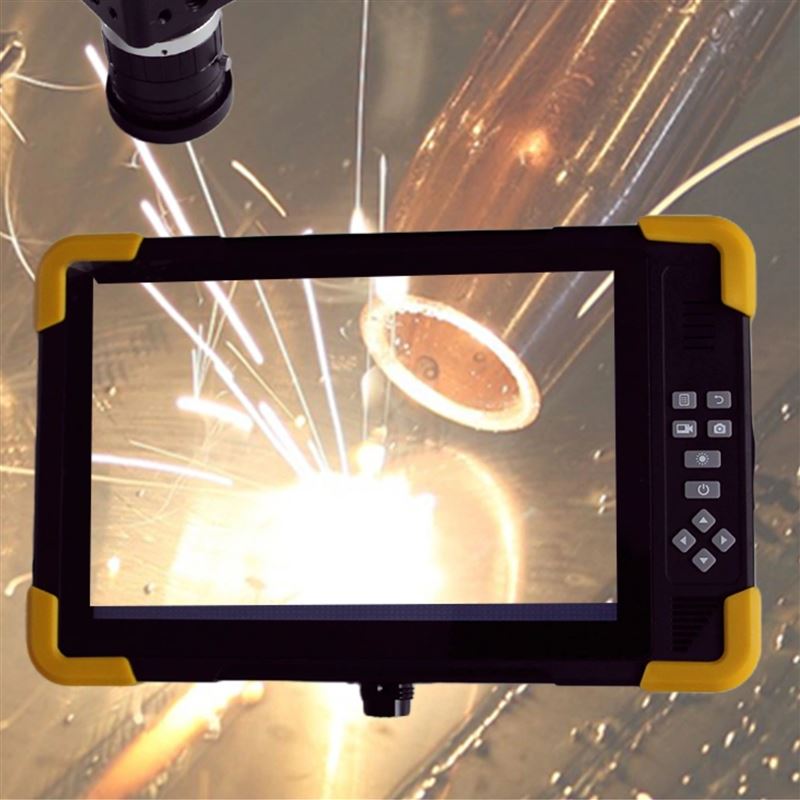

The 2MP HD Weld Monitor System is a professional-grade welding camera solution designed for real-time weld pool monitoring in demanding industrial environments. Featuring a high-performance Sony sensor with a 1920 x 1080 Full HD resolution, this system delivers exceptional image clarity, even in extreme lighting conditions, thanks to its super wide dynamic range of up to 140dB.

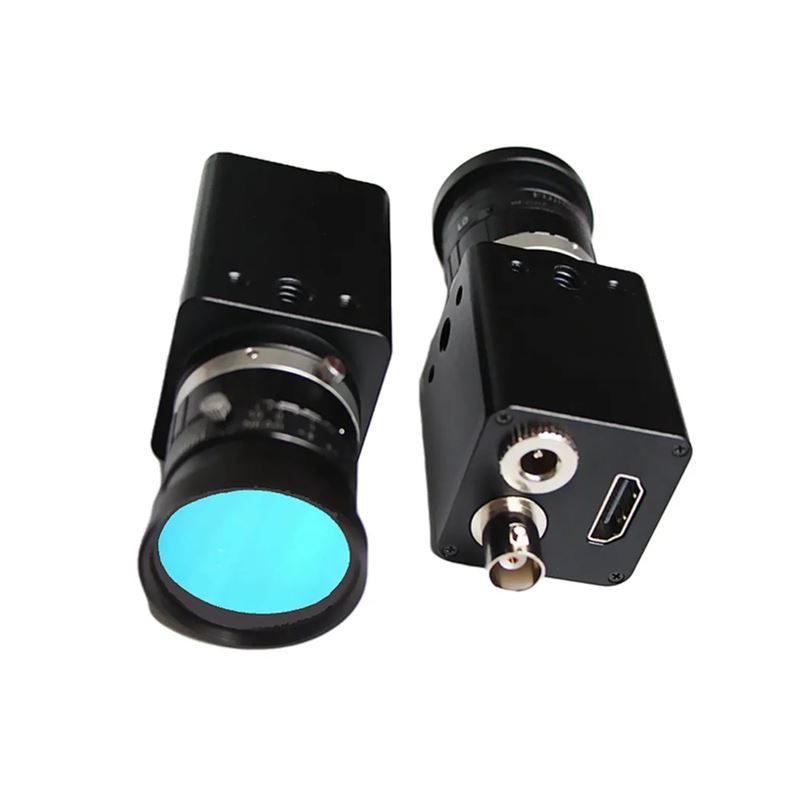

Engineered for TIG, MAG, laser and automated welding applications, the compact welding camera uses a robust C-mount lens with a 25mm focal length and adjustable aperture from F1.4 to F16. This allows precise visual control of the welding process, improving accuracy, reducing defects and minimising material waste. The rolling shutter design ensures smooth live video output with a signal-to-noise ratio of 70dB for clean, stable images.

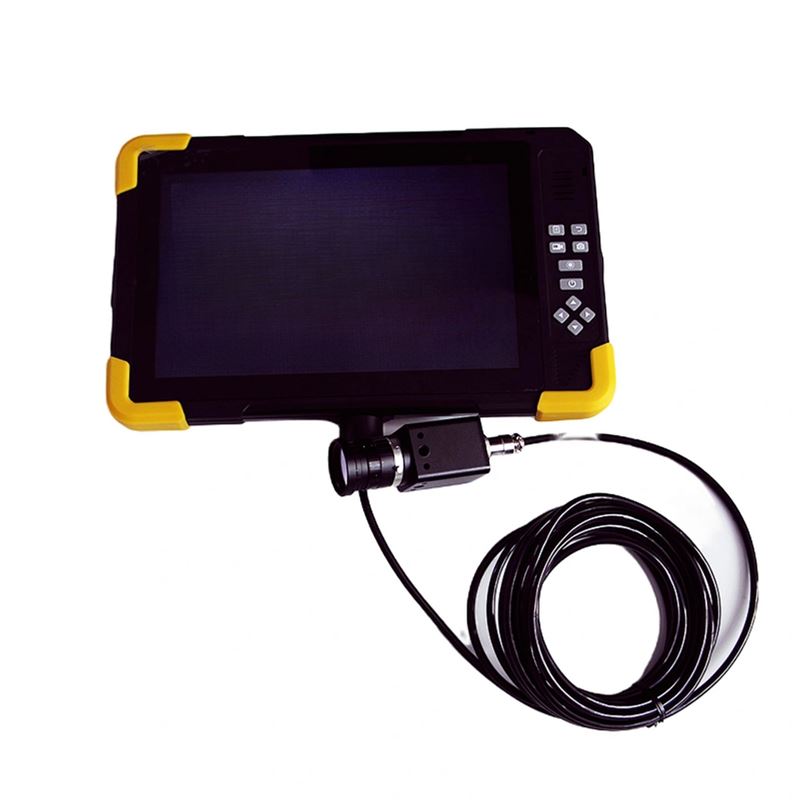

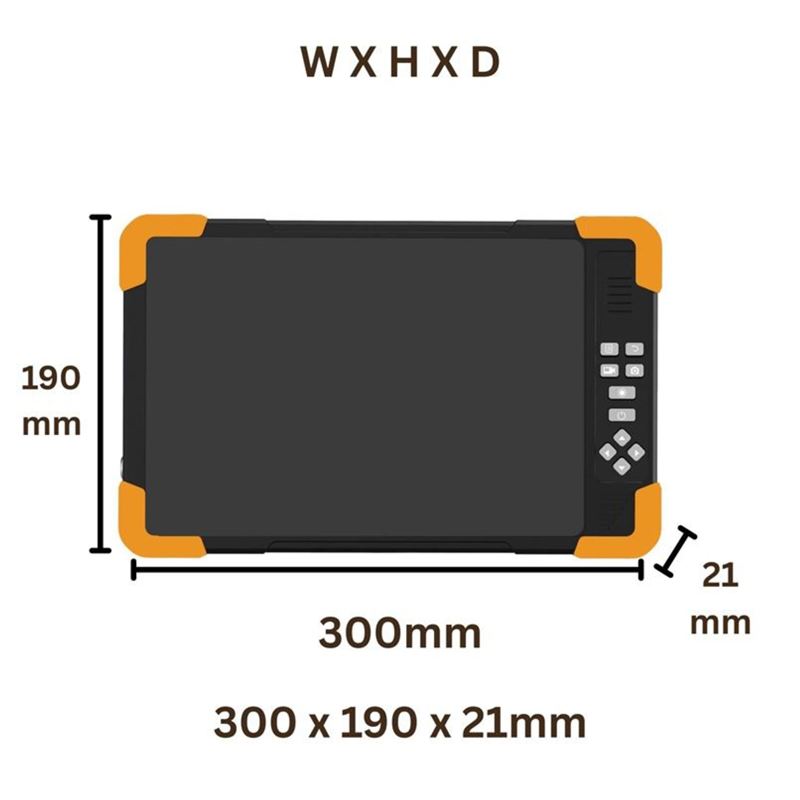

The system includes a 10.1 inch capacitive touch screen monitor with 1280 x 800 resolution, supporting simultaneous 1080P AHD and HDMI output for connection to larger displays. Built-in recording functionality with H.265 compression enables efficient storage of images and videos on a TF card up to 64GB, ideal for quality documentation and process analysis.

Designed for 24/7 industrial use, the lightweight 140g camera features a durable housing and low power consumption. For safety and longevity, the camera must be installed behind a clear protective screen to prevent damage from spatter and heat. This plug and play weld monitoring system is an ideal solution for modern automated and robotic welding environments.

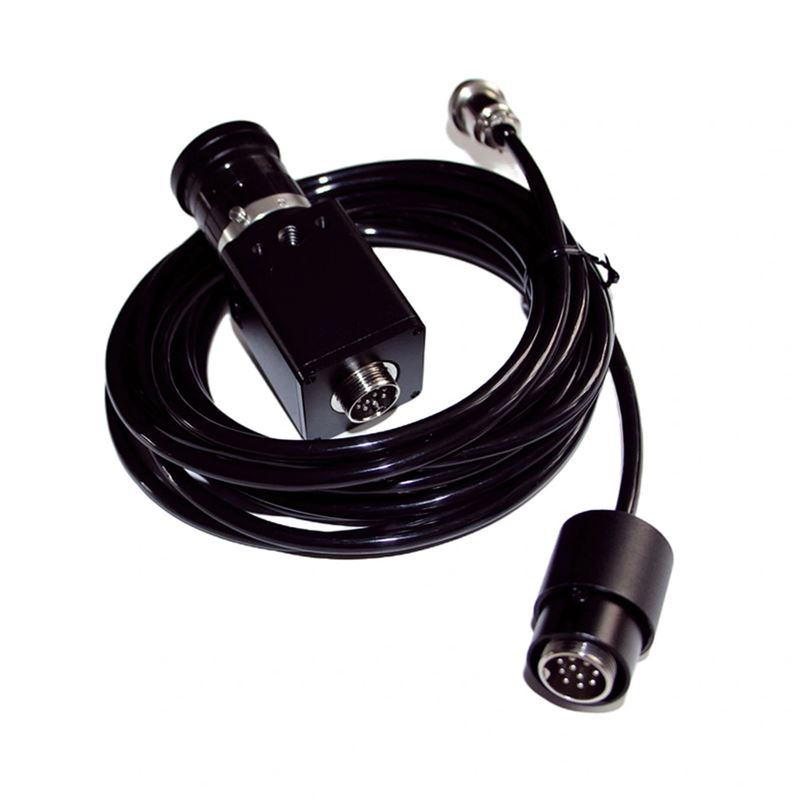

By default - the cable length provided is 5m - but if you need to customise this - please give us a call.
